Valve Body, A/T
Valve Body, A/T

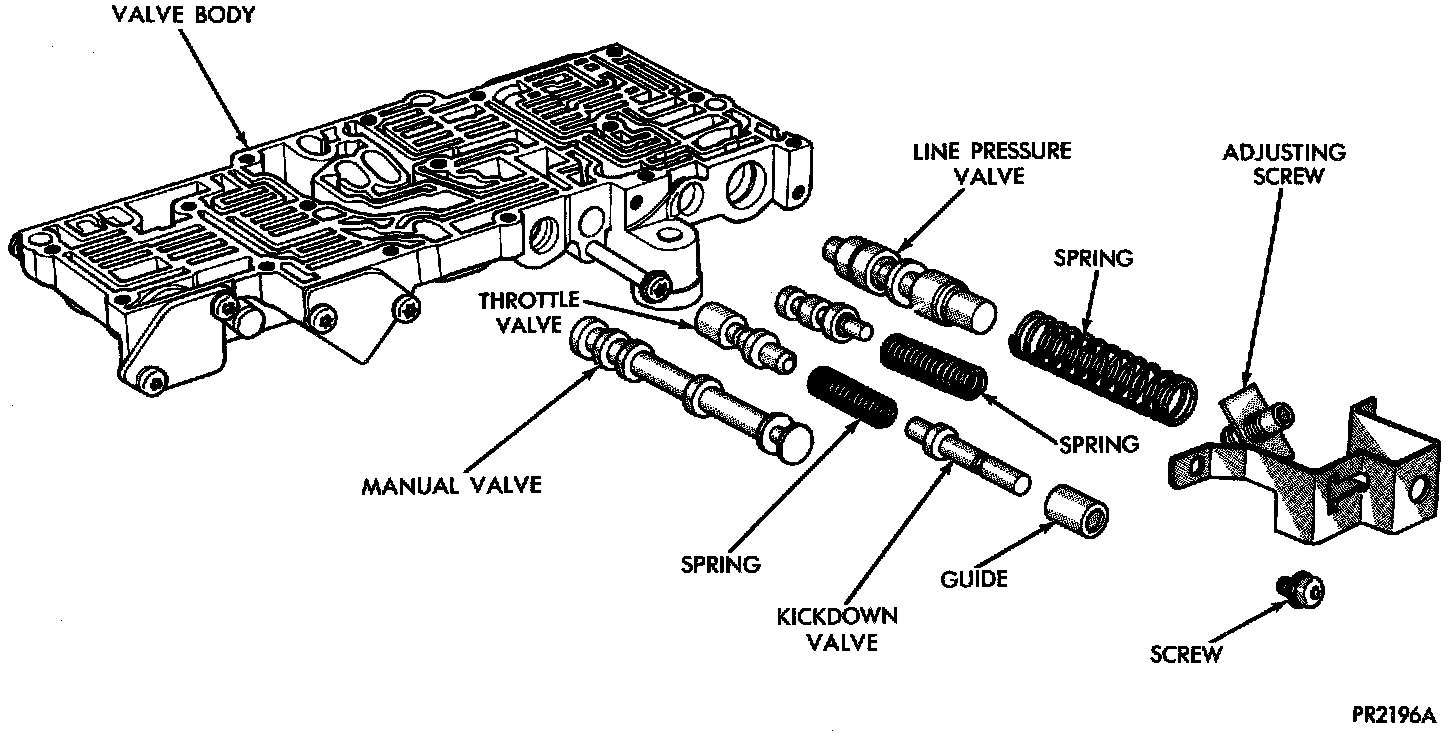

Pressure Regulators And Manual Controls:

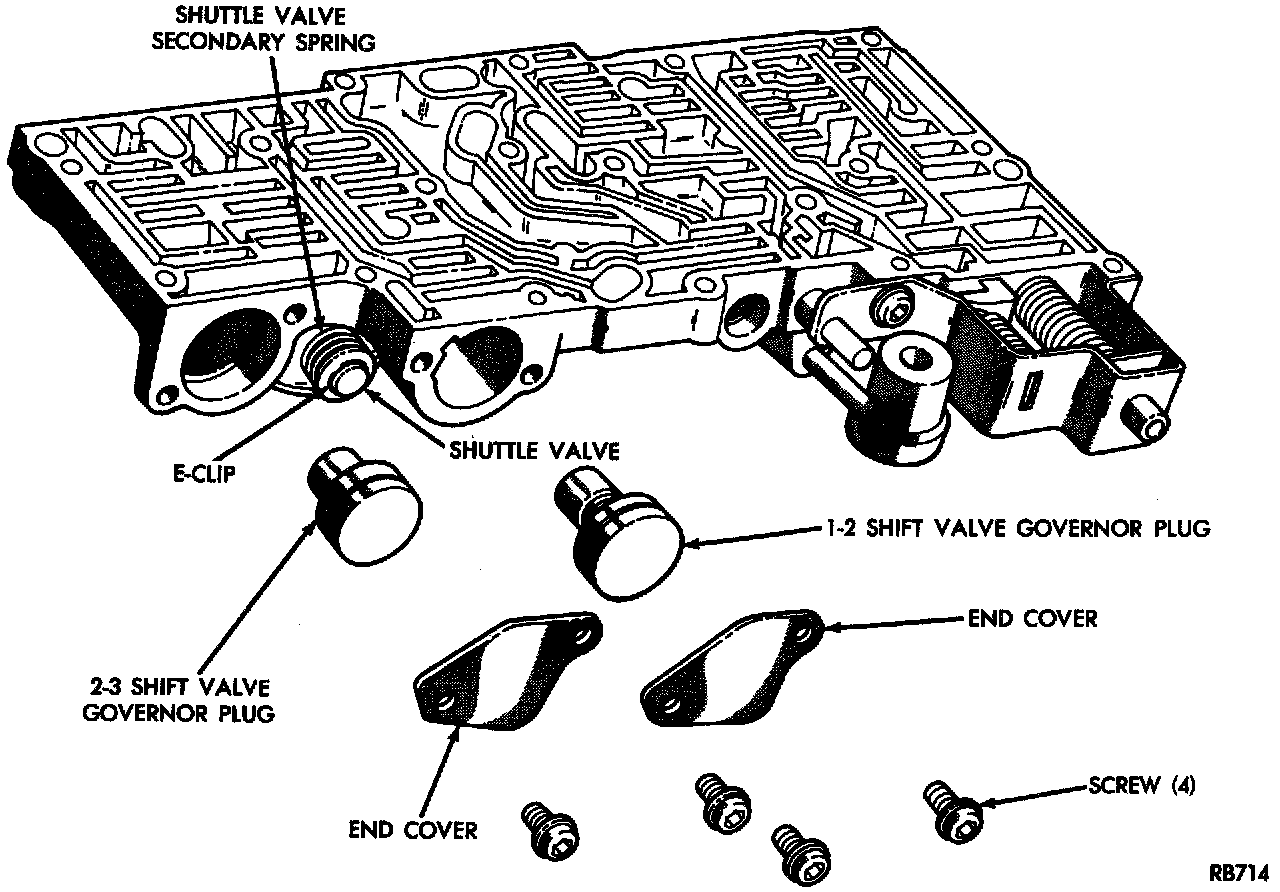

Governor Plugs:

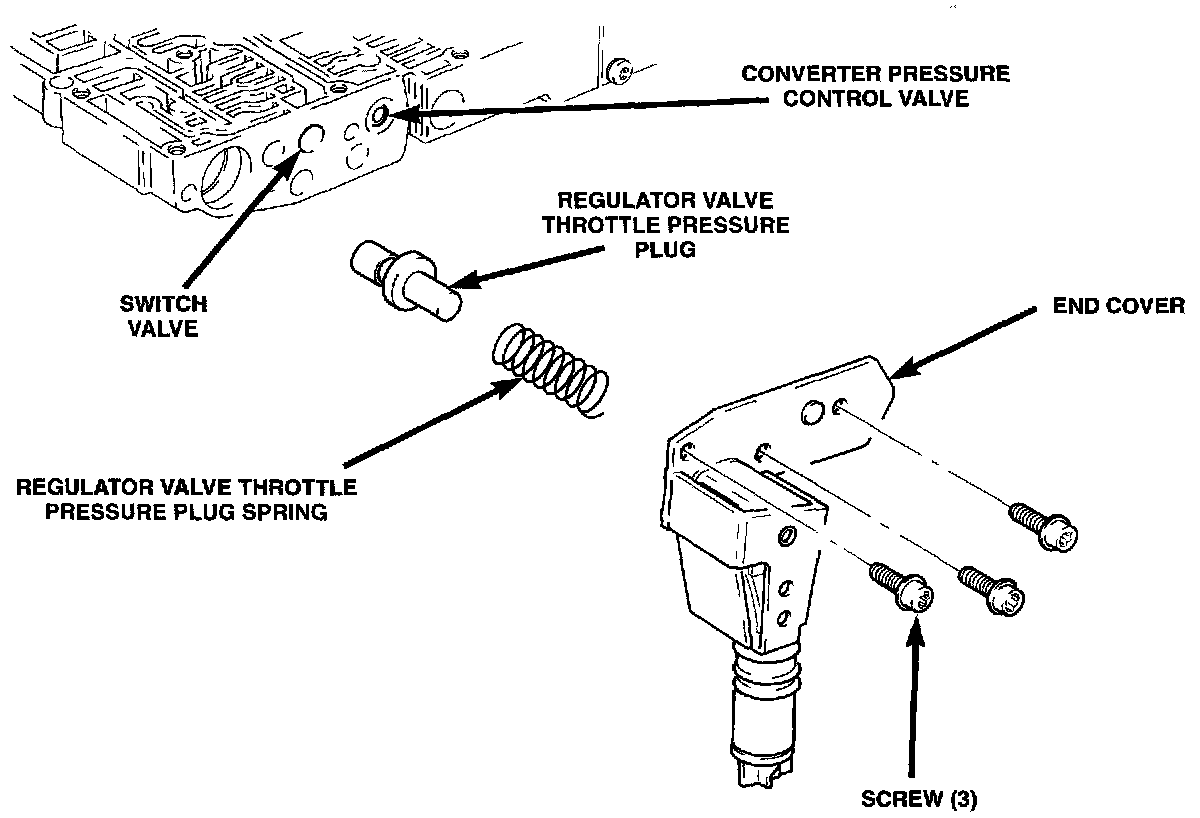

Pressure Regulator Valve Plugs:

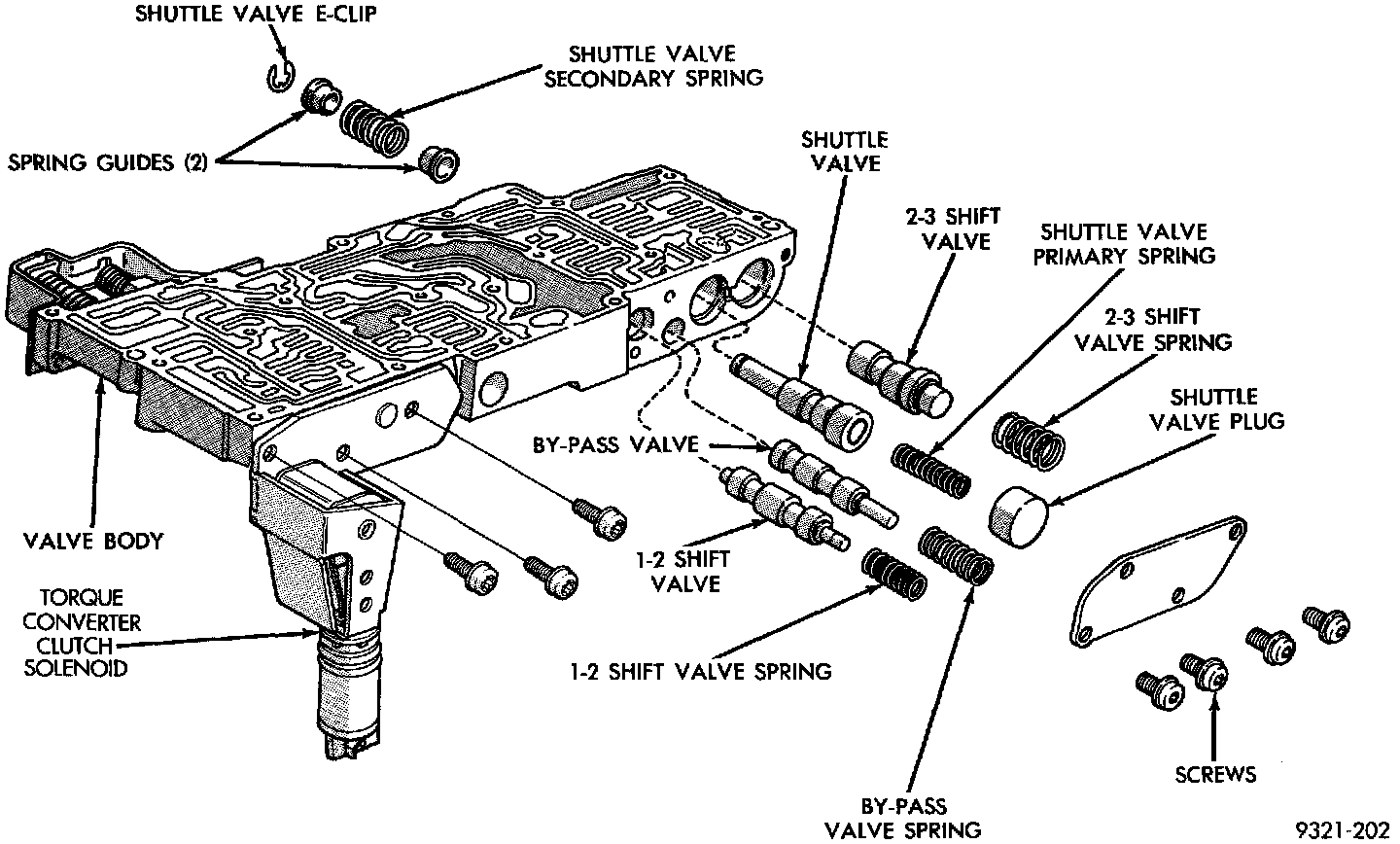

Shift Valves And Shuttle Valve:
