Wiring Diagrams

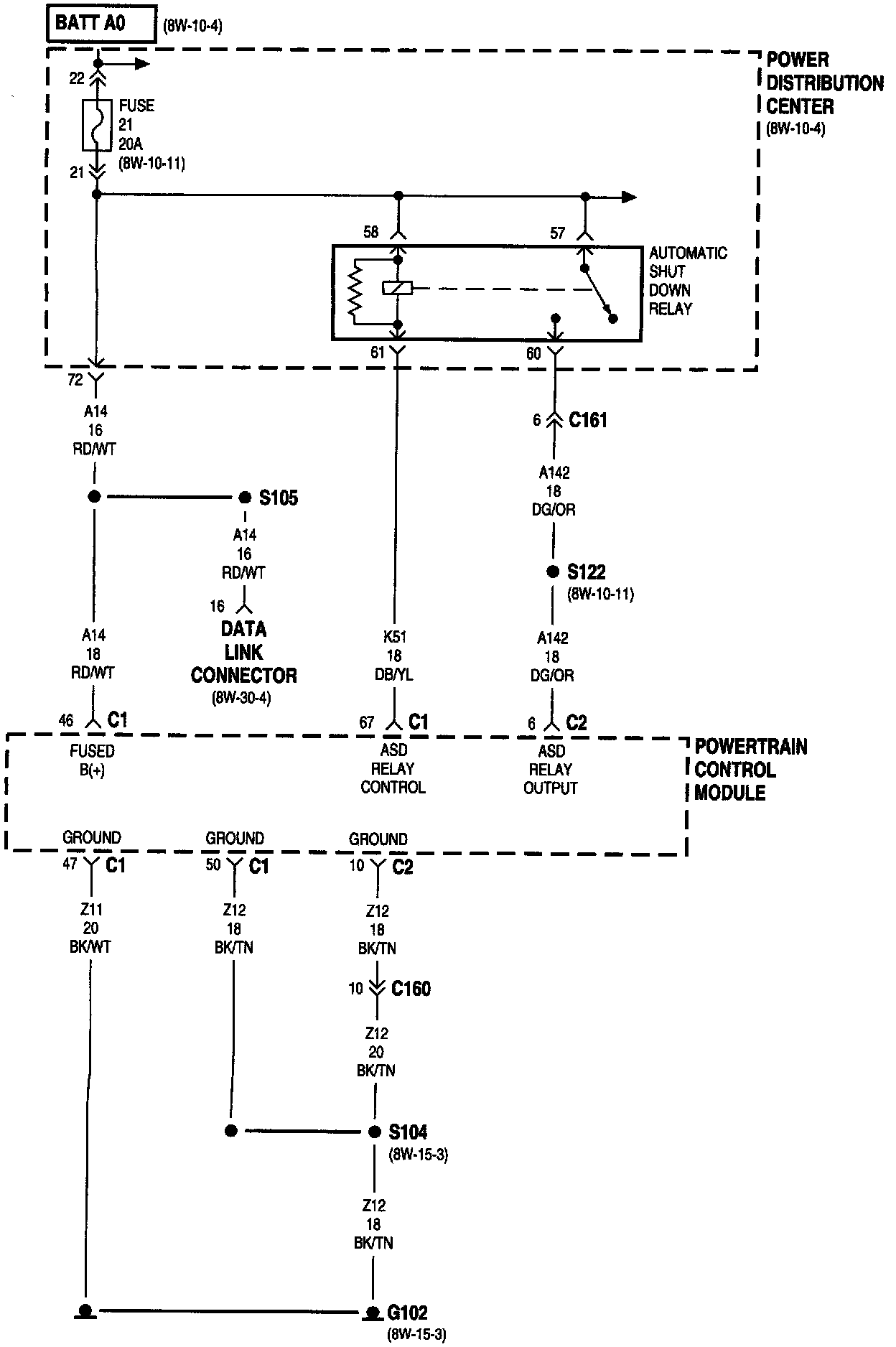

Fuel/Ignition Systems (Part 1 Of 11):

Automatic Shut Down Relay
Data Link Connector
Fuse 21 (PDC)
G102
Power Distribution Center
Powertrain Control Module

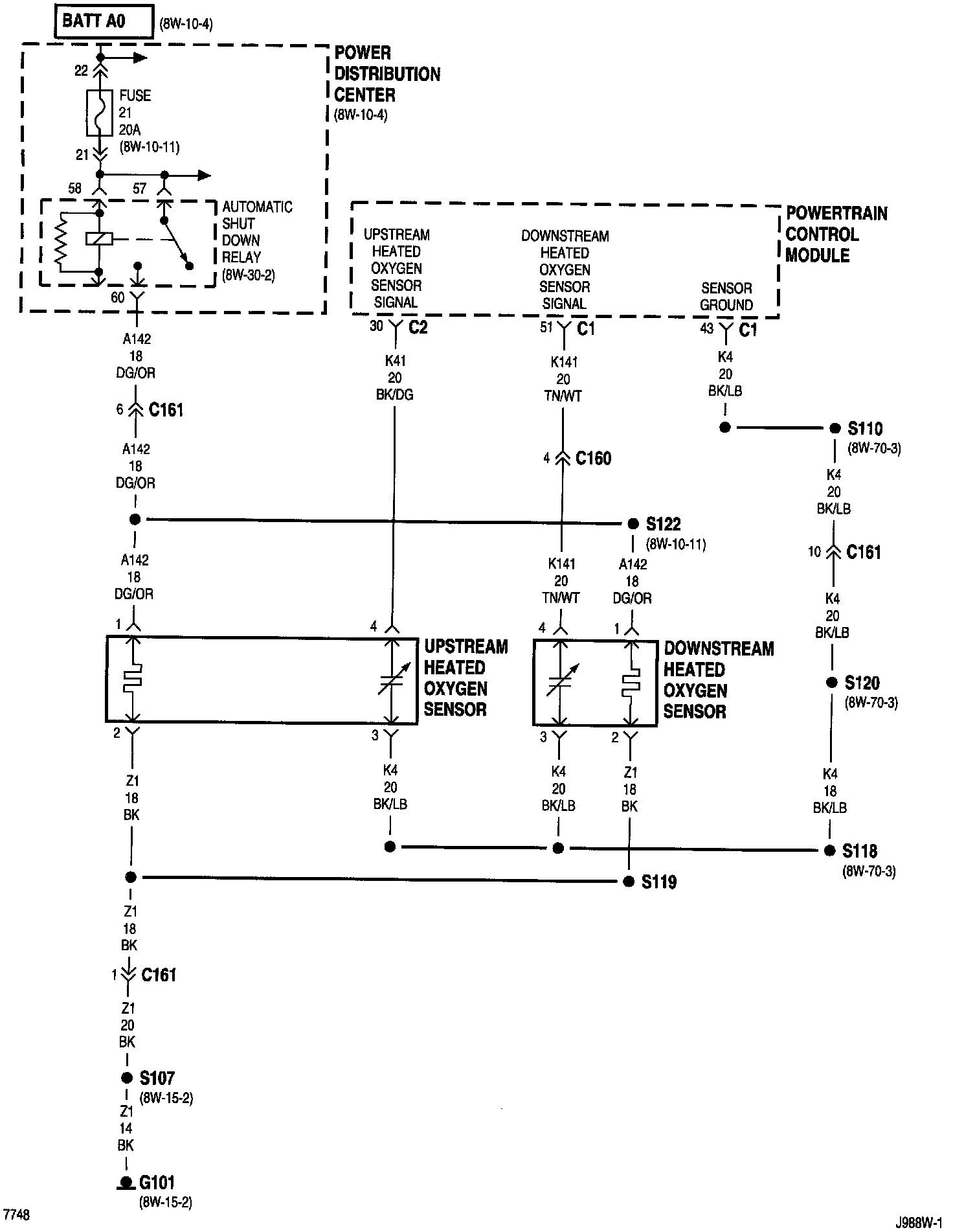

Fuel/Ignition Systems (Part 2 Of 11):

Automatic Shut Down Relay
Downstream Heated Oxygen Sensor
Fuse 21 (PDC)
G101
Power Distribution Center
Powertrain Control Module
Upstream Heated Oxygen Sensor

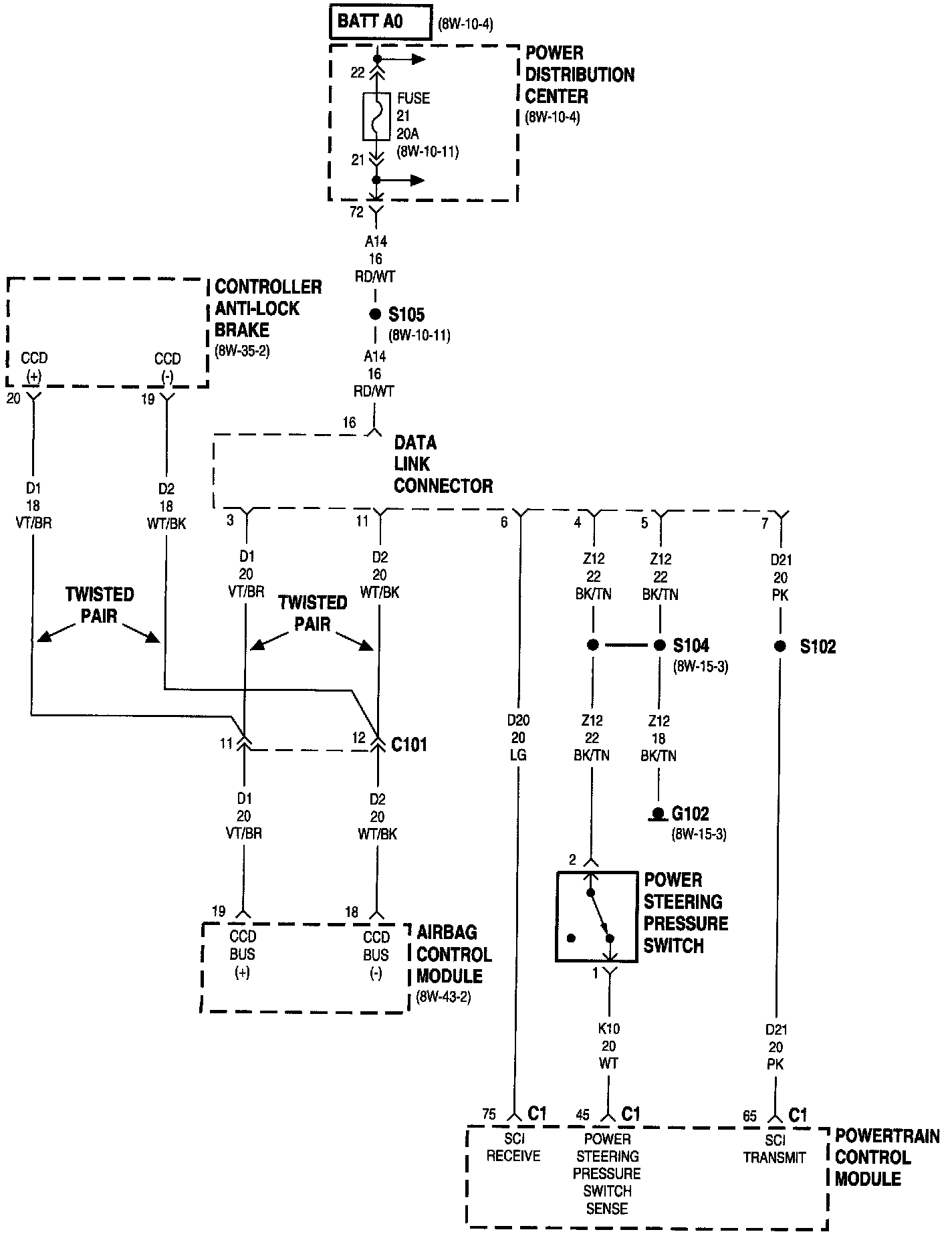

Fuel/Ignition Systems (Part 3 Of 11):

Airbag Control Module
Controller Anti-Lock Brake
Data Link Connector
Fuse 21 (PDC)
G102
Power Distribution Center
Powertrain Control Module
Power Steering Pressure Switch

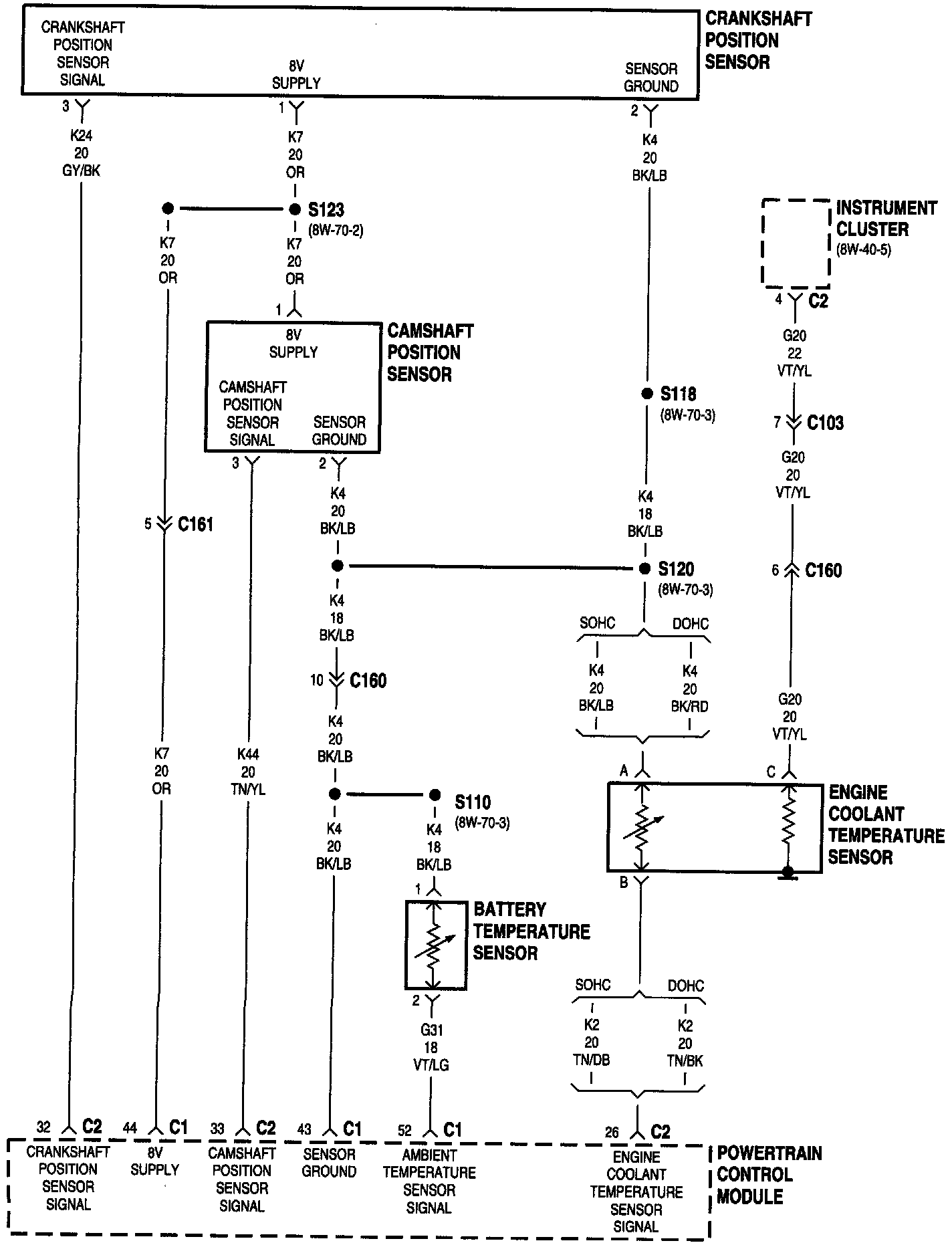

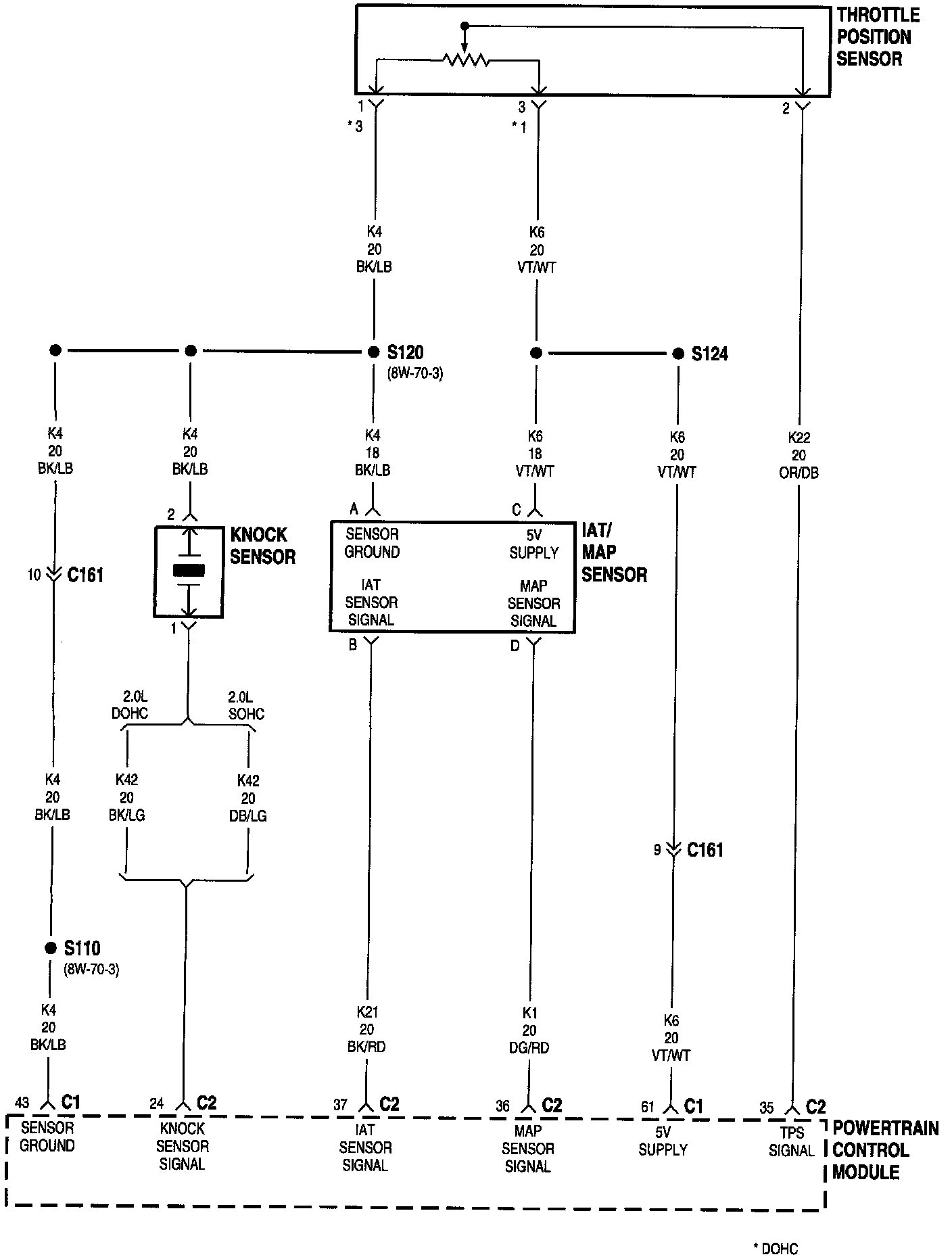

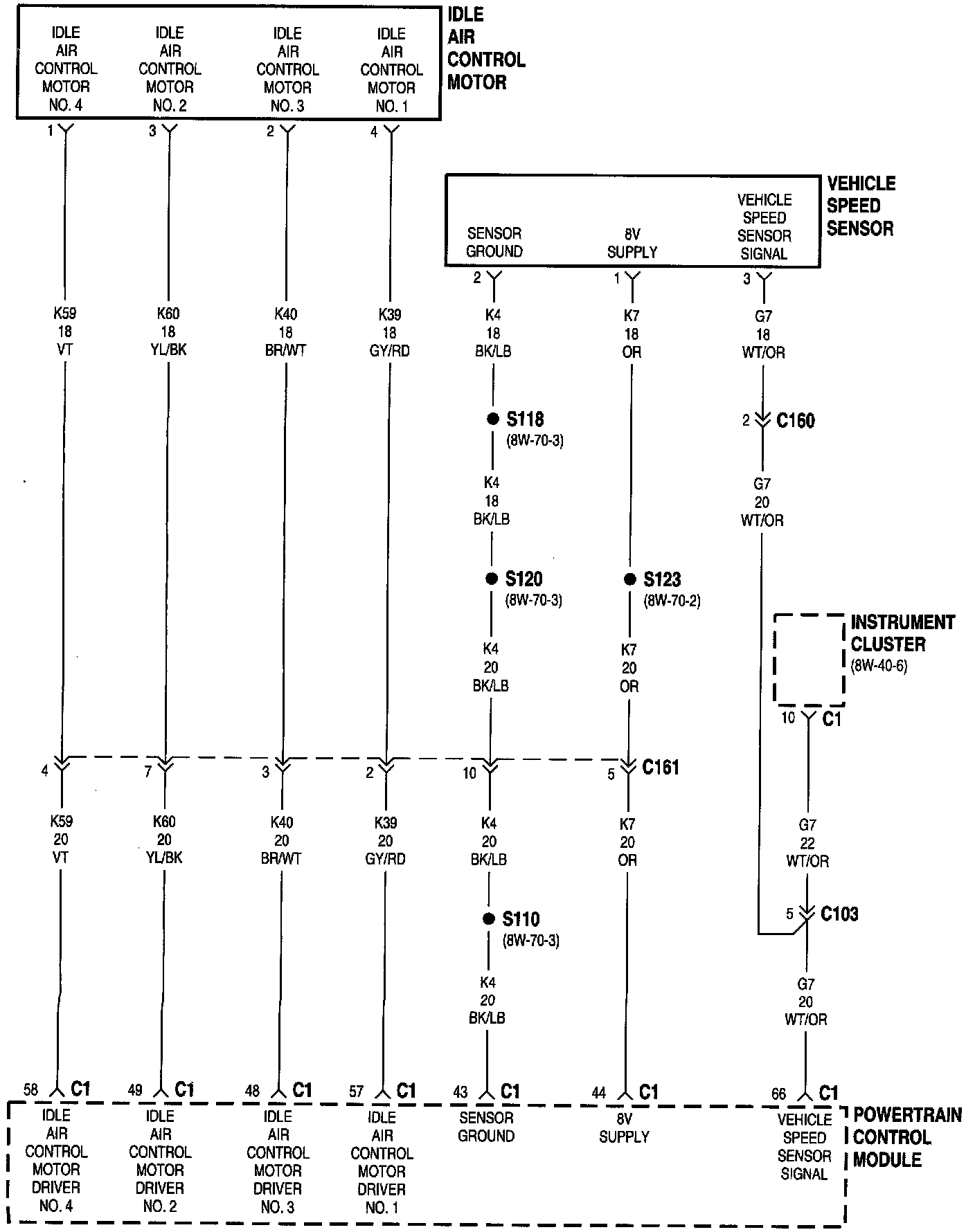

Fuel/Ignition Systems (Part 7 Of 11):

Idle Air Control Motor
Instrument Cluster
Powertrain Control Module
Vehicle Speed Sensor

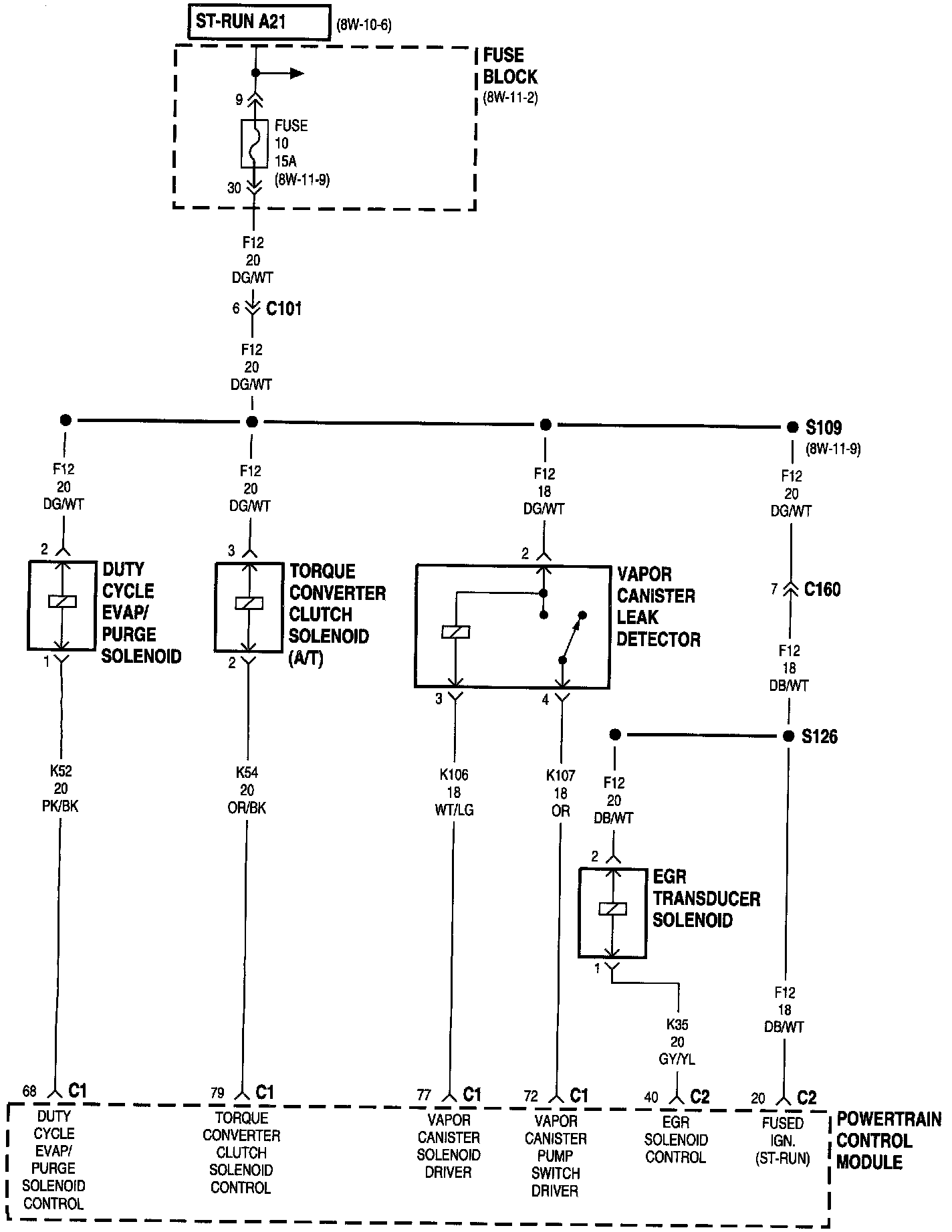

Fuel/Ignition Systems (Part 8 Of 11):

Duty Cycle Evap/Purge Solenoid
[1][2]EGR Transducer Solenoid
Fuse 10 (FB)
Fuse Block
Powertrain Control Module
Torque Converter Clutch Solenoid
Vapor Canister Leak Detector

Fuel/Ignition Systems (Part 9 Of 11):

Fuse 10 (FB)
Fuse 21 (PDC)
Fuse Block
G303
Instrument Cluster
Powertrain Control Module
Power Distribution Center

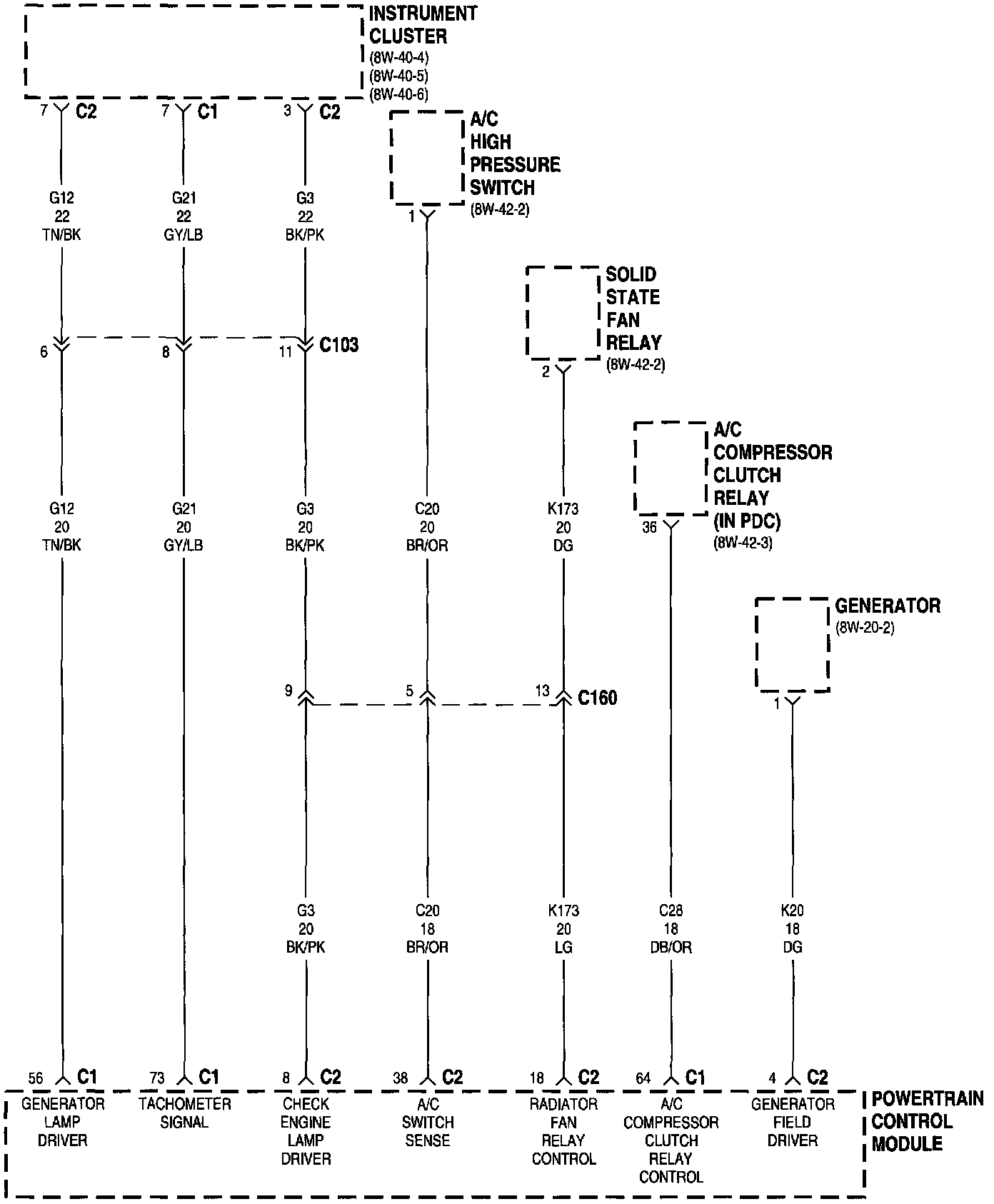

Fuel/Ignition Systems (Part 10 Of 11):

A/C Compressor Clutch Relay
A/C High Pressure Switch
Generator
Instrument Cluster
Powertrain Control Module
Solid State Fan Relay

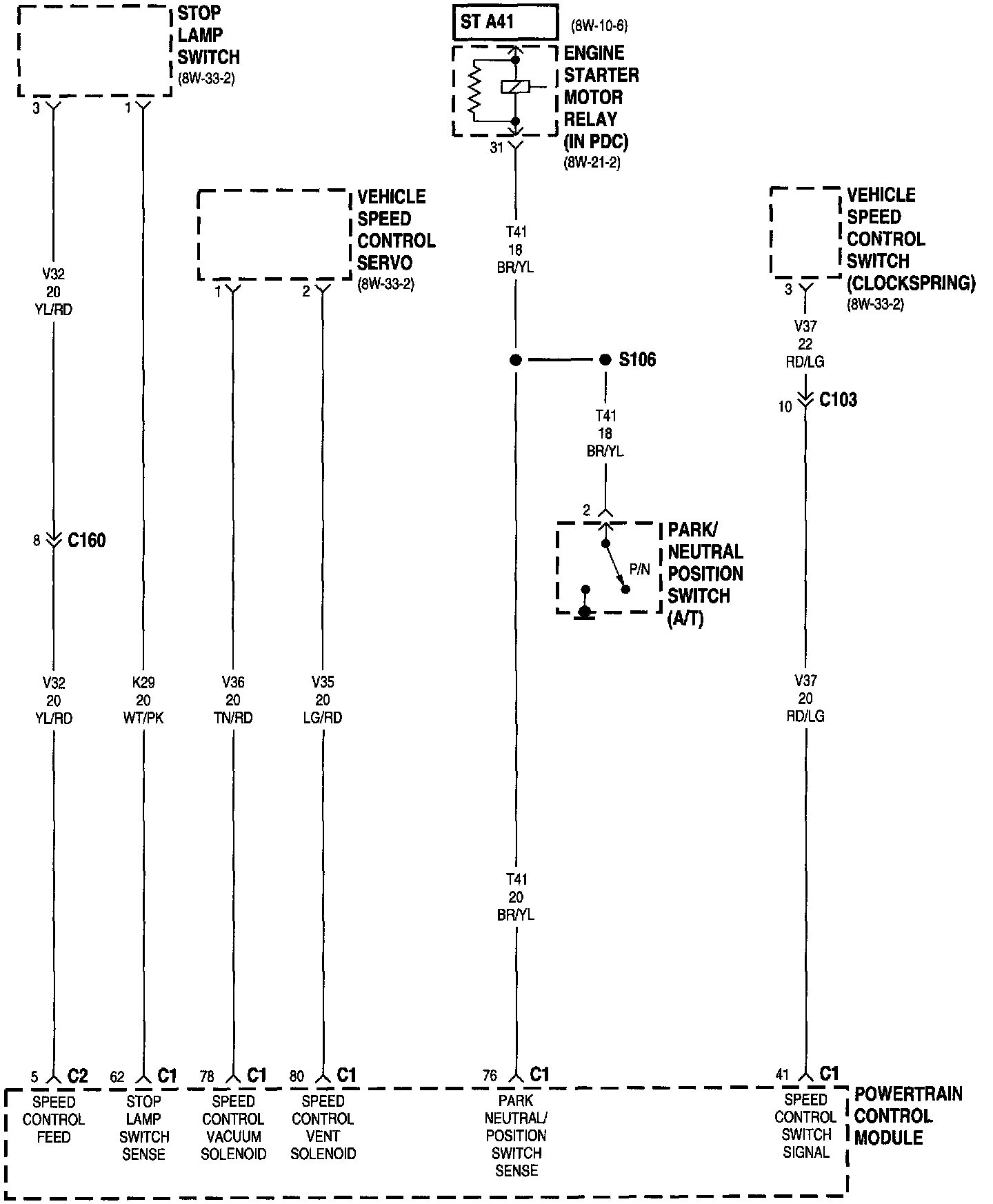

Fuel/Ignition Systems (Part 11 Of 11):

Engine Starter Motor Relay
Park Neutral Position Switch
Powertrain Control Module
Stop Lamp Switch
Vehicle Speed Control Servo
Vehicle Speed Control Switch

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
