Ground Distribution

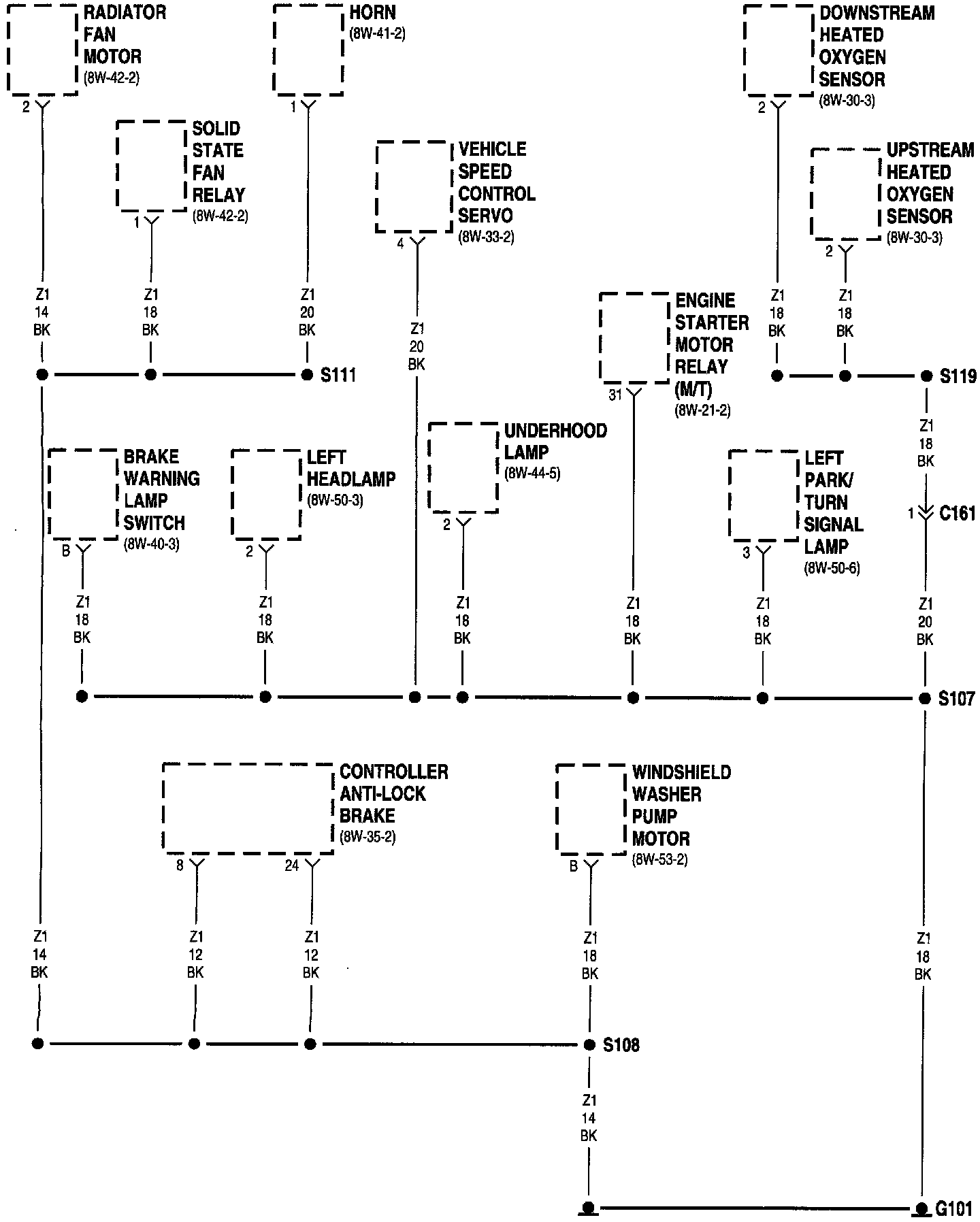

Ground Distribution (Part 1 Of 8):

Brake Warning Lamp Switch
Controller Anti-Lock Brake
Downstream Heated Oxygen Sensor
Engine Starter Motor Relay
G101
Horn
Left Headlamp
Left Park/Turn Signal Lamp
Radiator Fan Motor
Solid State Fan Relay
Underhood Lamp
Upstream Heated Oxygen Sensor
Vehicle Speed Control Servo
Windshield Washer Pump Motor

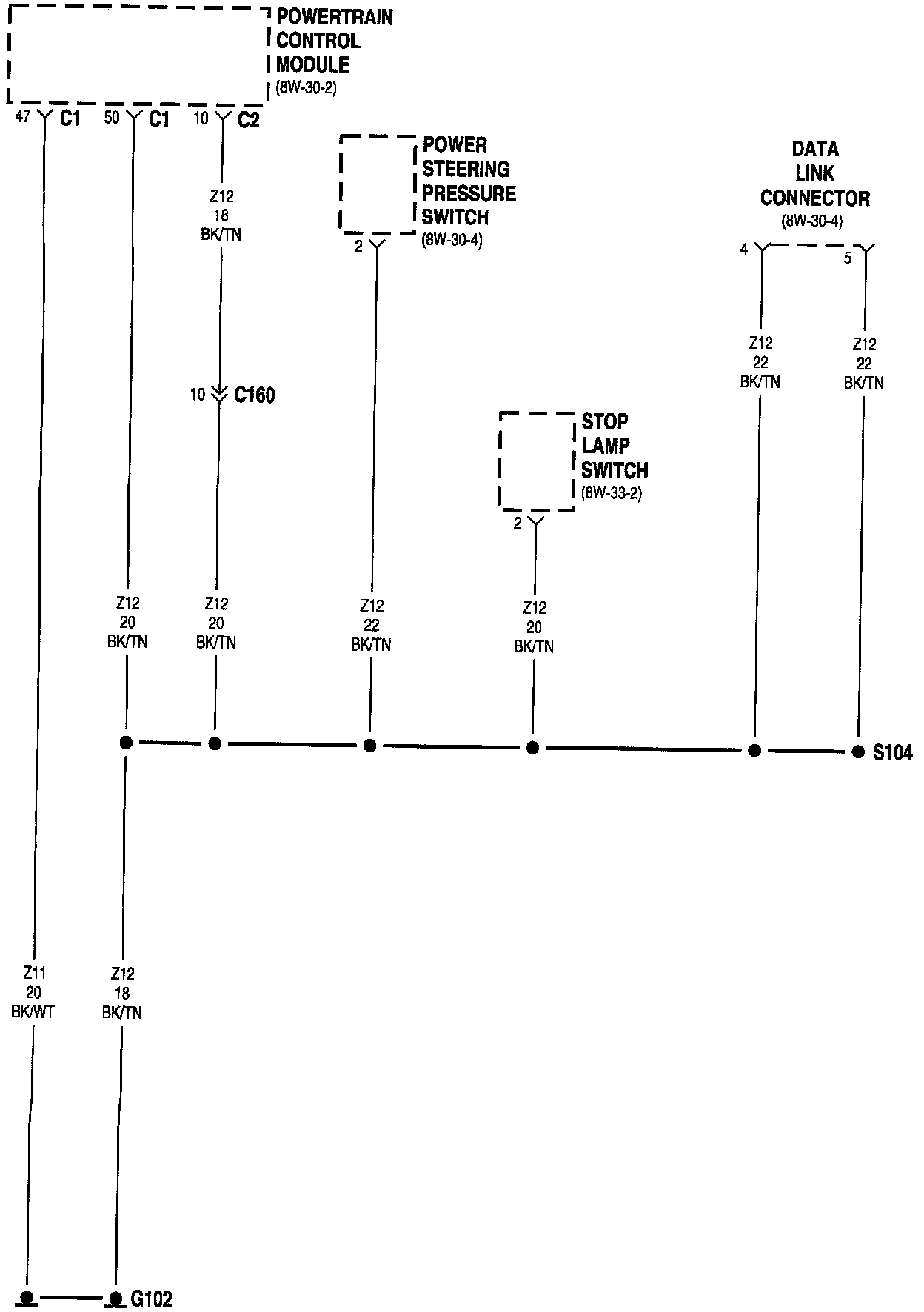

Ground Distribution (Part 2 Of 8):

Data Link Connector
G102
Powertrain Control Module
Stop Lamp Switch

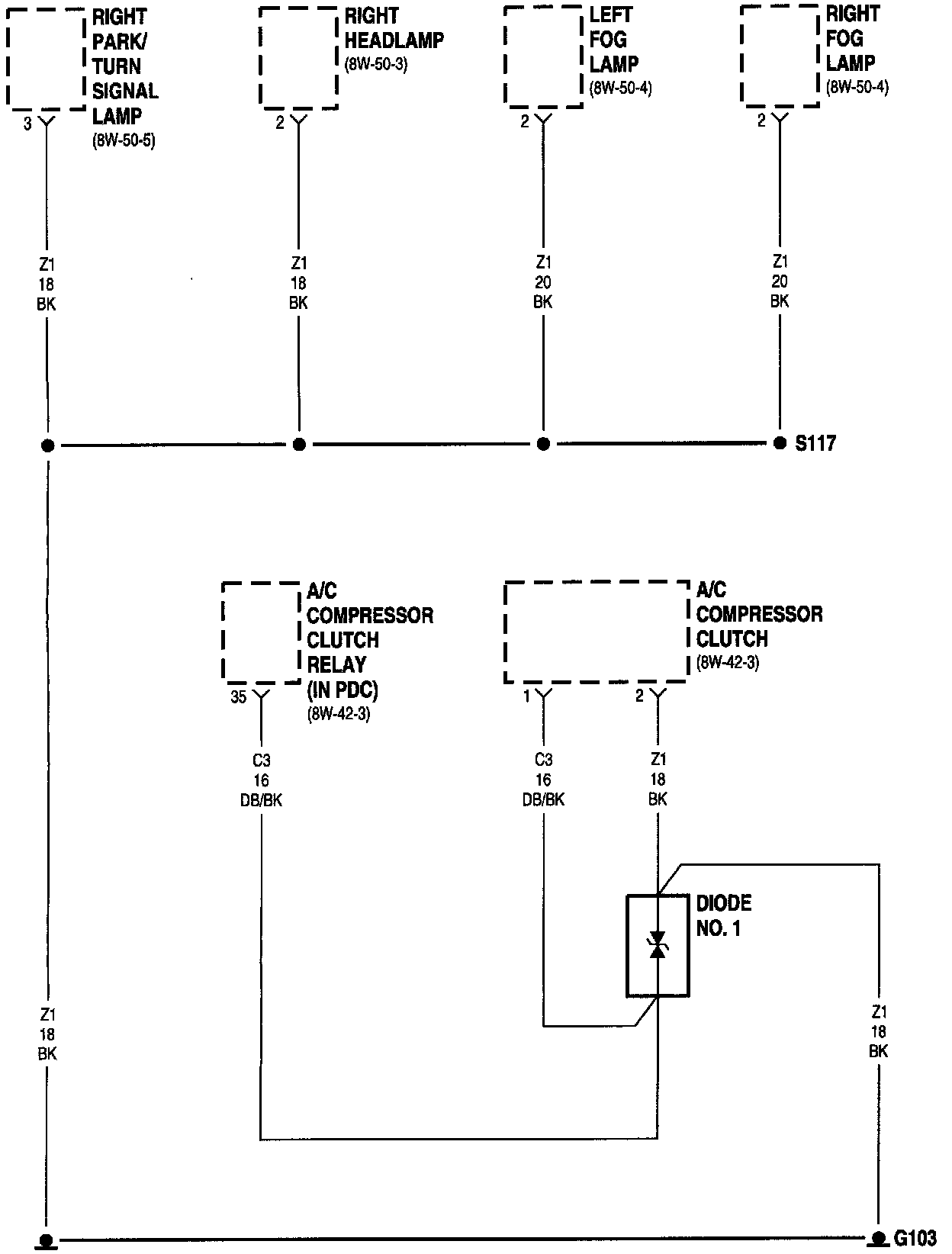

Ground Distribution (Part 3 Of 8):

A/C Compressor Clutch
A/C Compressor Clutch Relay
Diode No. 1
G103
Left Fog Lamp
Power Steering Pressure Switch
Right Fog Lamp
Right Headlamp
Right Park/Turn Signal Lamp

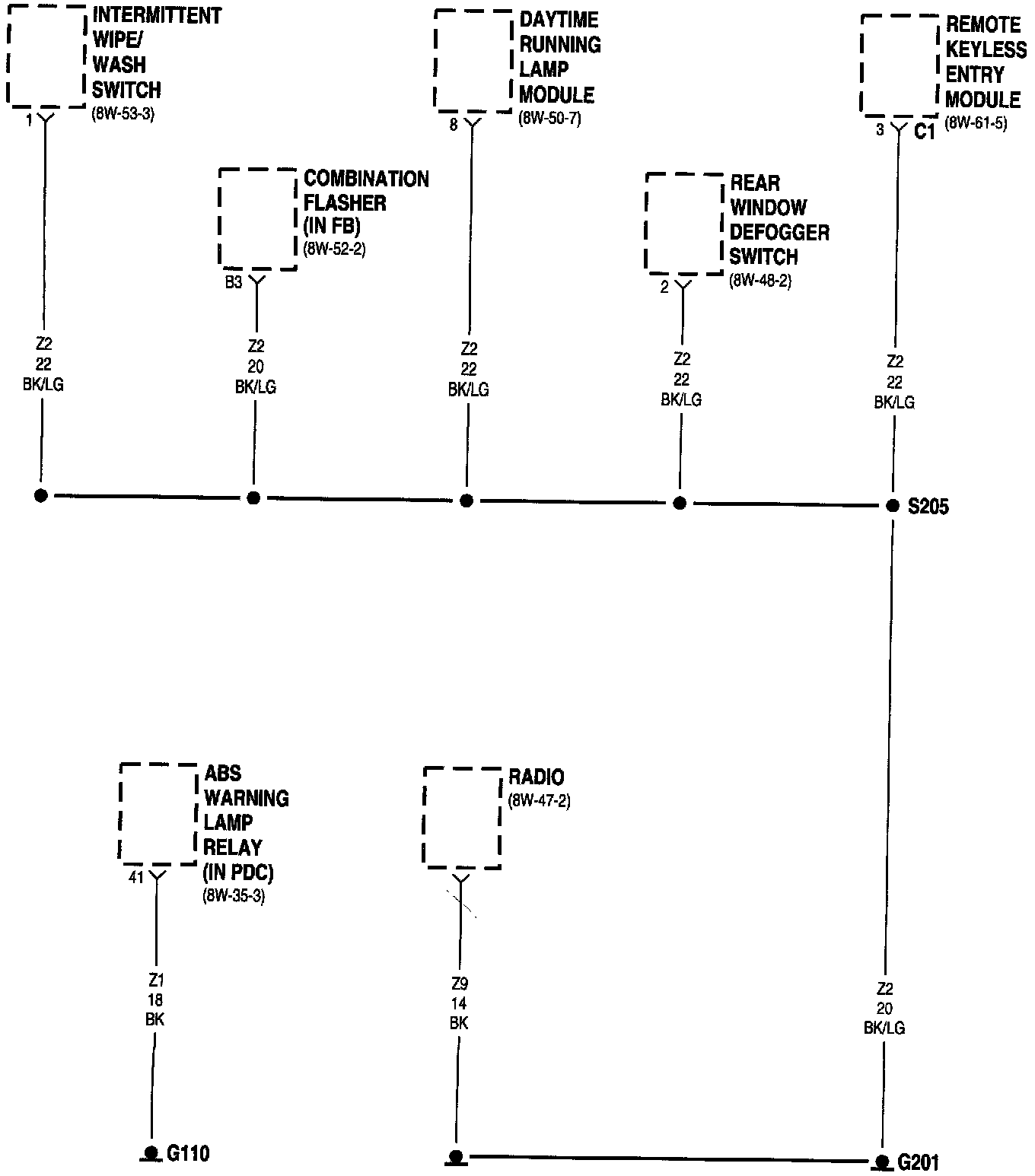

Ground Distribution (Part 4 Of 8):

ABS Warning Lamp Relay
Combination Flasher
Daytime Running Lamp Module
G110
G201
Intermittent Wipe/Wash Switch
Radio
Rear Window Defogger Switch
RKE Module

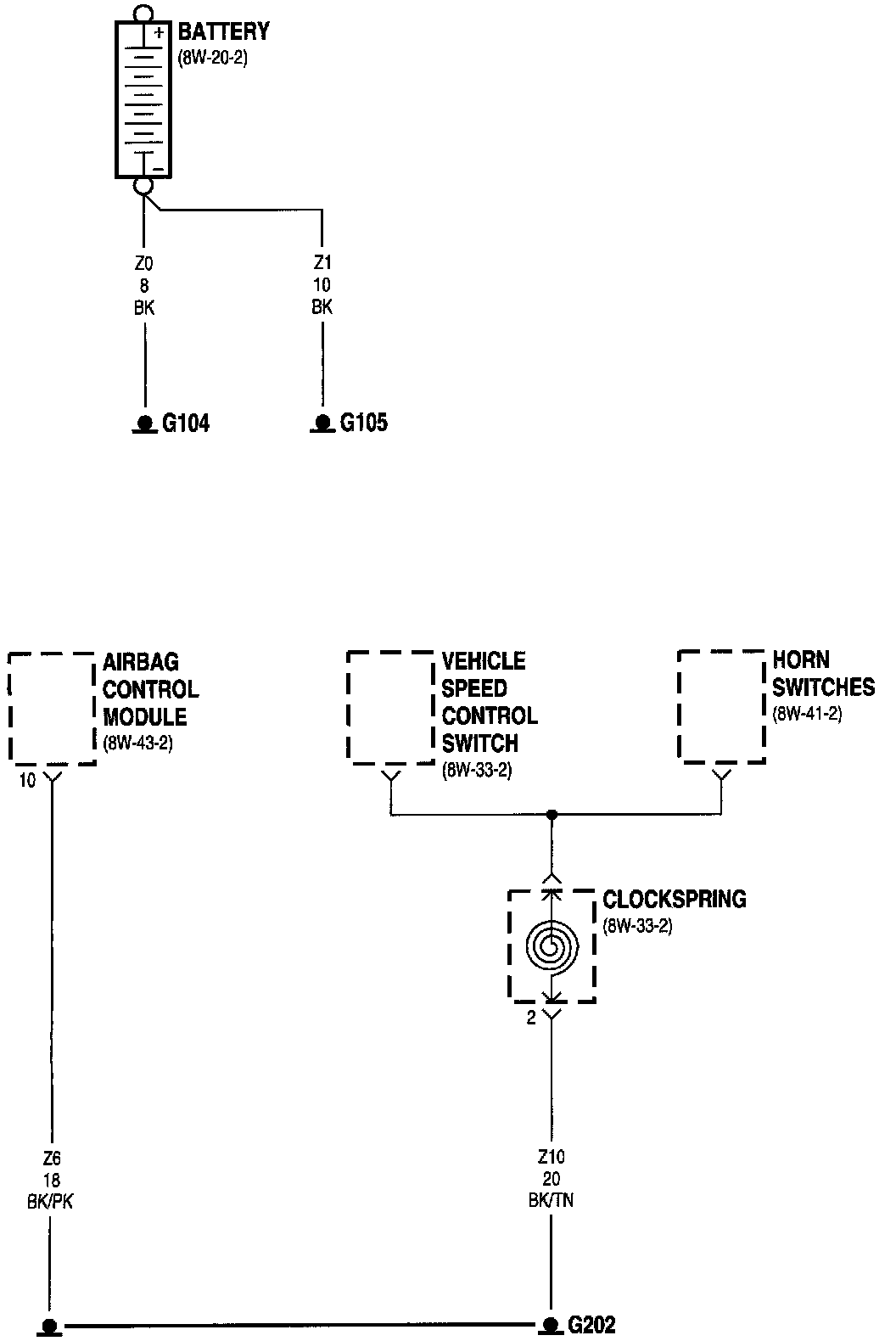

Ground Distribution (Part 5 Of 8):

Airbag Control Module
Battery
G104
G105
G202
Horn Switches
Vehicle Speed Control Switch

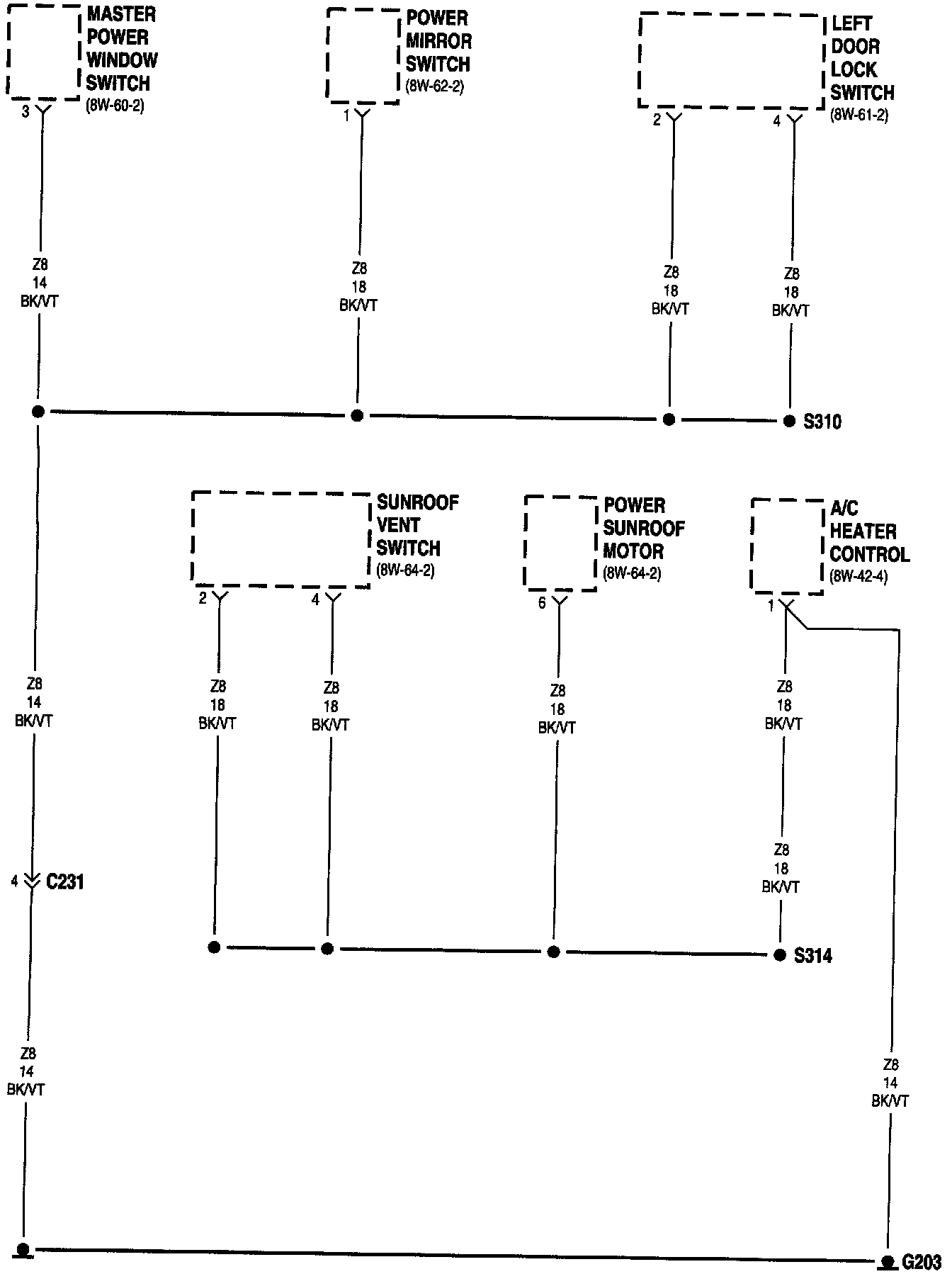

Ground Distribution (Part 6 Of 8):

A/C Heater Control
G203
Left Door Lock Switch
Master Power Window Switch
Power Mirror Switch
Power Sunroof Motor
Sunroof Vent Switch

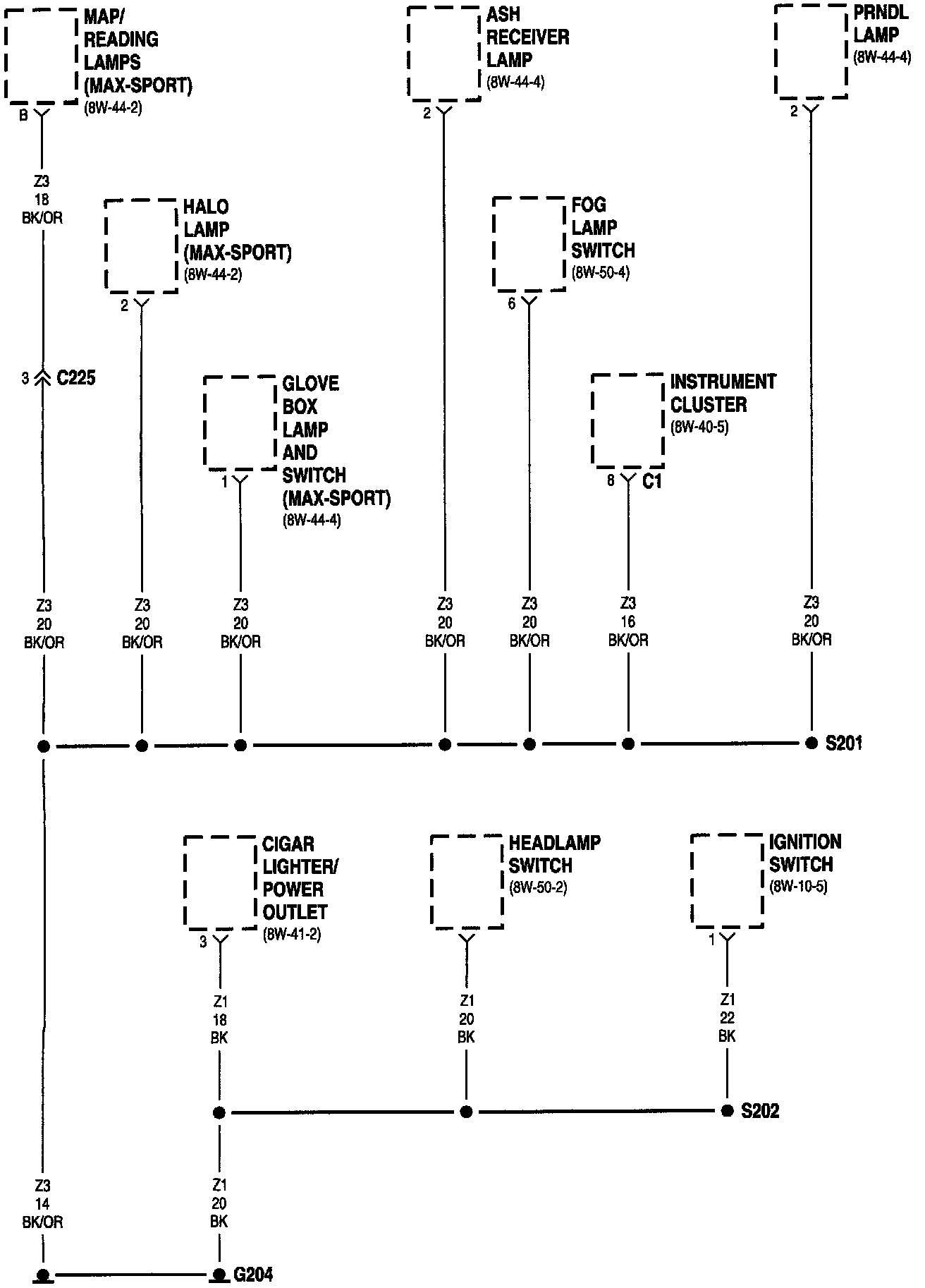

Ground Distribution (Part 7 Of 8):

Ash Receiver Lamp
Fog Lamp Switch
G204
Glove Box Lamp And Switch
Halo Lamp
Headlamp Switch
Ignition Switch
Instrument Cluster
Map/Reading Lamps
PRNDL Lamp

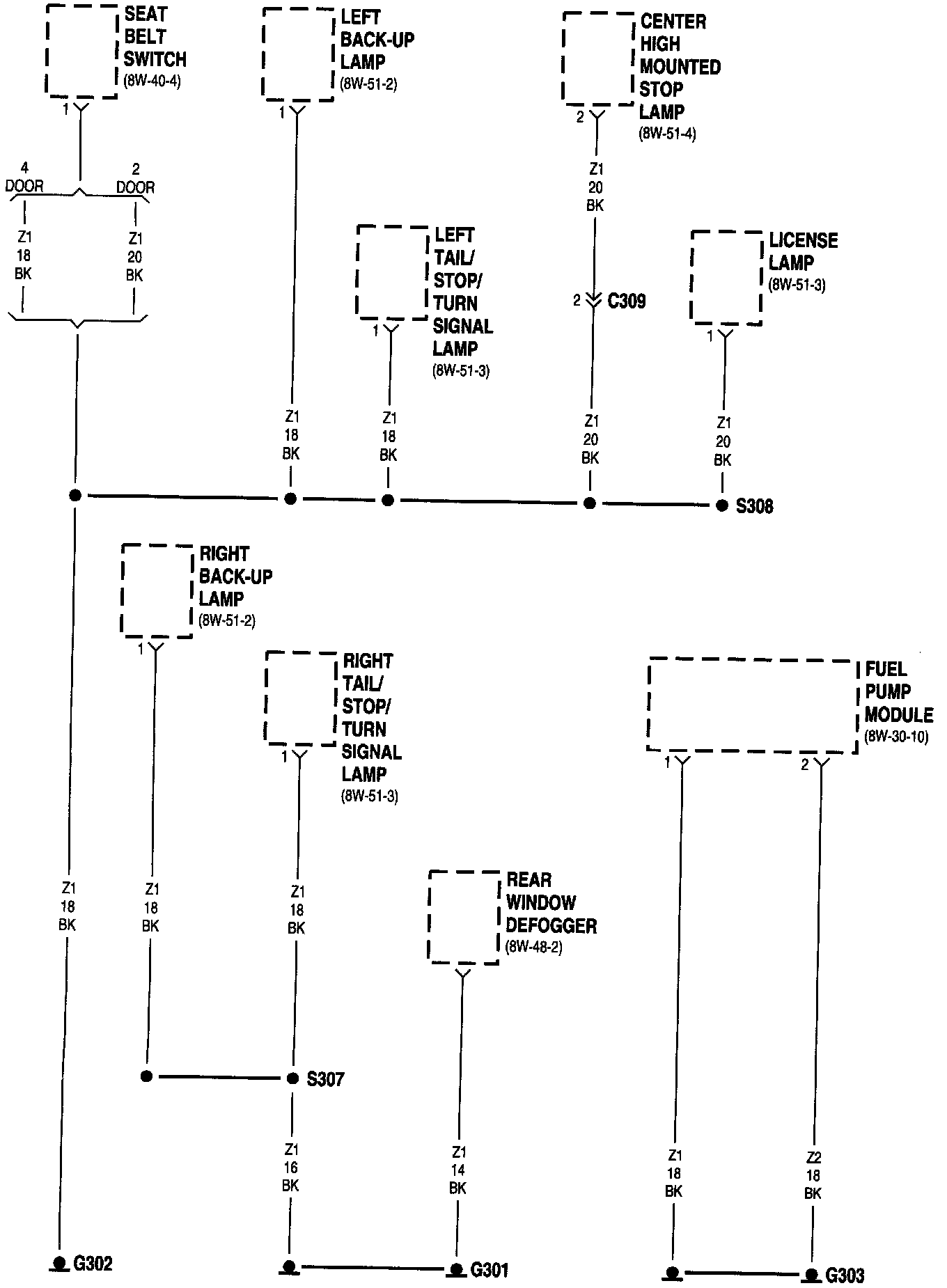

Ground Distribution (Part 8 Of 8):

Fuel Pump Module
G301
G302
G303
Left Back-Up Lamp
Left Tail/Stop/Turn Signal Lamp
License Lamp
Rear Window Defogger
Right Back-Up Lamp
Right Tail/Stop/Turn Signal Lamp
Seat Belt Switch


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
