Interior Lighting

Interior Lighting (Part 1 Of 4):

Diode No. 2
Diode No. 3
G204
Halo Lamp
Headlamp Switch
Map/Reading Lamps
Power Distribution Center
Time Delay Relay
Time Out Relay

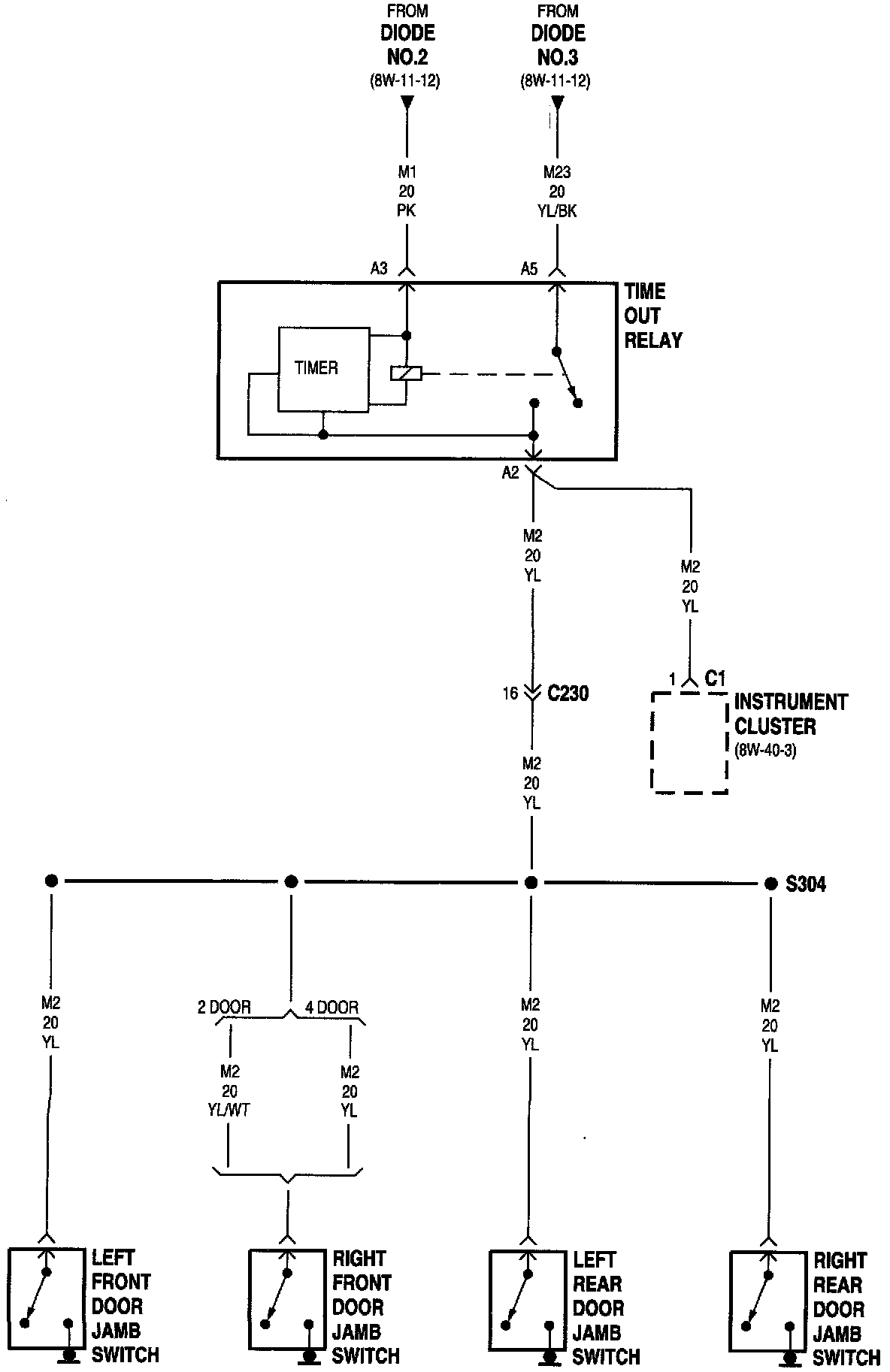

Interior Lighting (Part 2 Of 4):

Diode No. 2
Diode No. 3
Instrument Cluster
Left Front Door Jamb Switch
Left Rear Door Jamb Switch
Right Front Door Jamb Switch
Right Rear Door Jamb Switch

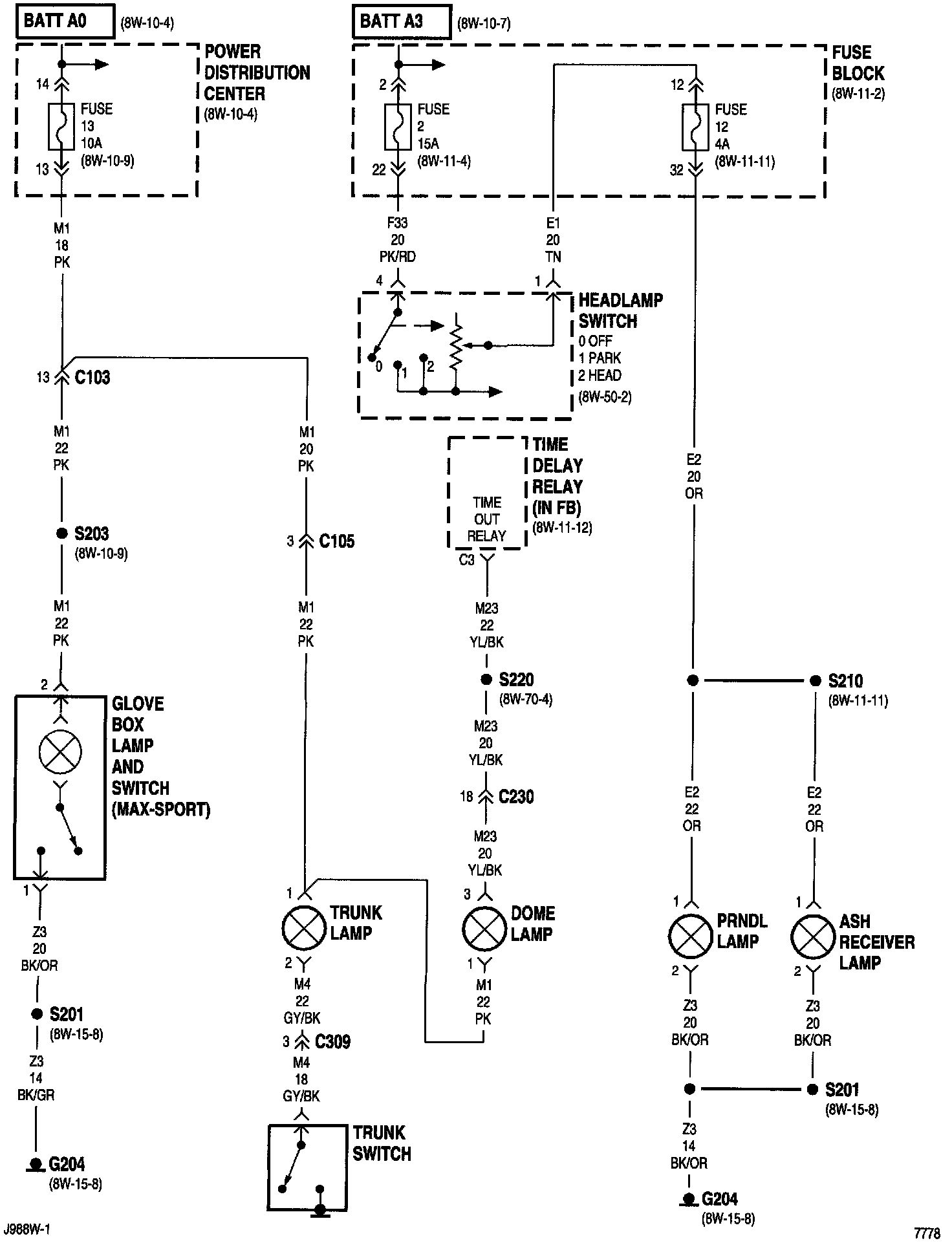

Interior Lighting (Part 3 Of 4):

Ash Receiver Lamp
Dome Lamp
Fuse 2 (FB)
Fuse 12 (FB)
Fuse 13 (PDC)
Fuse Block
G204
Glove Box Lamp And Switch
Headlamp Switch
Power Distribution Center
PRNDL Lamp
Time Delay Relay
Trunk Lamp
Trunk Switch

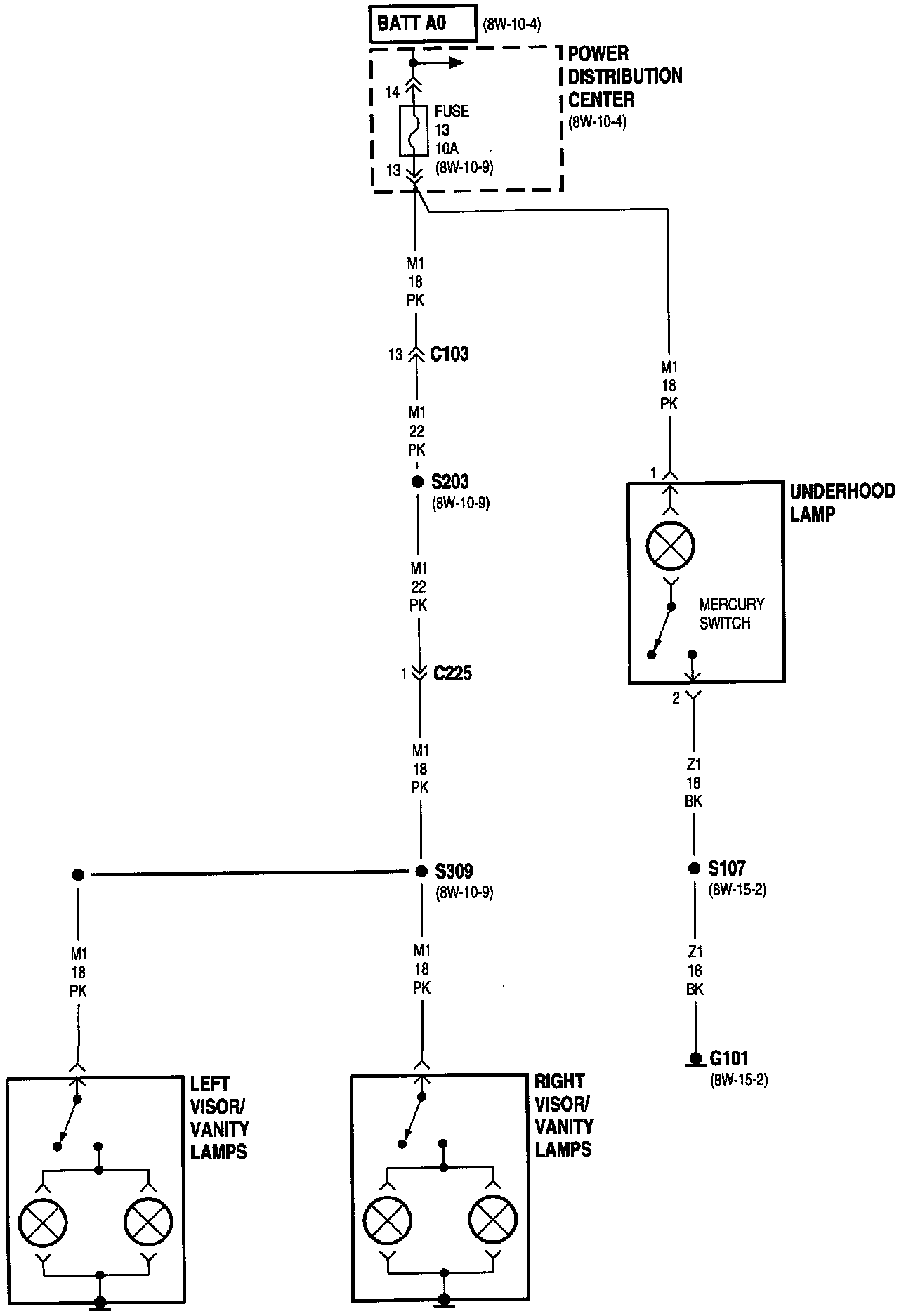

Interior Lighting (Part 4 Of 4):

Fuse 13 (PDC)
G101
Left Visor/Vanity Lamps
Power Distribution Center
Right Visor/Vanity Lamps
Underhood Lamp


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
