Front End Lighting

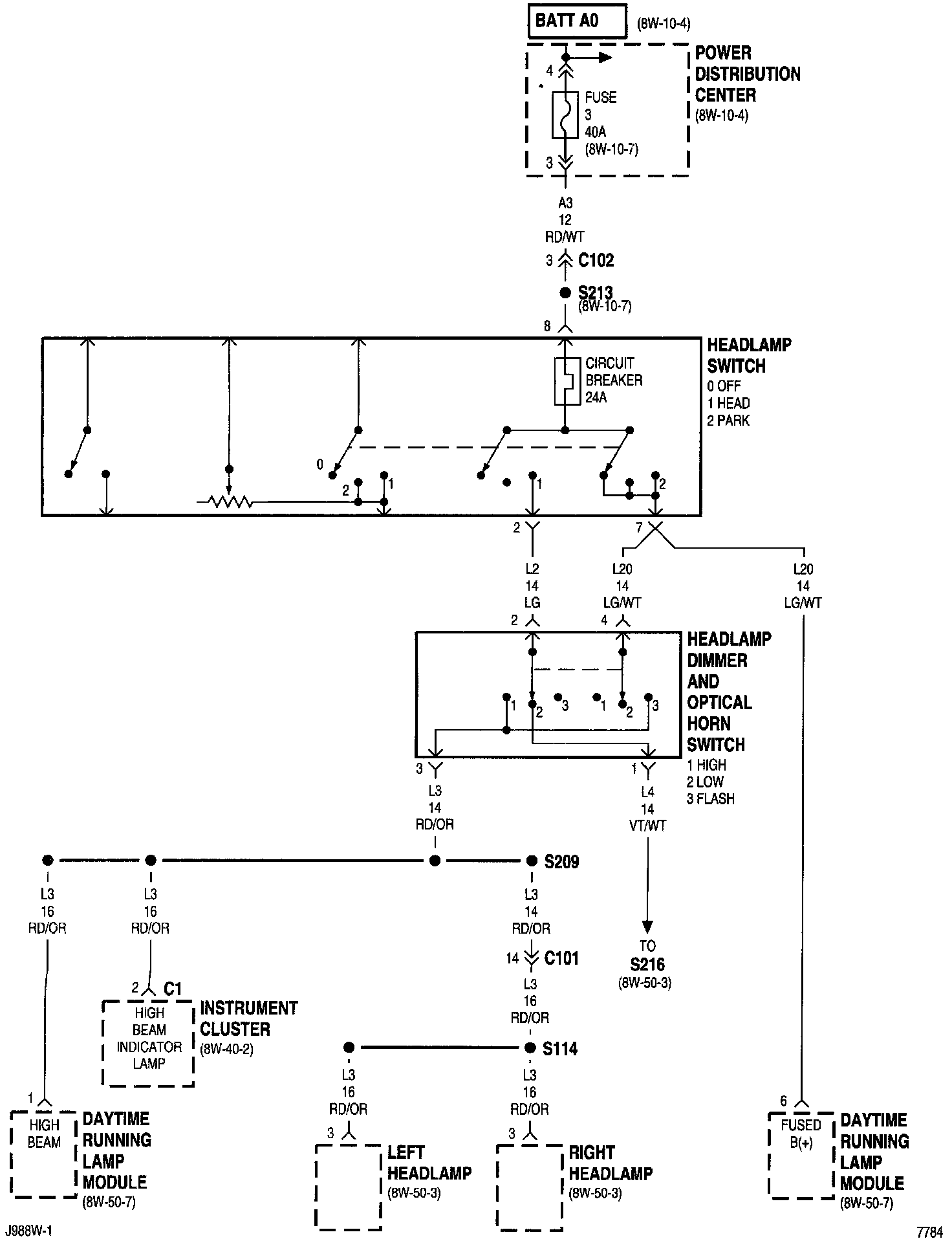

Front Lighting (Part 1 Of 6):

Daytime Running Lamp Module
Fuse 3 (PDC)
Headlamp Dimmer And Optical Horn Switch
Headlamp Switch
Instrument Cluster
Left Headlamp
Power Distribution Center
Right Headlamp

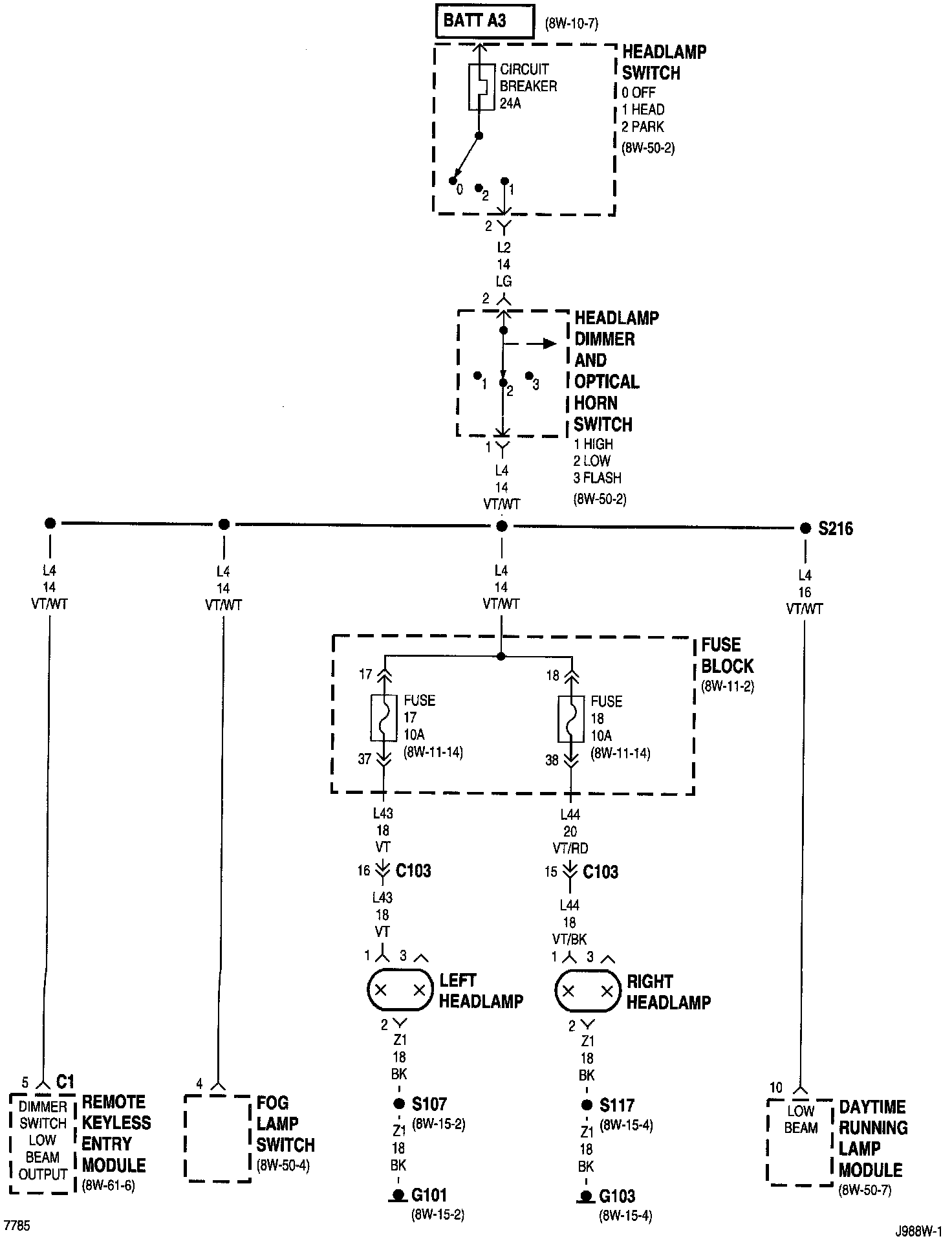

Front Lighting (Part 2 Of 6):

Daytime Running Lamp Module
Fog Lamp Switch
Fuse 17 (FB)
Fuse 18 (FB)
Fuse Block
G101
G103
Headlamp Dimmer And Optical Horn Switch
Headlamp Switch
Left Headlamp
RKE Module
Right Headlamp

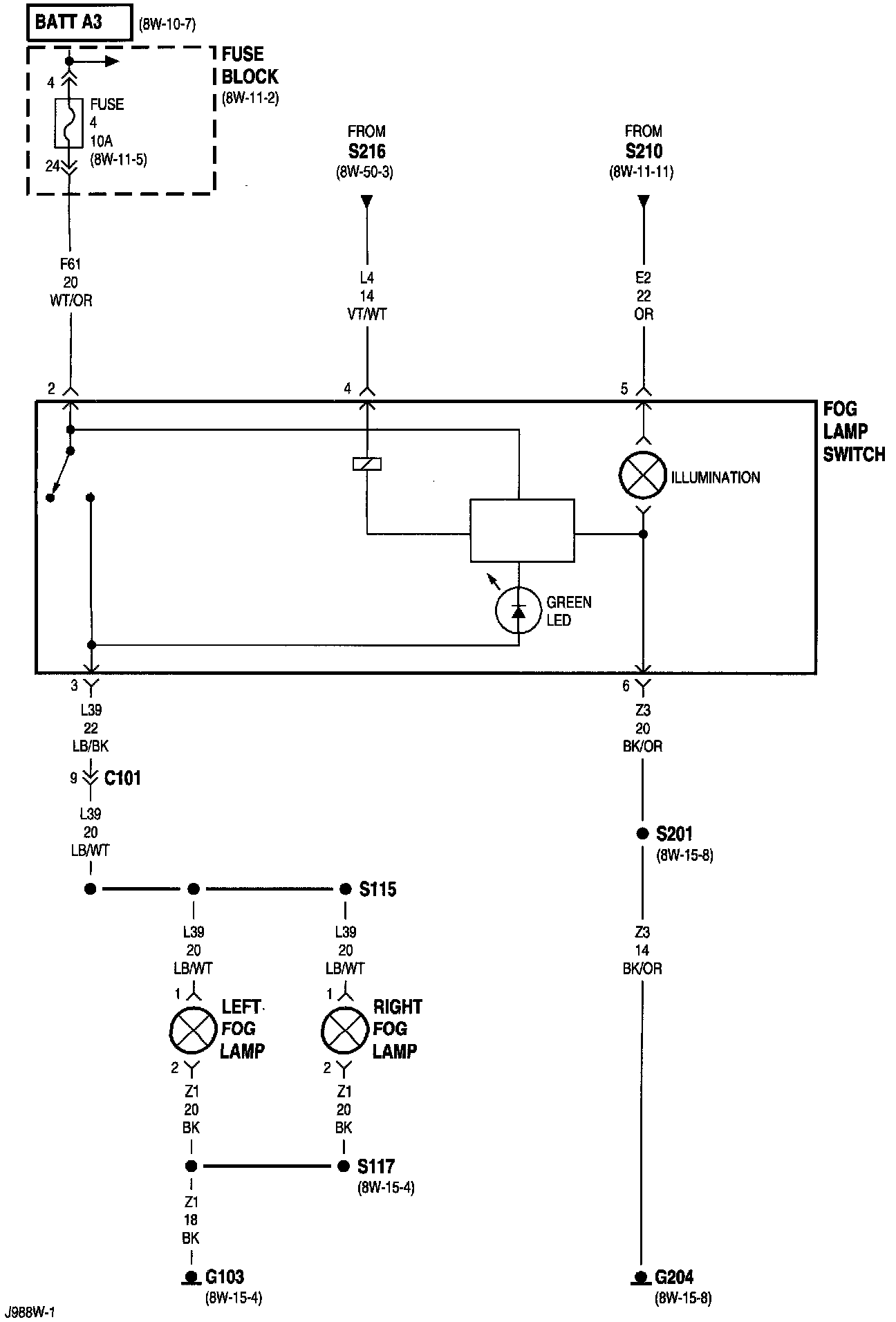

Front Lighting (Part 3 Of 6):

Fog Lamp Switch
Fuse 4 (FB)
Fuse Block
G103
G204
Green Led
Illumination
Left Fog Lamp
Right Fog Lamp

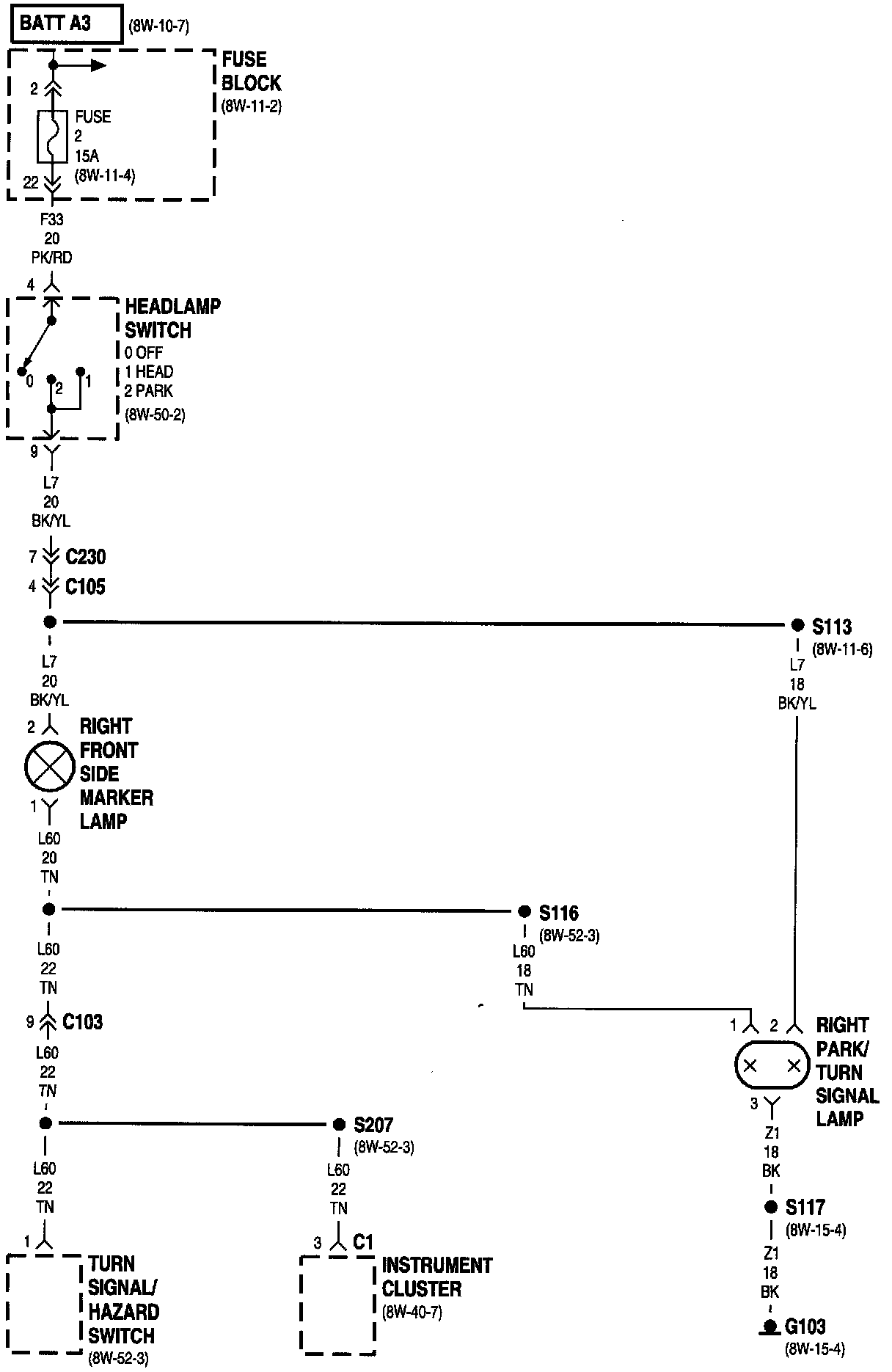

Front Lighting (Part 4 Of 6):

Fuse 2 (FB)
Fuse Block
G103
Headlamp Switch
Instrument Cluster
Right Front Side Marker Lamp
Right Park/Turn Signal Lamp
Turn Signal/Hazard Switch

Front Lighting (Part 5 Of 6):

Fuse 2 (FB)
Fuse Block
G101
Headlamp Switch
Instrument Cluster
Left Front Side Marker Lamp/Left Park/Turn Signal Lamp
Turn Signal/Hazard Switch

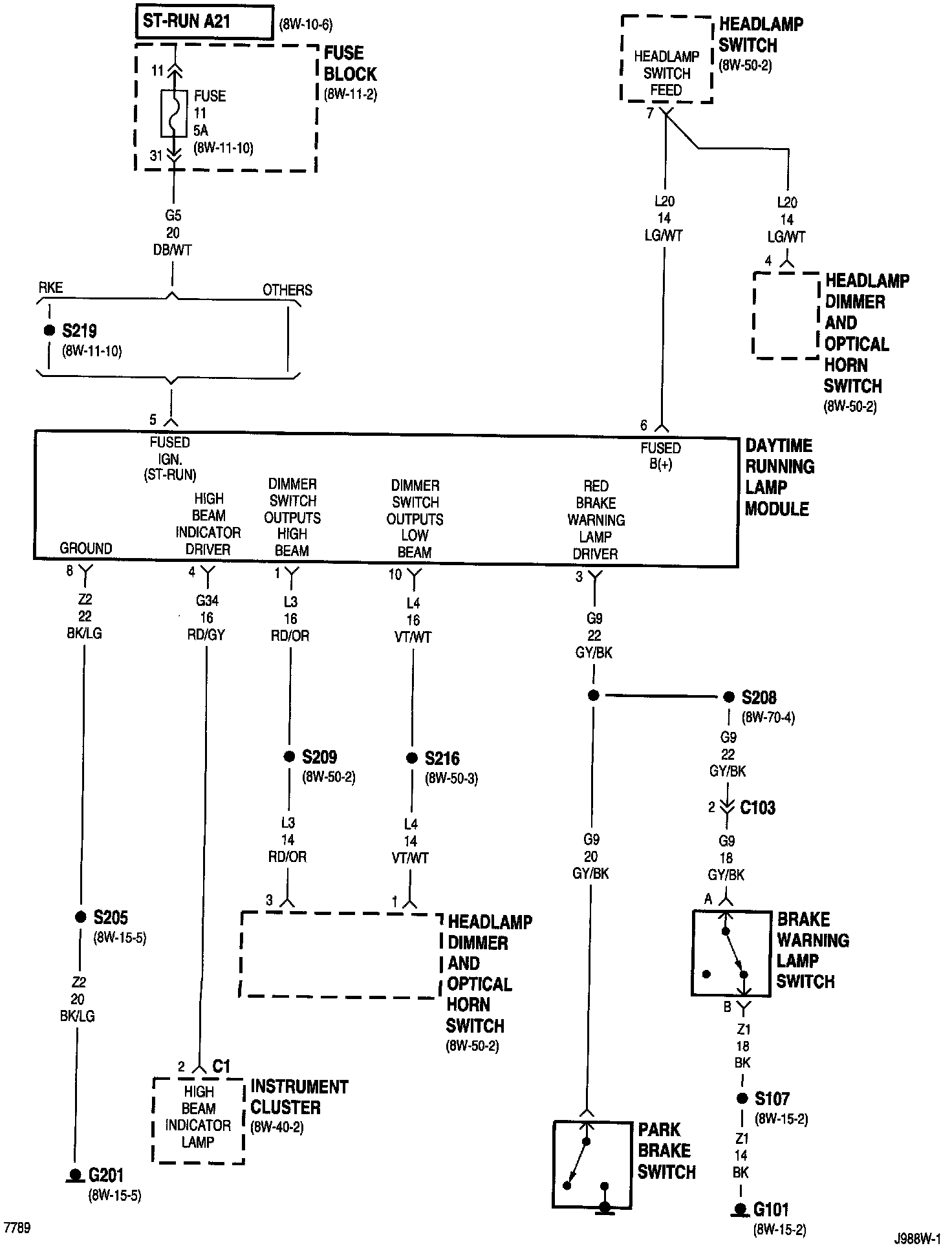

Front Lighting (Part 6 Of 6):

Brake Warning Lamp Switch
Daytime Running Lamp Module
Fuse 11 (FB)
Fuse Block
G101
G201
Headlamp Dimmer And Optical Horn Switch
Headlamp Switch
Instrument Cluster
Park Brake Switch


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
