Instrument Cluster / Carrier

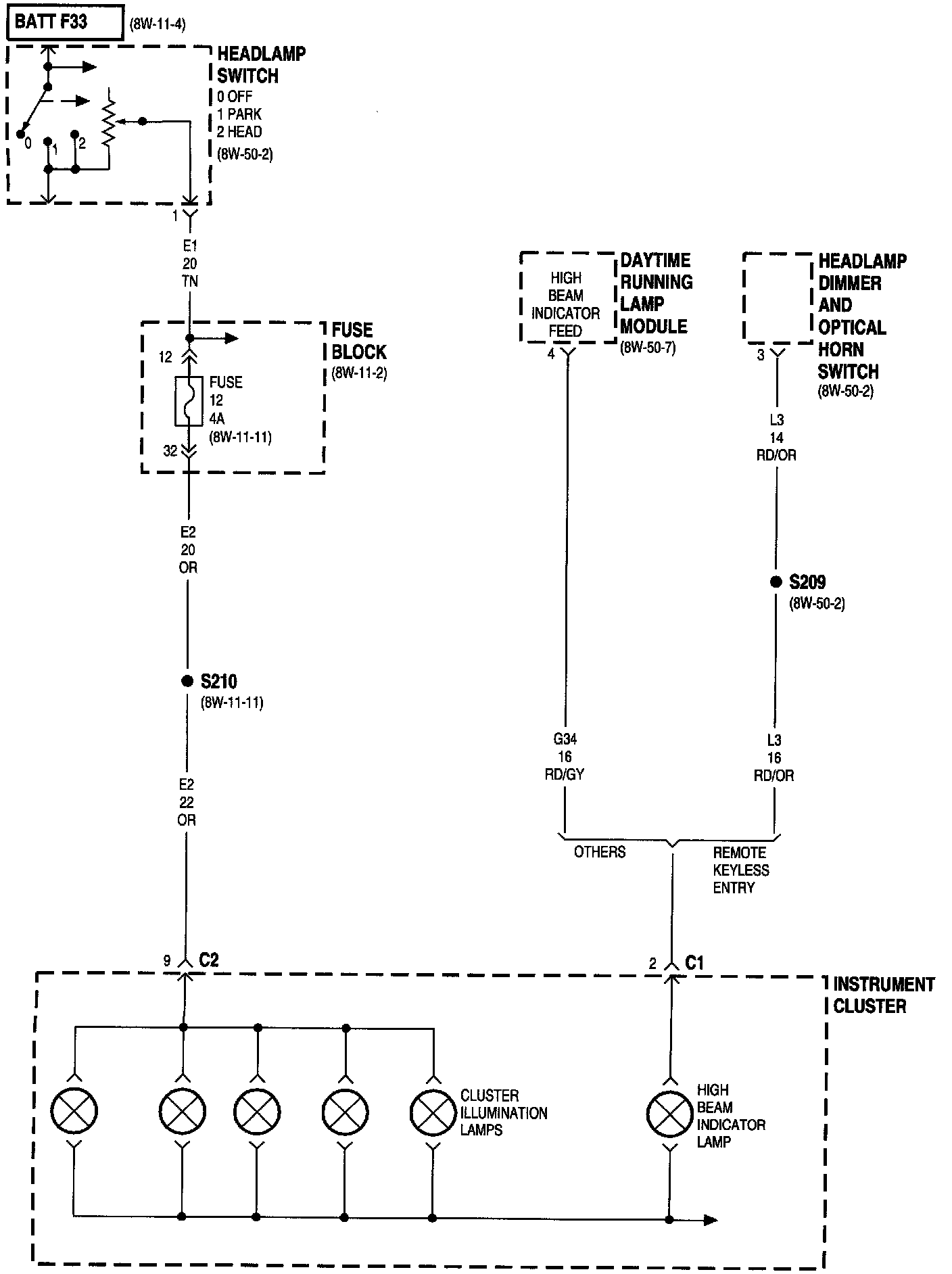

Instrument Cluster (Part 1 Of 6):

Cluster illumination Lamps
Daytime Running Lamp Module
Fuse 12 (FB)
Fuse Block
Headlamp Dimmer And Optical Horn Switch
Headlamp Switch
Instrument Cluster

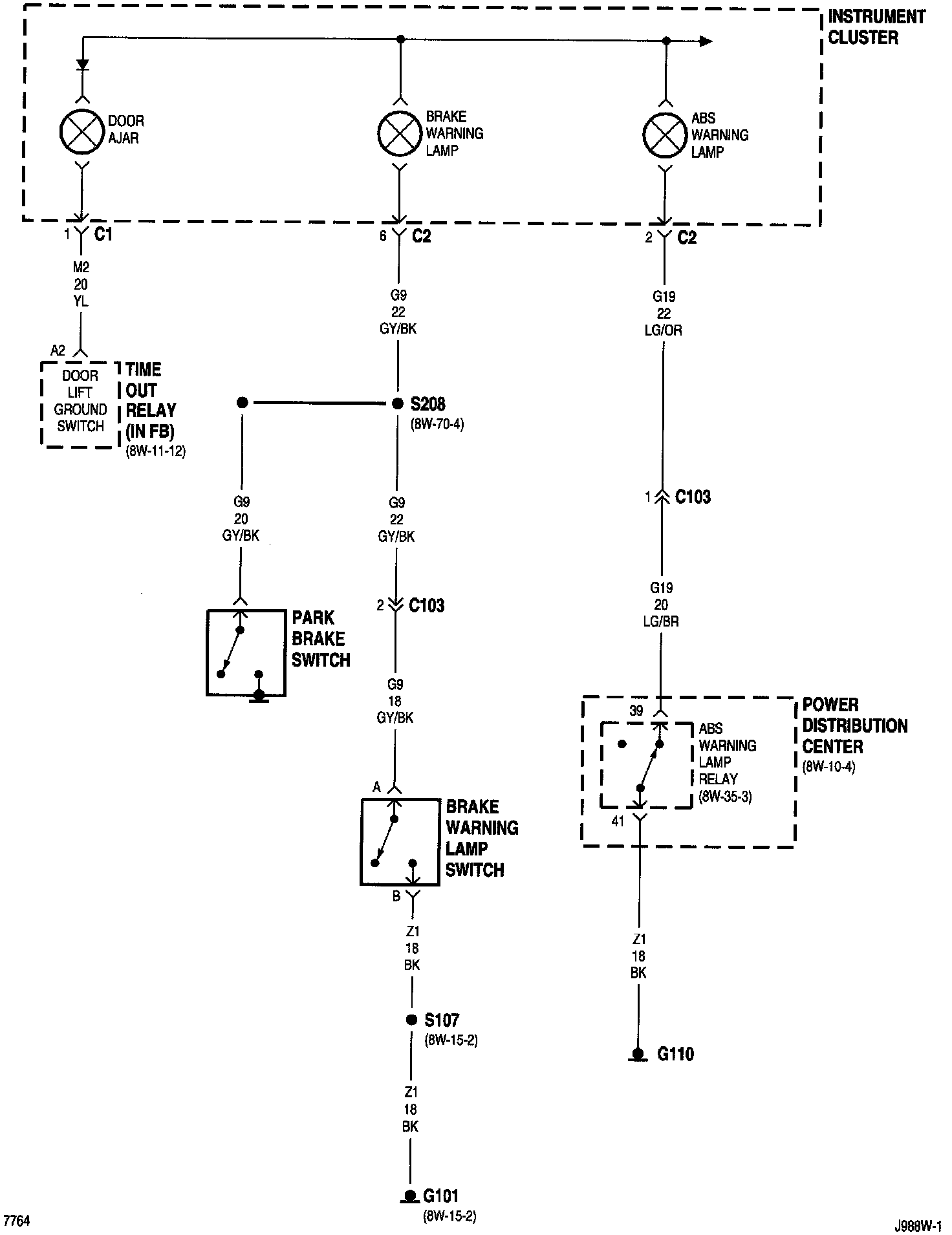

Instrument Cluster (Part 2 Of 6):

ABS Warning Lamp Relay
ABS Warning Lamp
Brake Warning Lamp Switch
Brake Warning Lamp
Door Ajar
G101
G110
Instrument Cluster
Power Distribution Center
Park Brake Switch
Time Out Relay

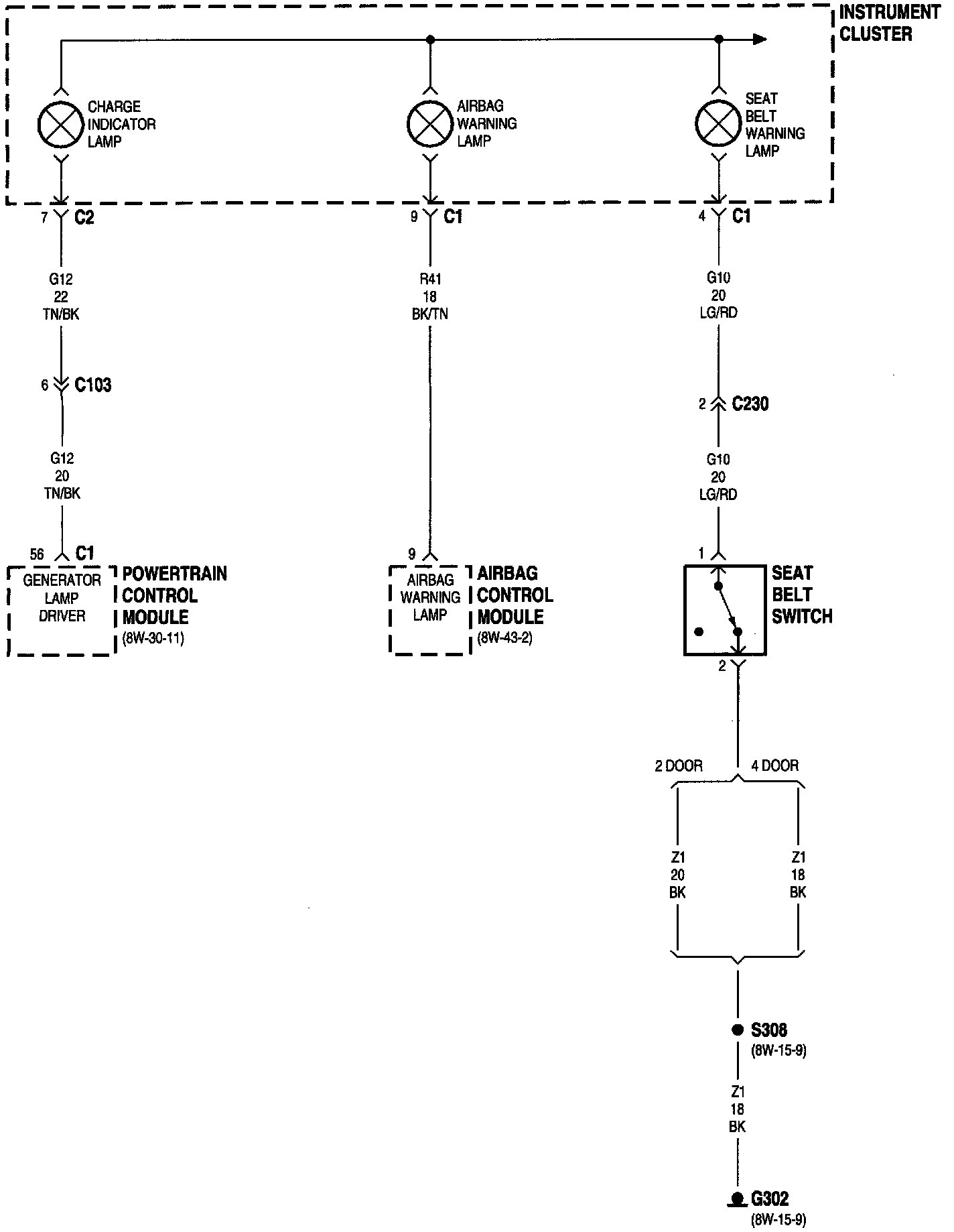

Instrument Cluster (Part 3 Of 6):

Airbag Control Module
Airbag Warning Lamp
Charge Indicator Lamp
G302
Instrument Cluster
Powertrain Control Module
Seat Belt Switch
Seat Belt Warning Lamp

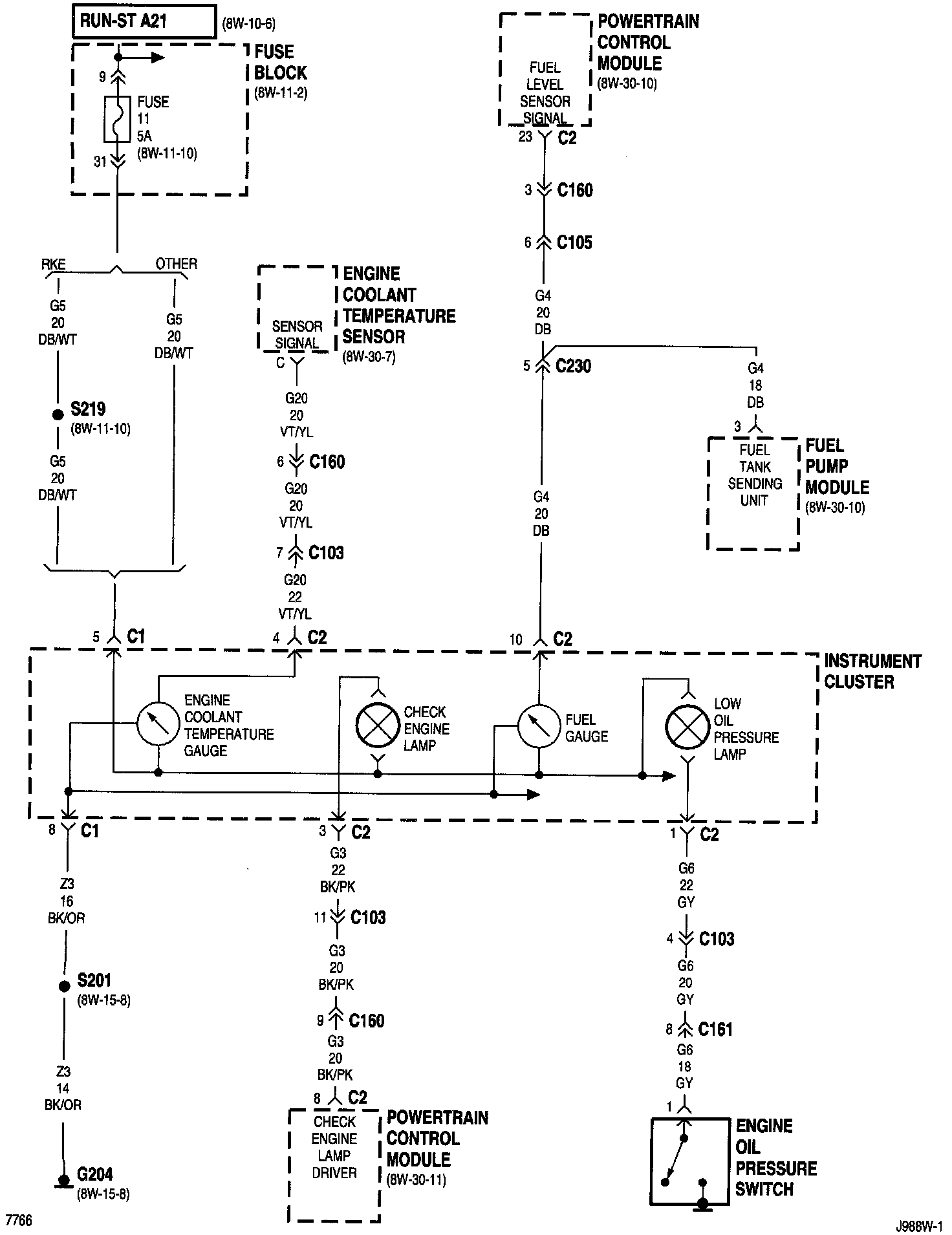

Instrument Cluster (Part 4 Of 6):

Check Engine Lamp
Fuse Block
G204
Fuse Block
Fuse 11 (FB)
Fuel Pump Module
Fuel Gauge
Engine Oil Pressure Switch
Engine Coolant Temperature Sensor
Engine Coolant Temperature Gauge
Instrument Cluster
Low Oil Pressure Lamp
Powertrain Control Module

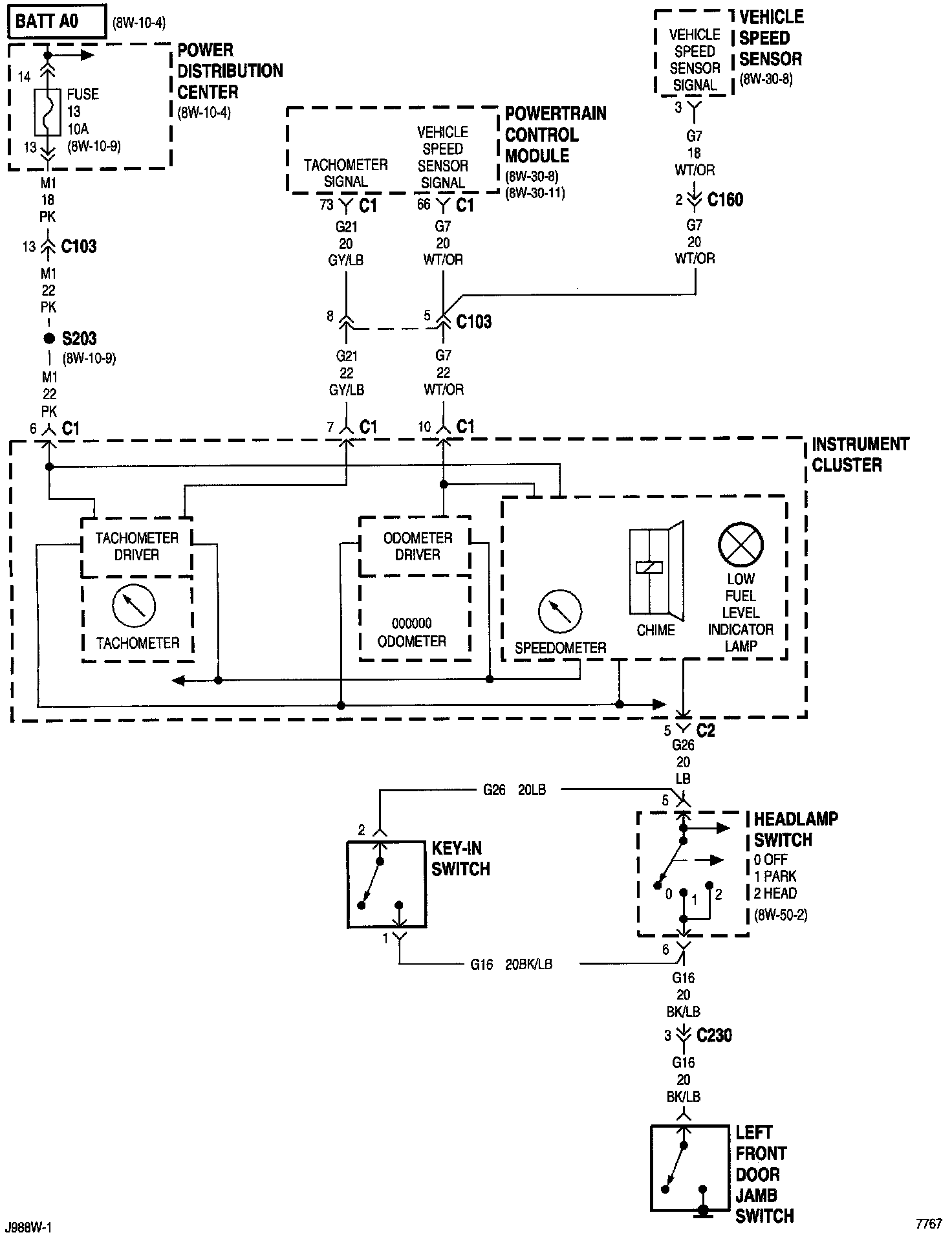

Instrument Cluster (Part 5 Of 6):

Fuse 13 (PDC)
Instrument Cluster
Headlamp Switch
Key-In Switch
Left Front Door Jamb Switch
Power Distribution Center
Powertrain Control Module
Vehicle Speed Sensor

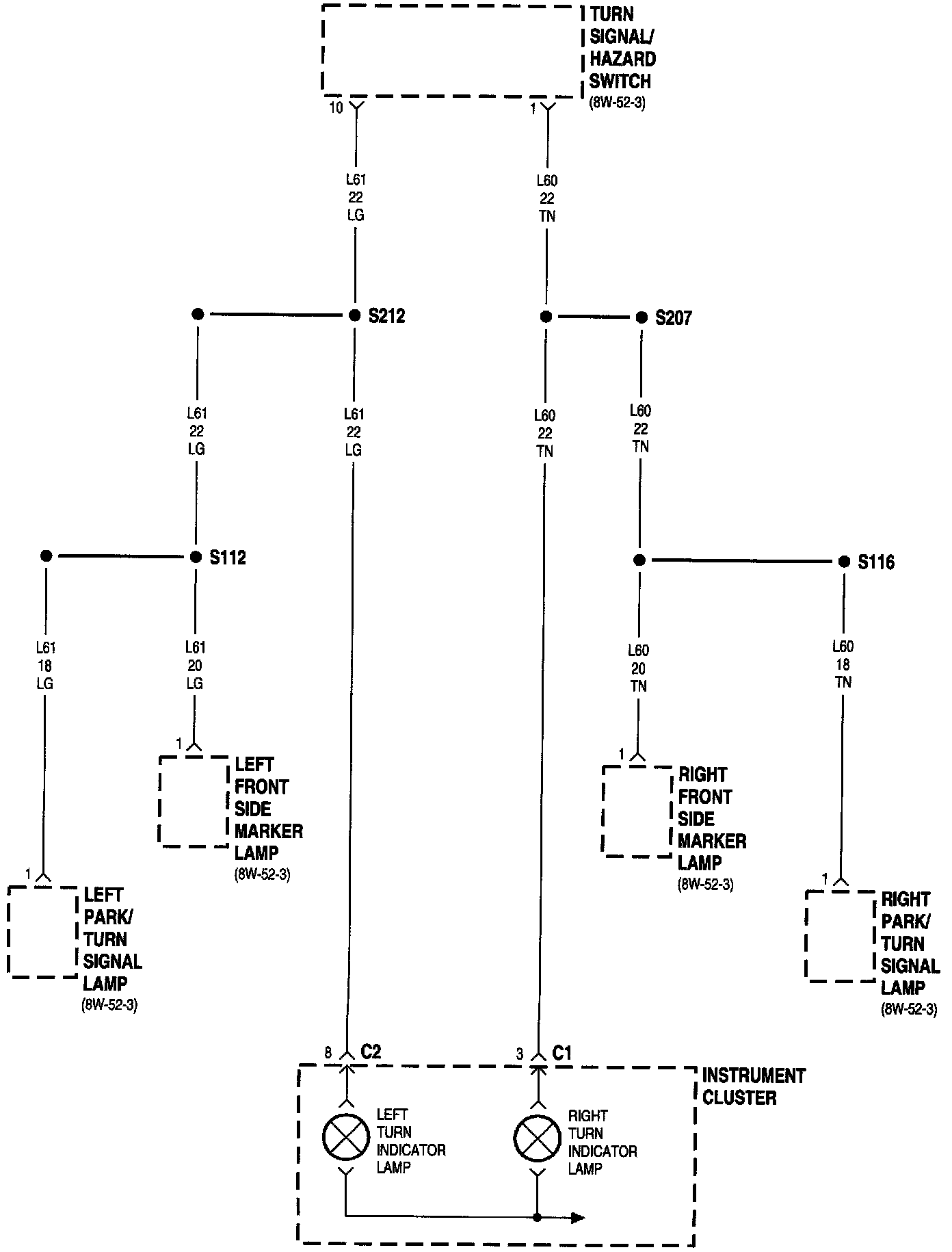

Instrument Cluster (Part 6 Of 6):

Instrument Cluster
Left Front Side Marker Lamp
Left Park/Turn Signal Lamp
Left Turn Indicator Lamp
Right Front Side Marker Lamp
Right Park/Turn Signal Lamp
Right Turn Indicator Lamp
Turn Signal/Hazard Switch


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams
