System Diagram

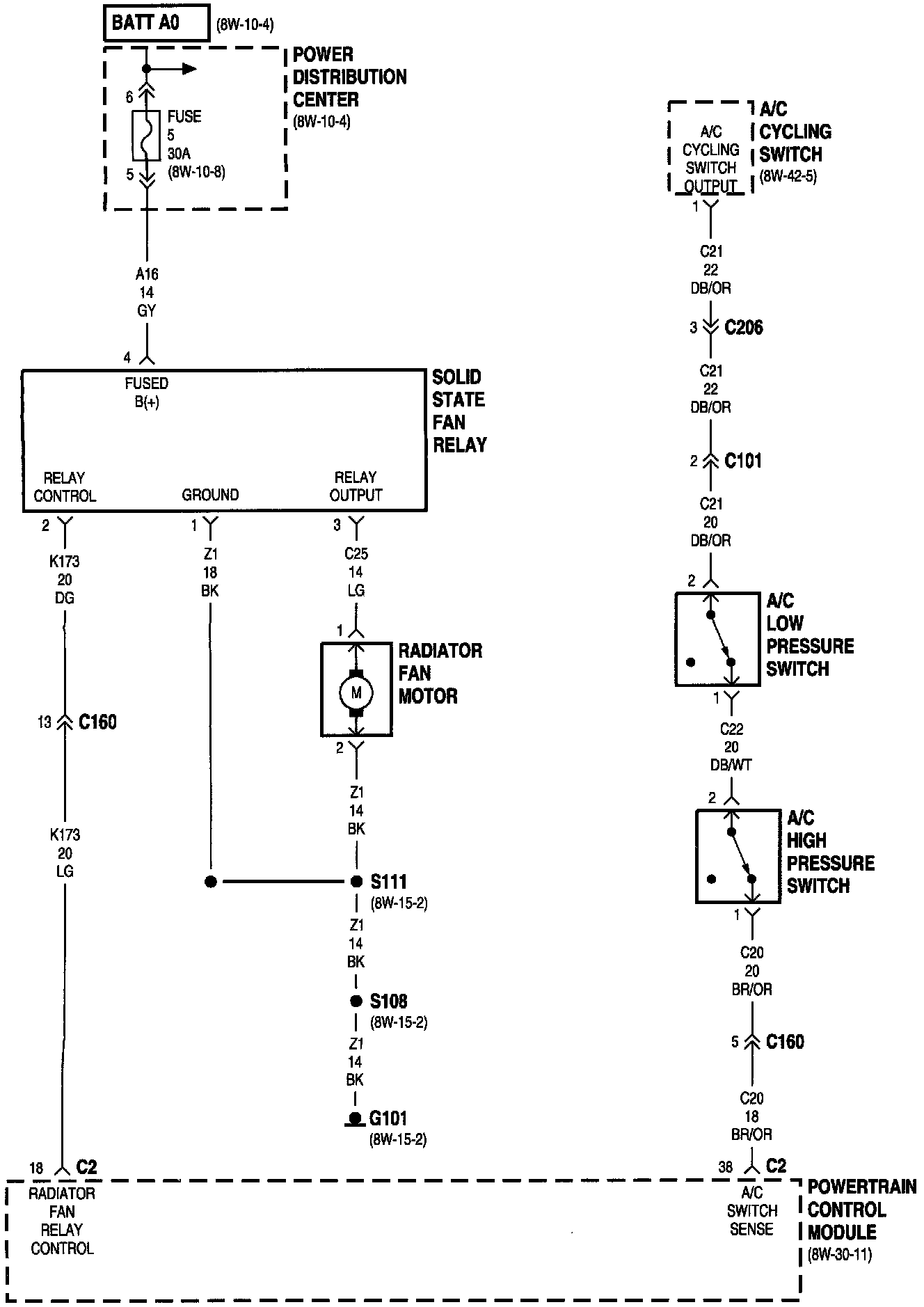

Air Conditioning-Heater (Part 1 Of 4):

A/C Cycling Switch
A/C High Pressure Switch
A/C Low Pressure Switch
Fuse 5 (PDC)
G101
Power Distribution Center
Powertrain Control Module
Radiator Fan Motor
Solid State Fan Relay

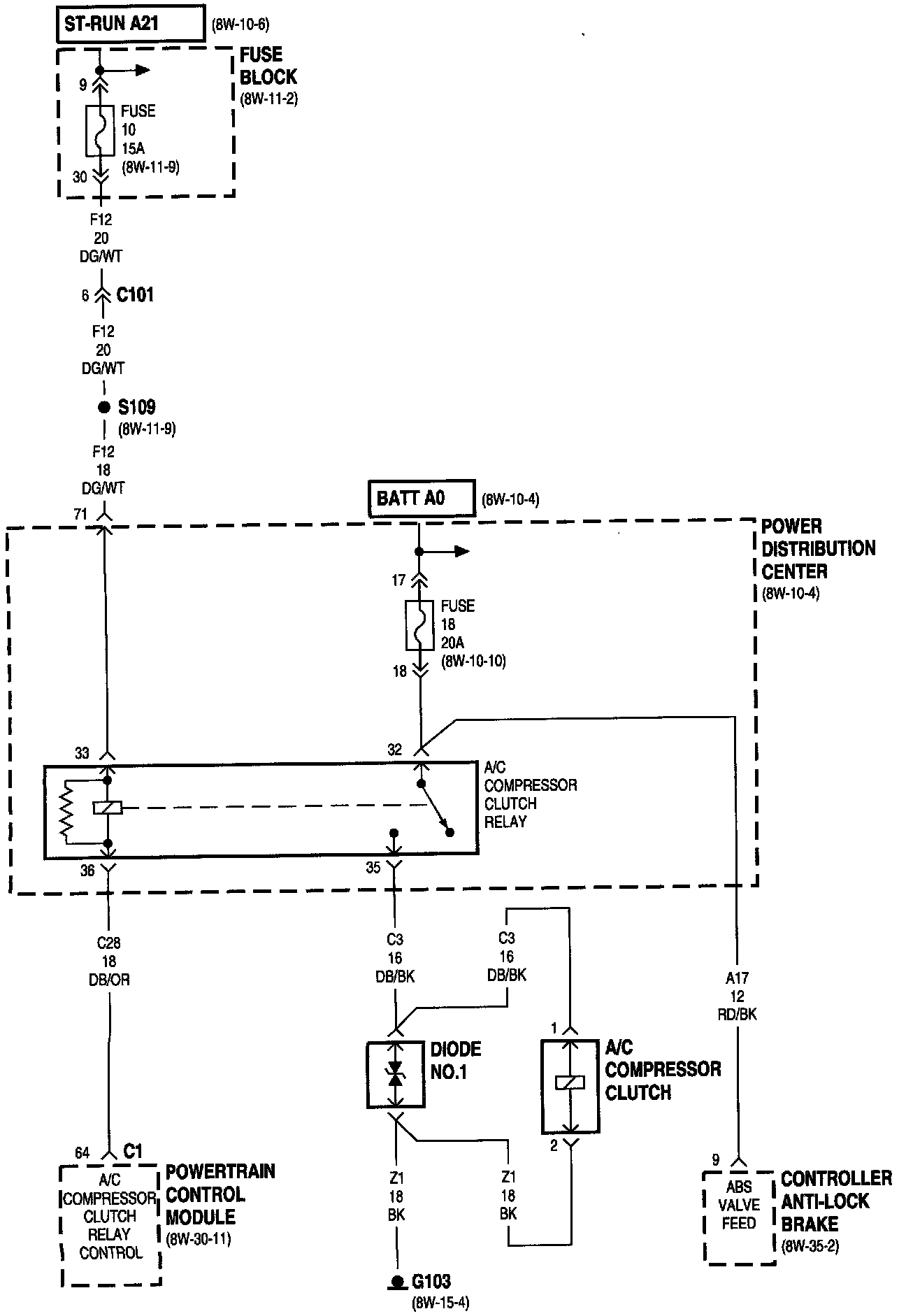

Air Conditioning-Heater (Part 2 Of 4):

A/C Compressor Clutch
A/C Compressor Clutch Relay
Controller Anti-Lock Brake
Diode No.1
Fuse 10 (FB)
Fuse 18 (PDC)
Fuse Block
G103
Power Distribution Center
Powertrain Control Module

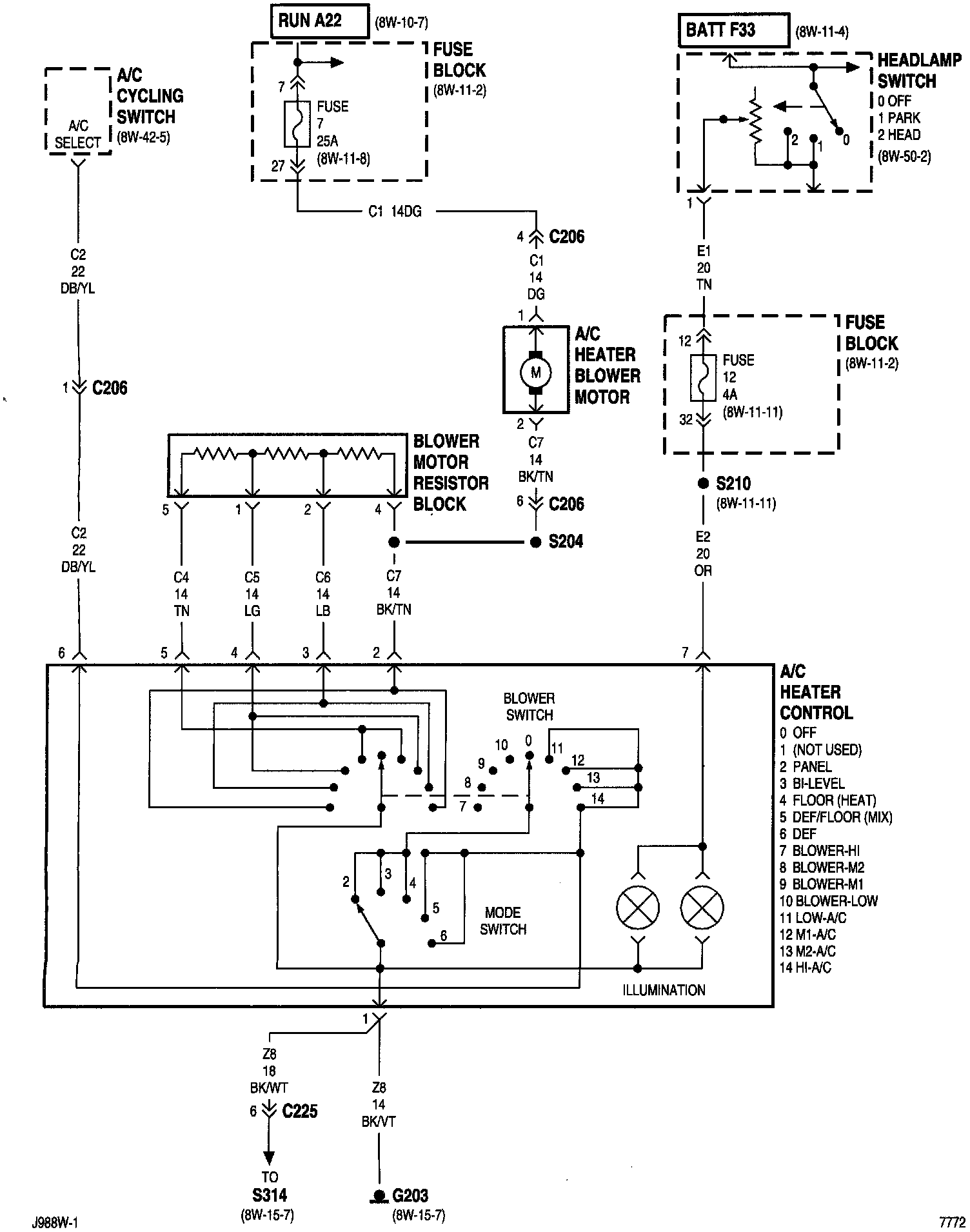

Air Conditioning-Heater (Part 3 Of 4):

A/C Cycling Switch
A/C Heater Blower Motor
A/C Heater Control
Blower Motor Resistor Block
Fuse 7 (FB)
Fuse 12 (FB)
Fuse Block
G203
Headlamp Switch

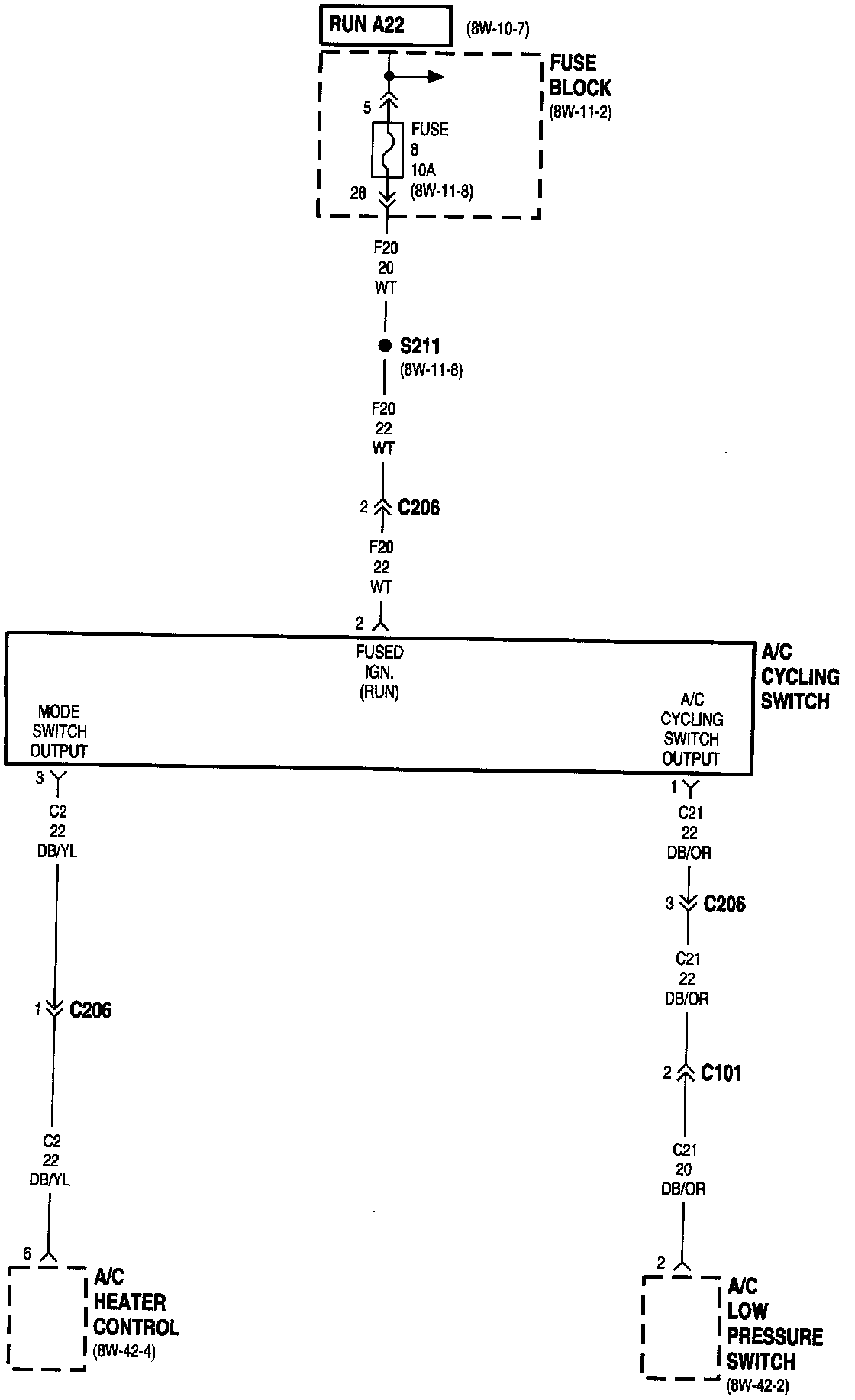

Air Conditioning-Heater (Part 4 Of 4):

A/C Cycling Switch
A/C Heater Control
A/C Low Pressure Switch
Fuse 8 (FB)
Fuse Block

NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
