Home >> Dodge >> 1998 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connectors >> Figure 22

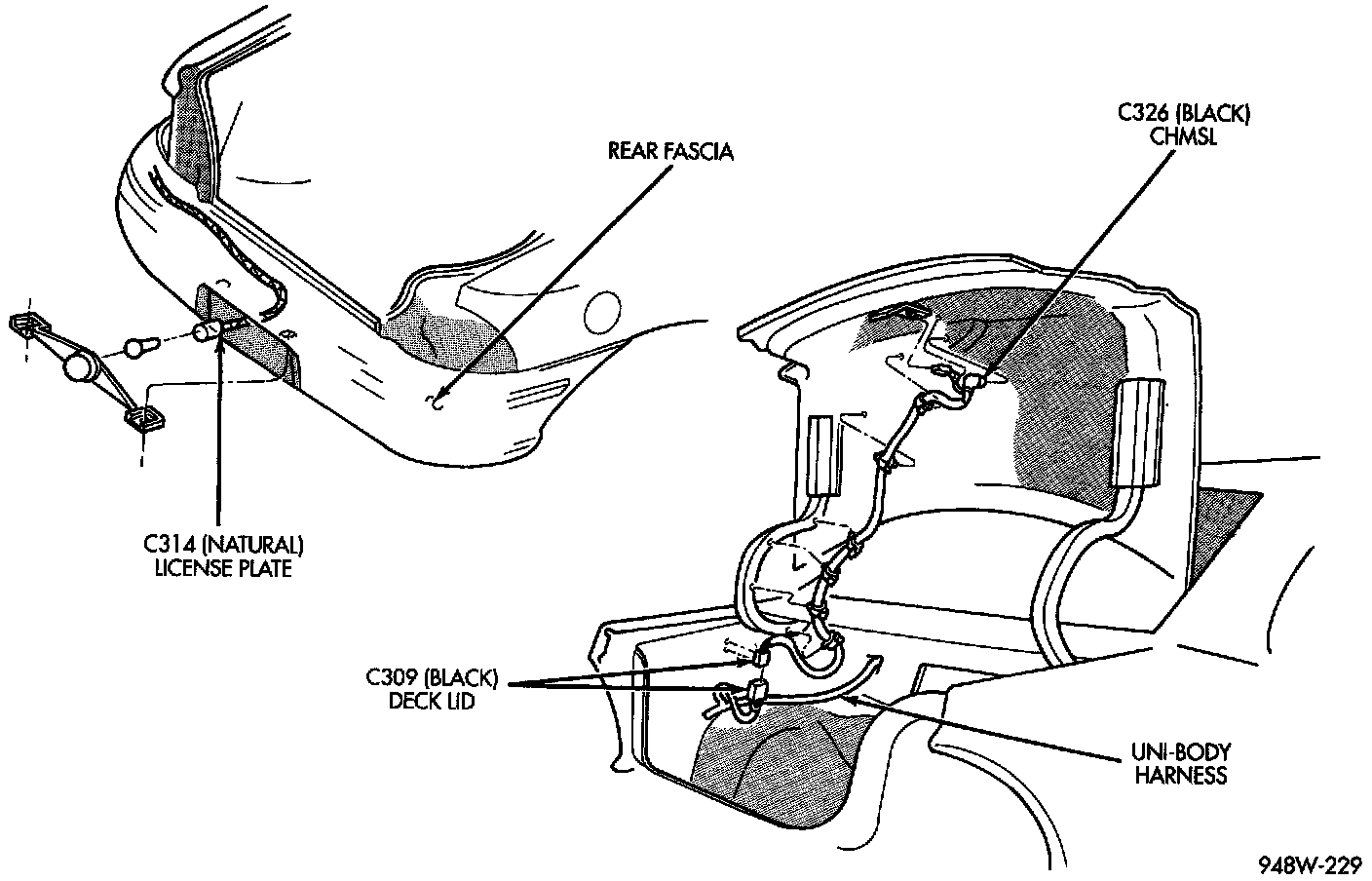

Figure 22

Decklid/Rear Bumper Connections:
