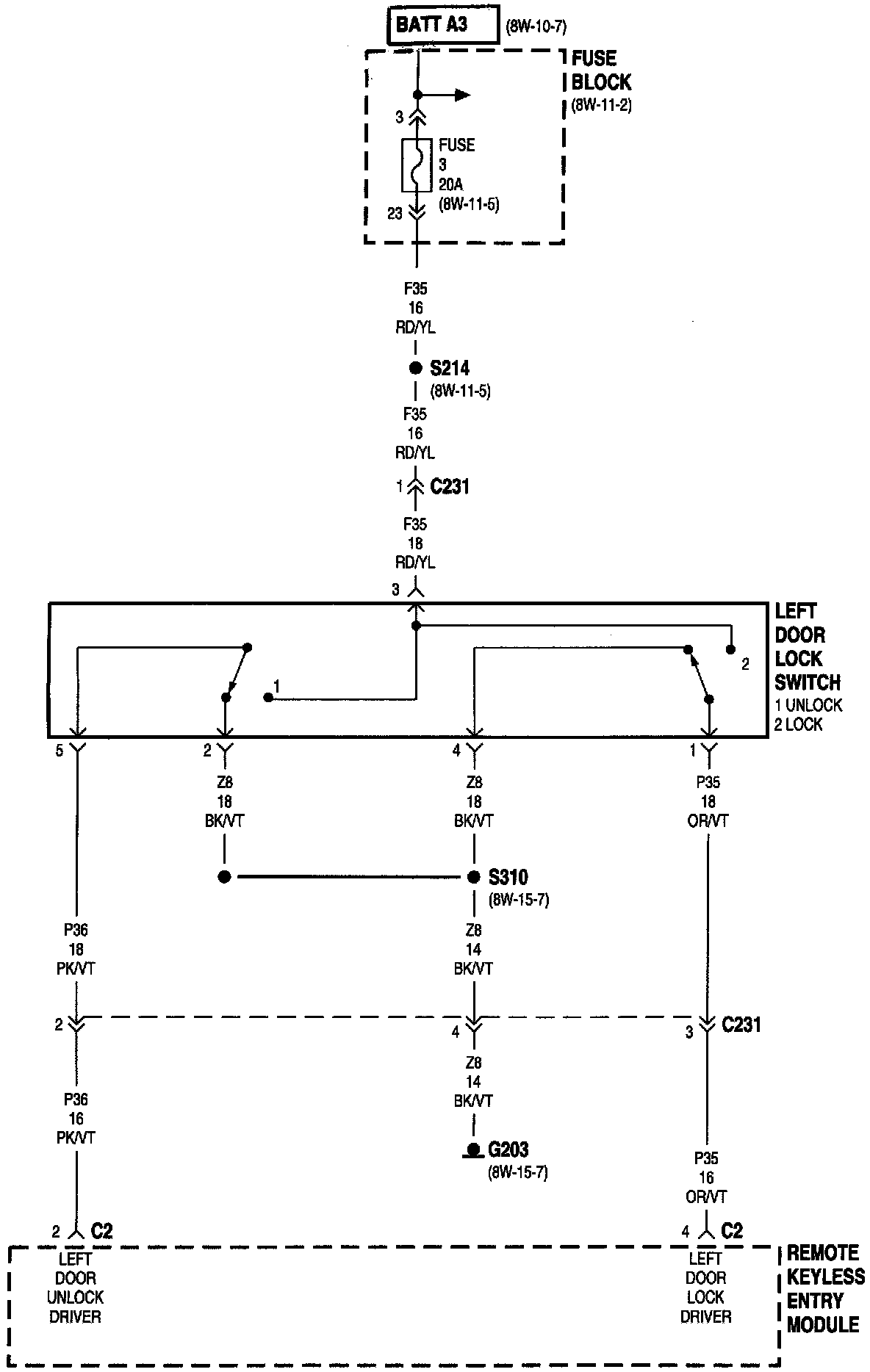

With RKE

Power Door Locks:

Fuse 3 (FB)
Fuse Block
G203
Left Door Lock Switch
RKE Module

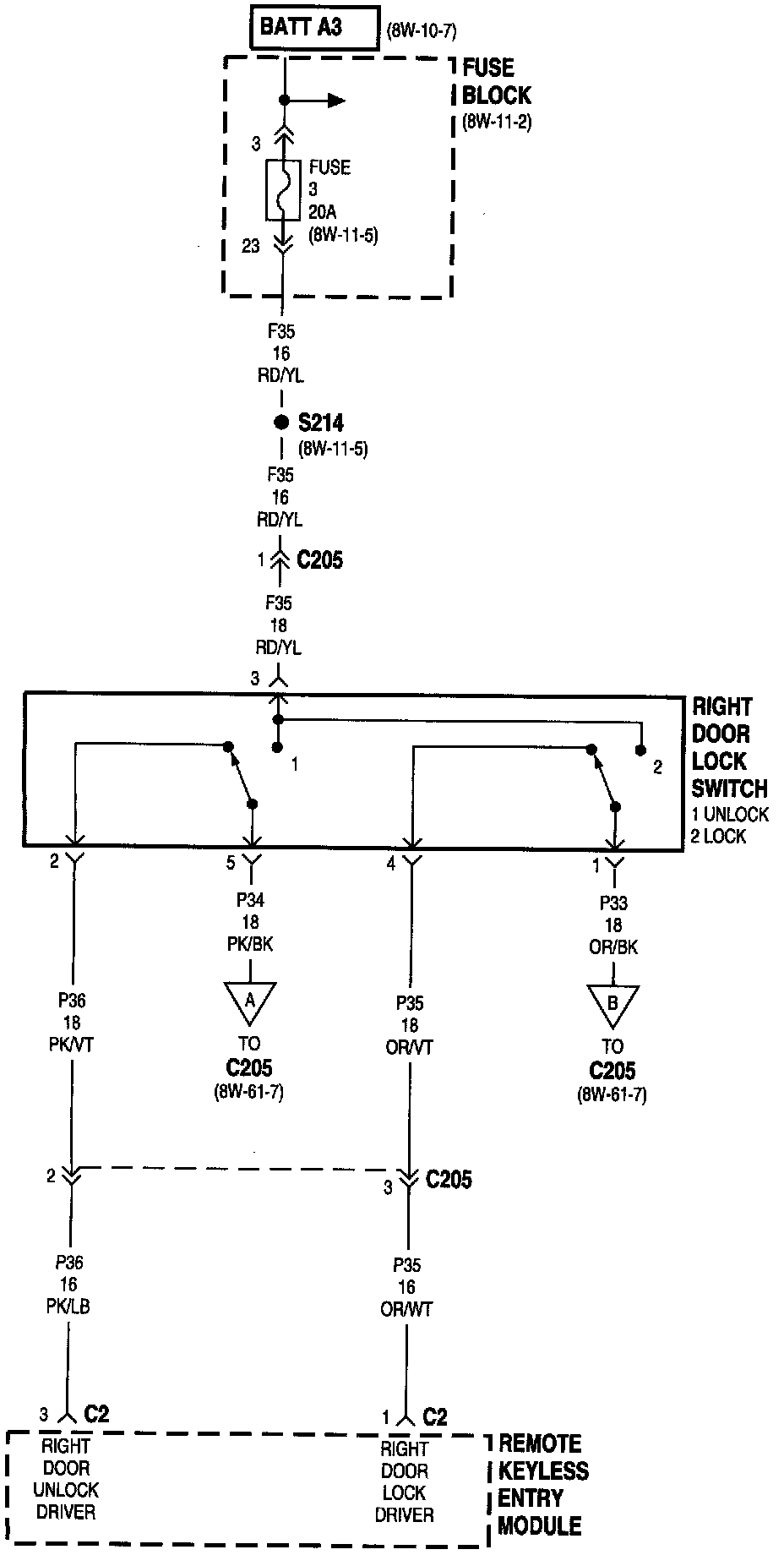

Power Door Locks:

Fuse 3 (FB)
Fuse Block
RKE Module
Right Door Lock Switch

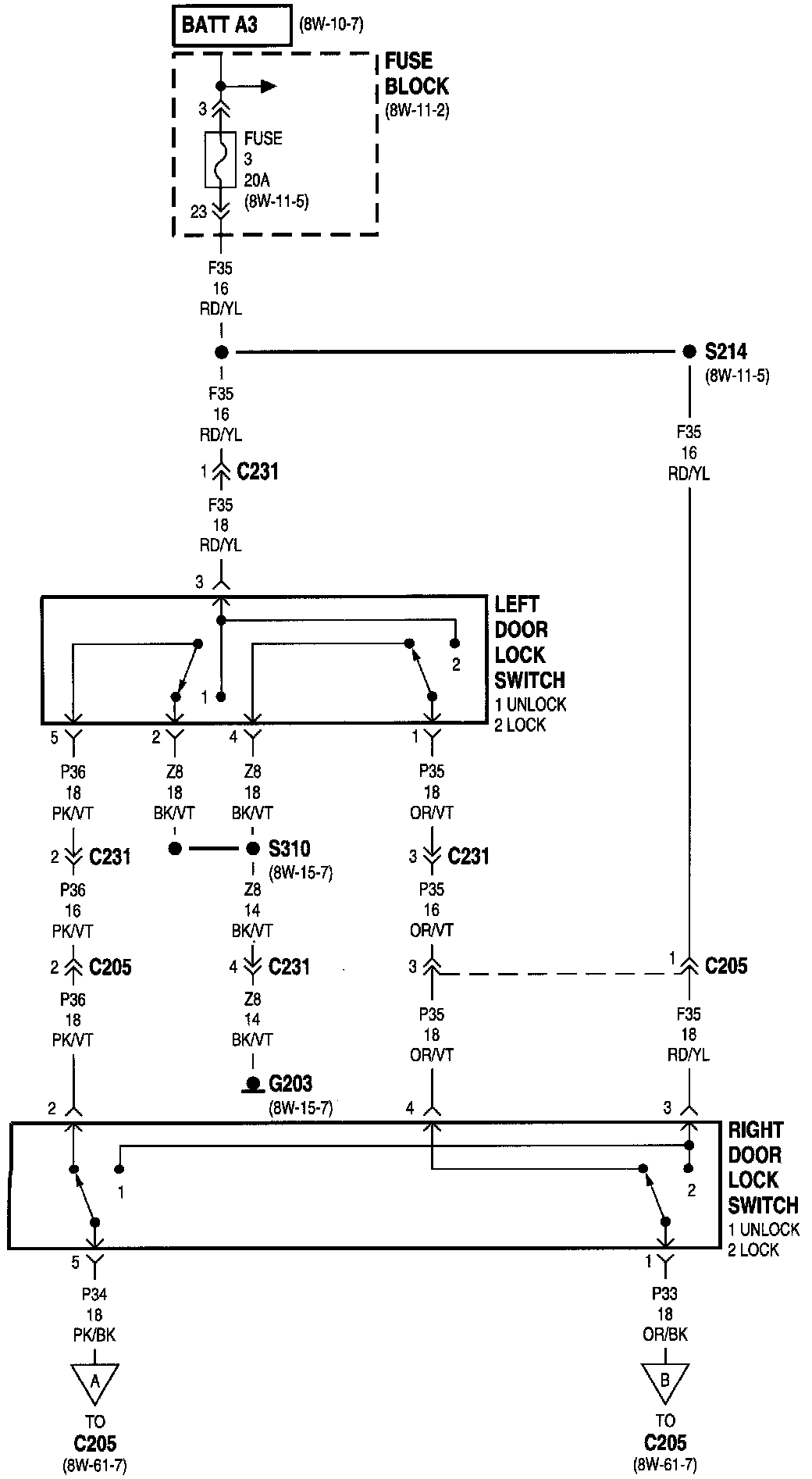

Power Door Locks:

Fuse Block
Fuse 3 (FB)
G203
Left Door Lock Switch
Right Door Lock Switch

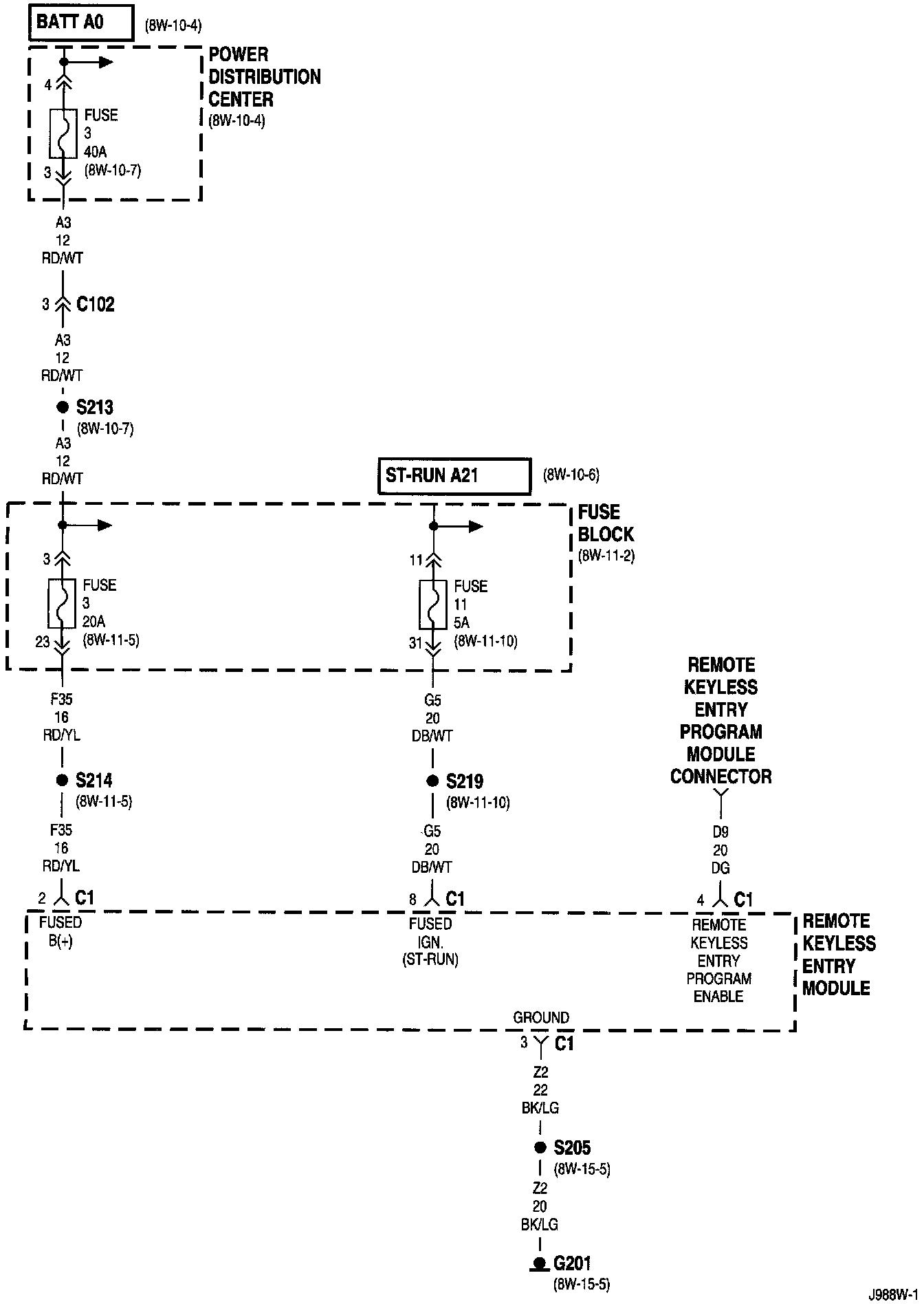

Power Door Locks:

Fuse 3 (FB)
Fuse 3 (PDC)
Fuse 11 (FB)
Fuse Block
G201
RKE Module
RKE Program Module Connector

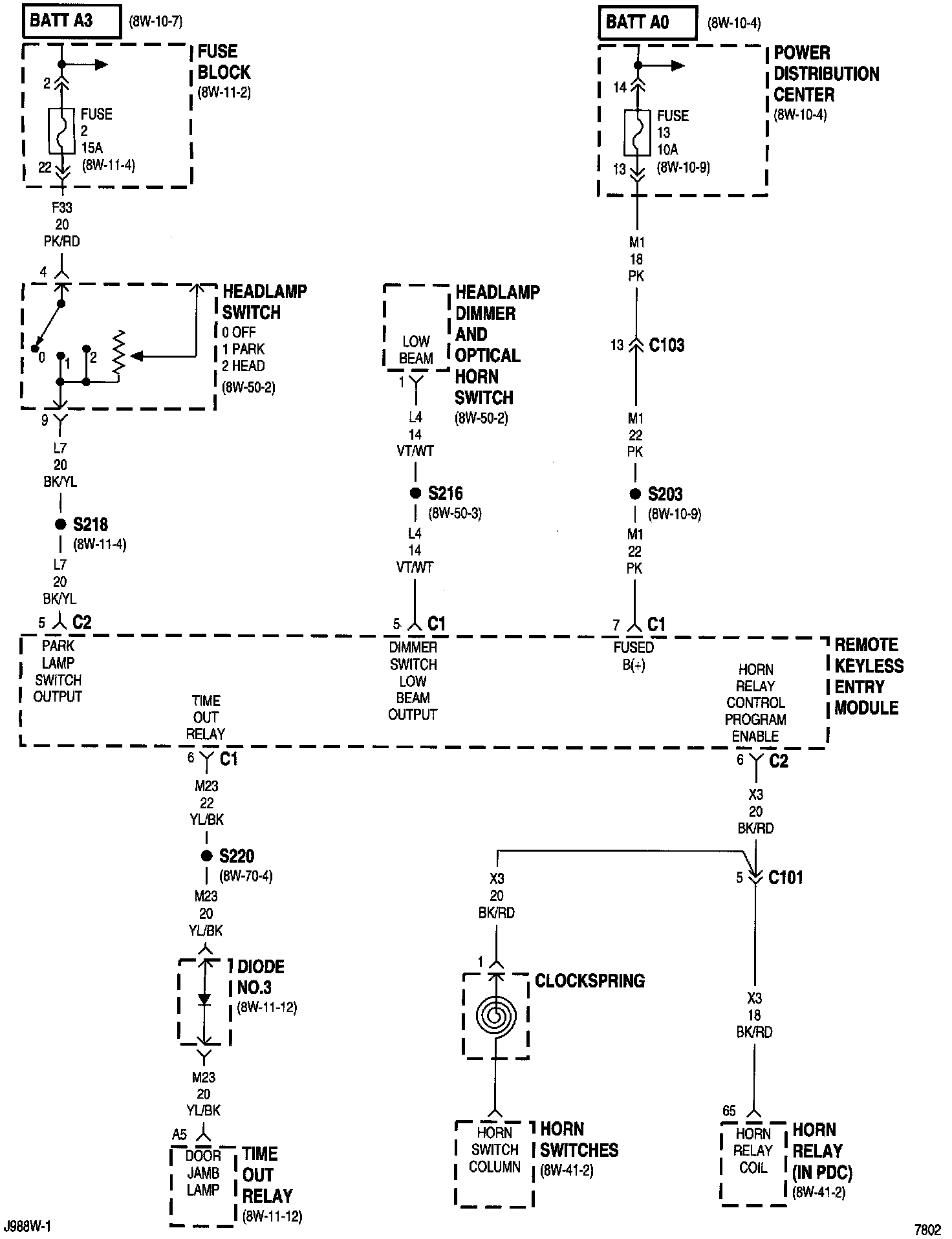

Power Door Locks:

Clockspring
Diode No. 3
Fuse 2 (FB)
Fuse 13 (PDC)
Fuse Block
Headlamp Dimmer And Optical Horn Switch
Headlamp SWitch
Horn Relay
Horn Switches
Power Distribution Center
RKE Module
Time Out Relay

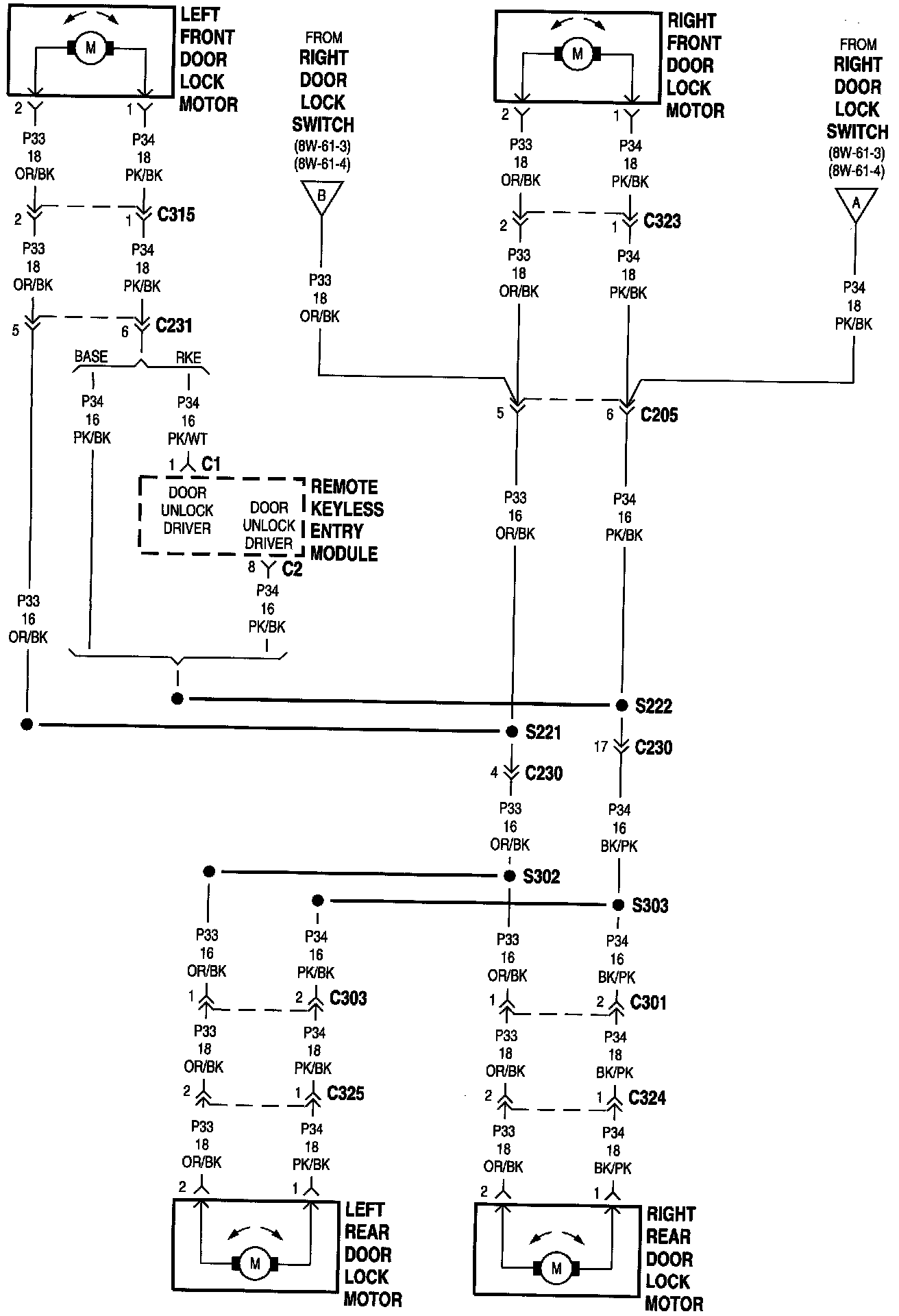

Power Door Locks:

Left Front Door Lock Motor
Left Rear Door Lock Motor
RKE Module
Right Front Door Lock Motor
Right Rear Door Lock Motor


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
