Home >> Dodge >> 1998 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Dashboard / Instrument Panel >> Service and Repair >> Instrument Panel Speakers

Instrument Panel Speakers

REMOVAL

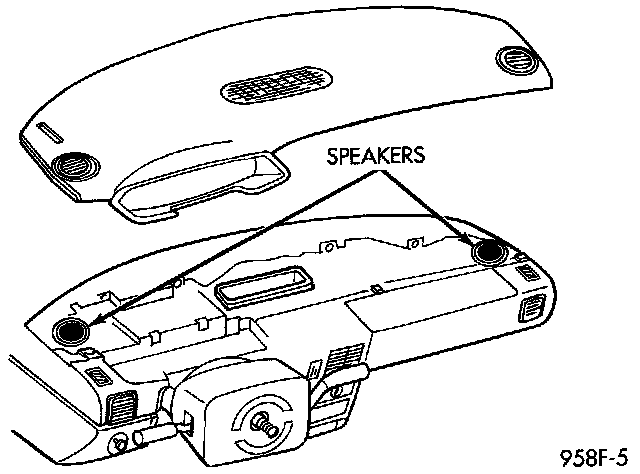

Instrument Panel Speakers:




1. Remove instrument panel top cover and cluster bezel.
2. Remove speaker retaining screws.
3. Remove speaker and disconnect wire connector.

INSTALLATION
- For installation reverse the above procedures.
