Rear Shelf Speaker (S)

REMOVAL
1. Remove rear seat and seat back. Remove seat cushion, seat back and seat belt anchor bolts.
2. Pry out the seat belt trim bezel along the rearward edge.
3. Partially remove the shelf trim panel slipping it down to the seat back position.

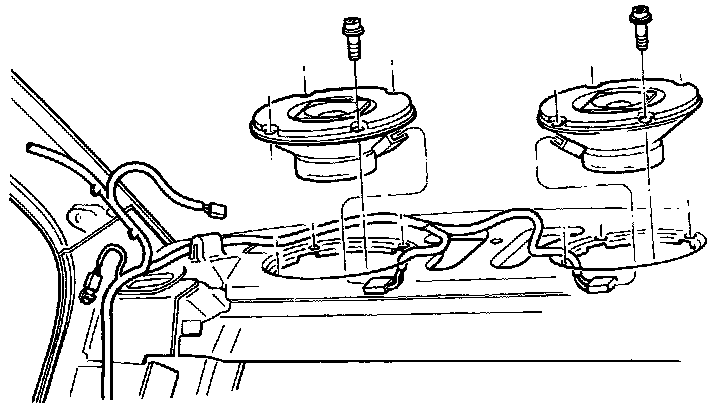

Rear Shelf Speaker:

4. Remove four speaker retaining screws.
5. Remove speaker and disconnect wire connector.

INSTALLATION
- For installation reverse the above procedures. Position speakers so that the wire connectors are pointing to the drivers side of car.
