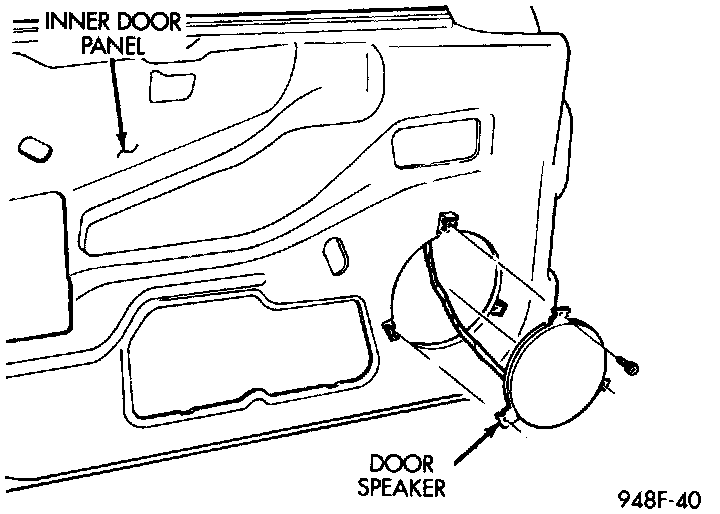

Front Door Speaker
REMOVAL1. Remove door trim panel.
Front Door Speaker:
2. Remove three speaker retaining screws.
3. Remove speaker assembly and disconnect wire connector.
INSTALLATION
- For installation reverse the above procedures.
1. Remove door trim panel.
2. Remove three speaker retaining screws.
3. Remove speaker assembly and disconnect wire connector.
INSTALLATION
- For installation reverse the above procedures.
