Home >> Dodge >> 1998 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 4A Repairing Either Squib Circuit Shorted to Battery

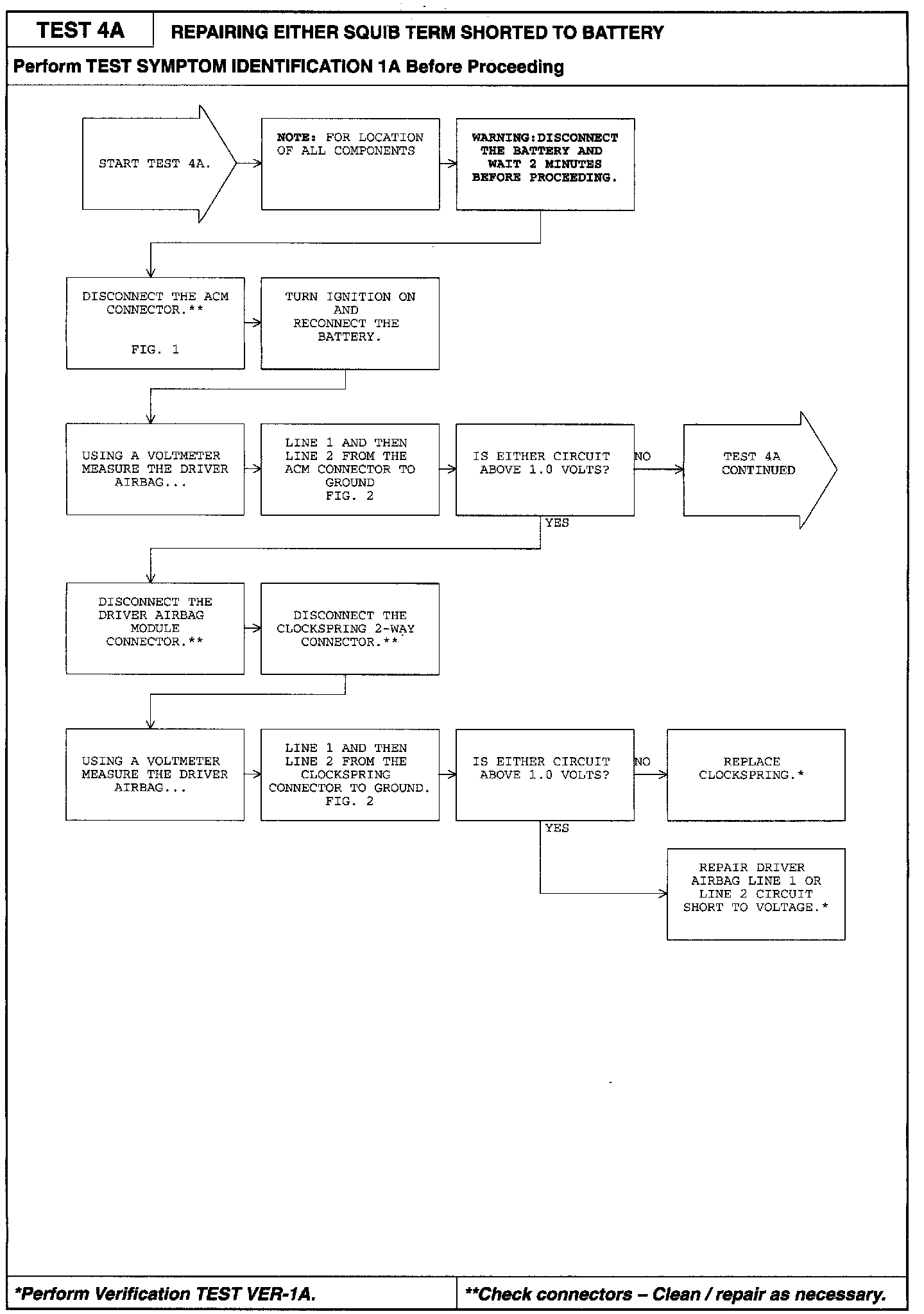

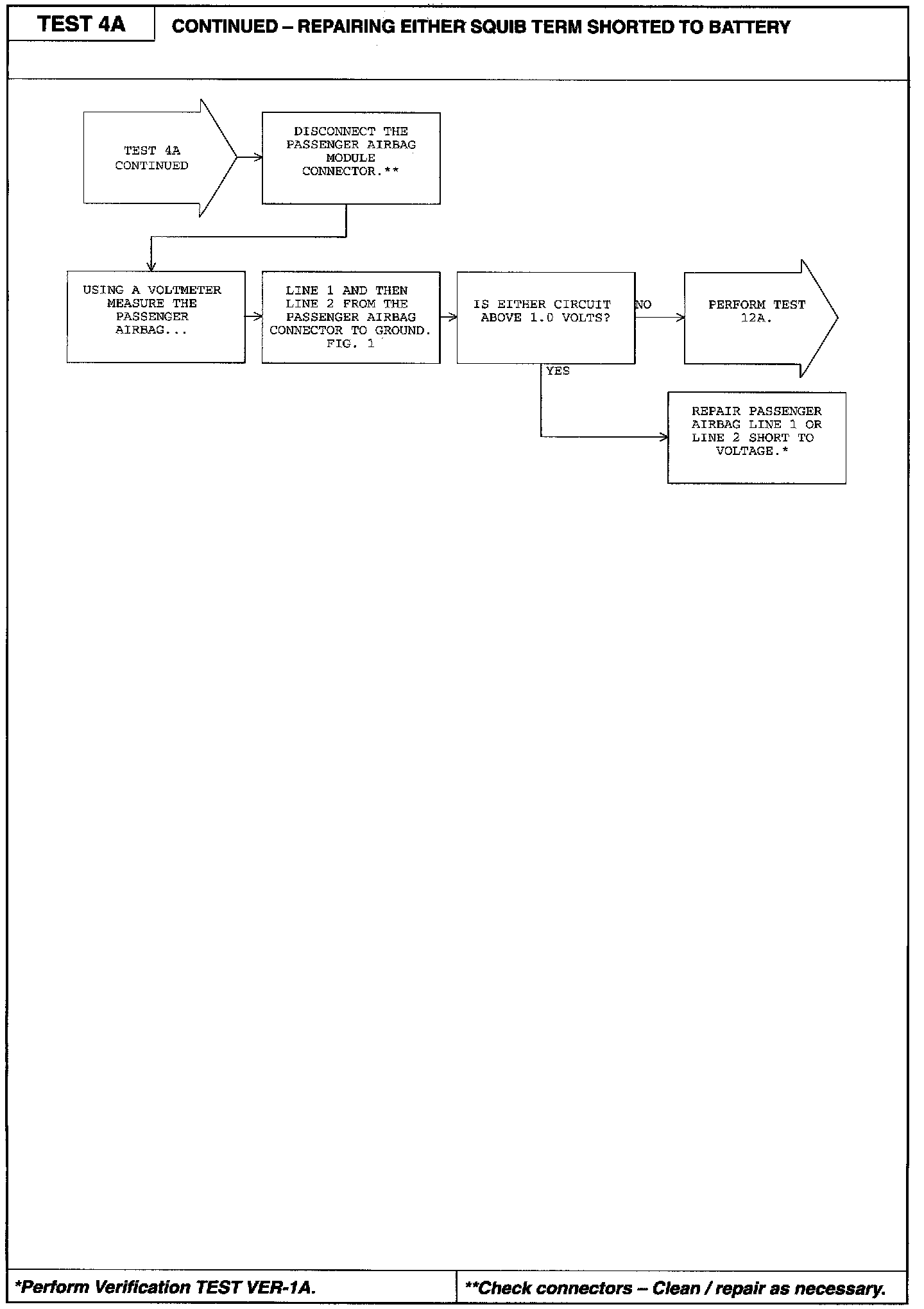

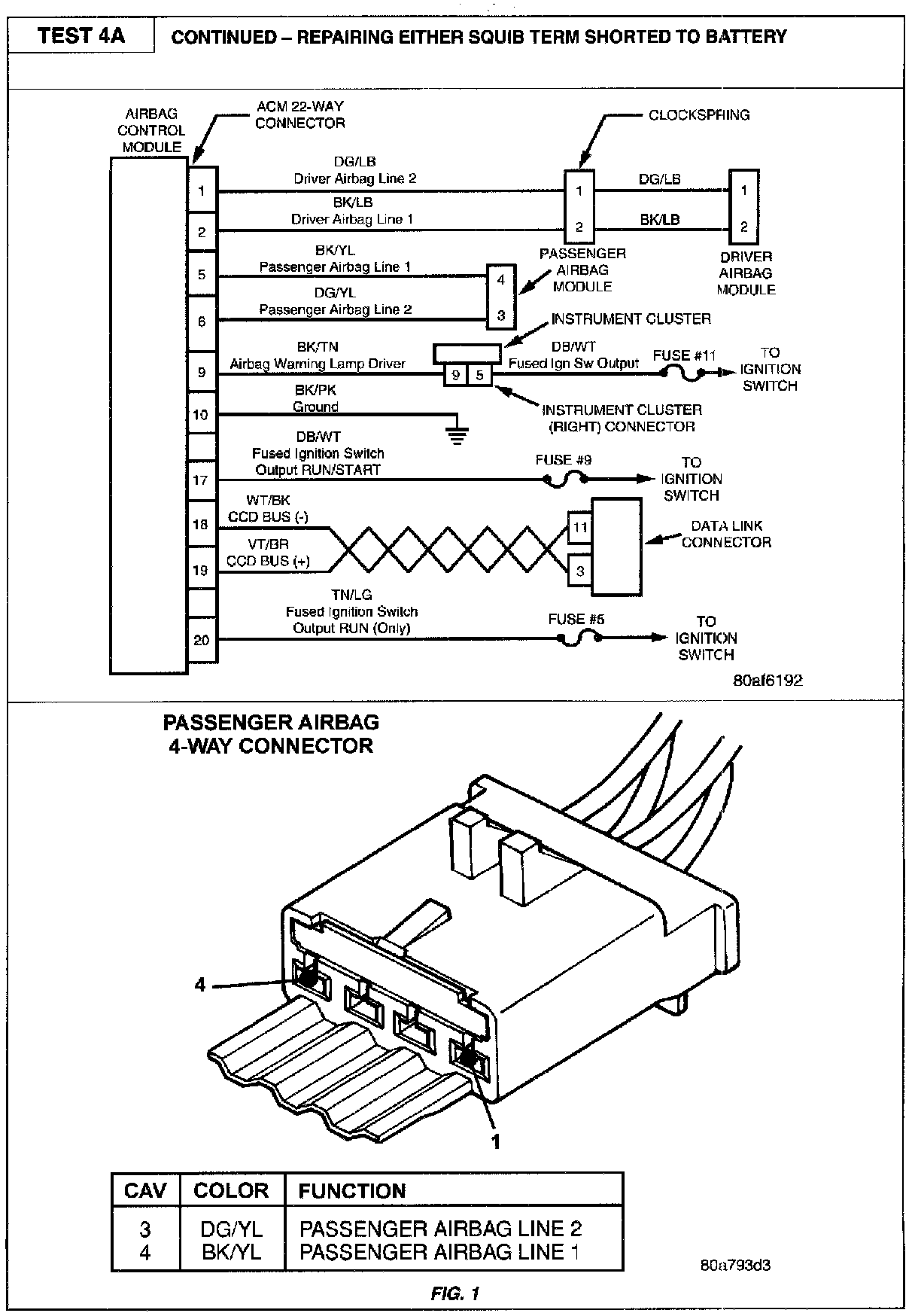

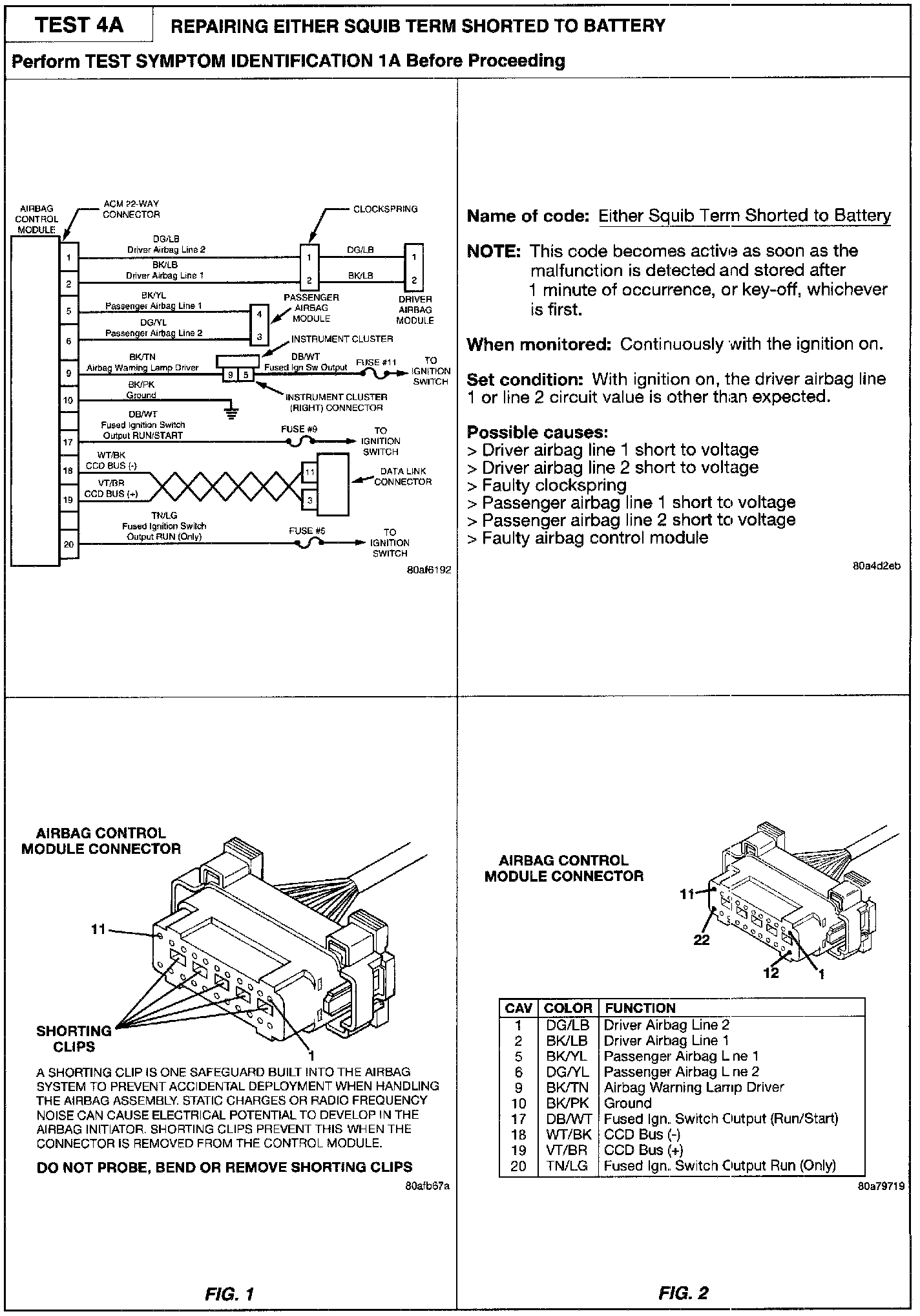

4A Repairing Either Squib Circuit Shorted to Battery








Part 1








Part 2
