Gearshift Boot Replacement






REMOVAL
1. Remove shifter knob. Refer to gearshift knob removal.

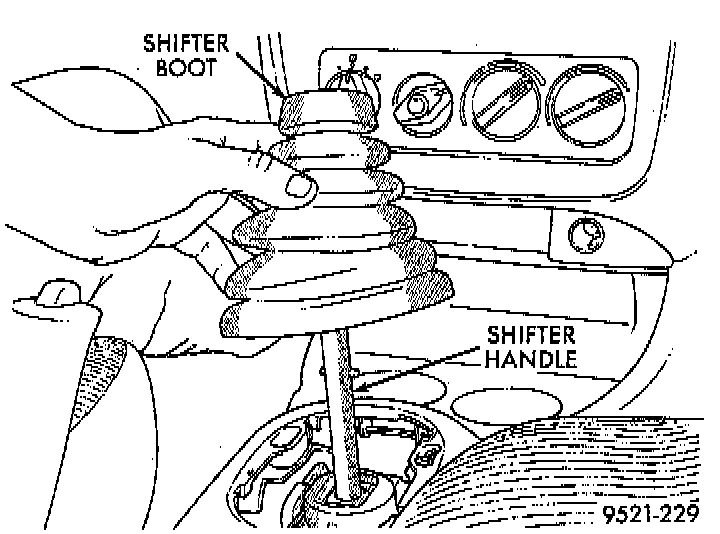

2. Squeeze together the boot bezel at base. Pull up on boot and remove.

INSTALLATION
For installation, reverse removal procedure.
