Differential Bearing Cups

REMOVAL
1. Remove differential assembly from gear case.

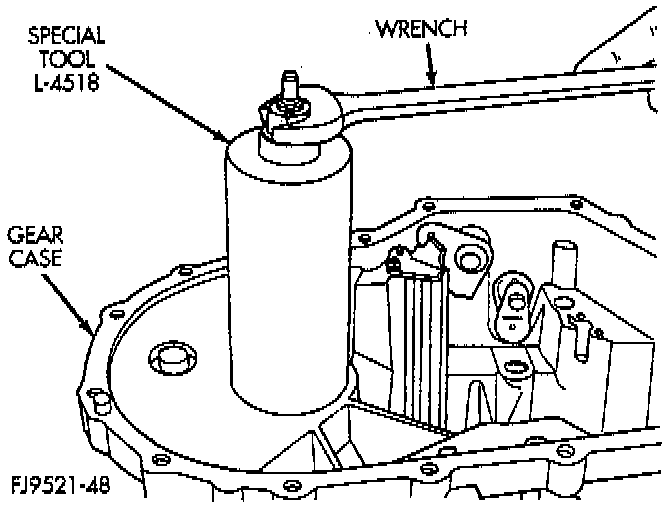

2. Install Miller tool #L-4518, or equivalent into the differential bearing cup.





3. Install the tool cup over the tool.
4. Tighten the tool until the race is removed from the case.

INSTALLATION
1. Position the bearing cup into the case.
2. Install the bearing cup onto Miller tool #L-4520, or equivalent.
3. Using Miller tool #L-4520 and C-4171, or equivalents driver, install differential bearing cup into the transaxle case.
