Fog/Driving Lamp: Adjustments

Lamp Alignment Screen:

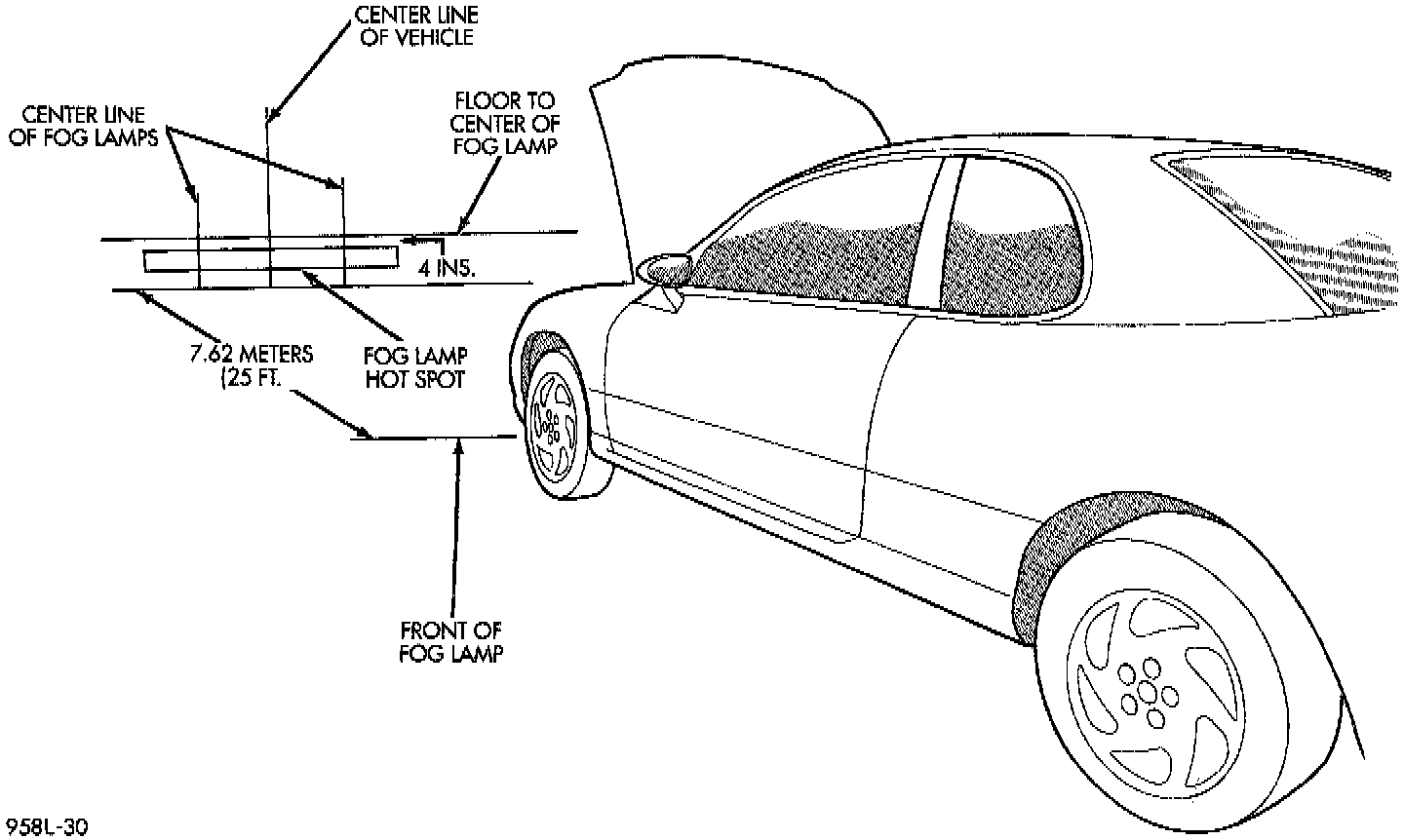

FOG LAMP ALIGNMENT
Prepare an alignment screen. Disengage the wire connectors from the back of the headlamp bulbs to disable the headlamps. This will allow a more accurate projection reading of the fog lamps. Turn on the headlamp switch and actuate the fog lamp switch. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp centerline and straight ahead.
