Variable Induction Control Actuator: Locations

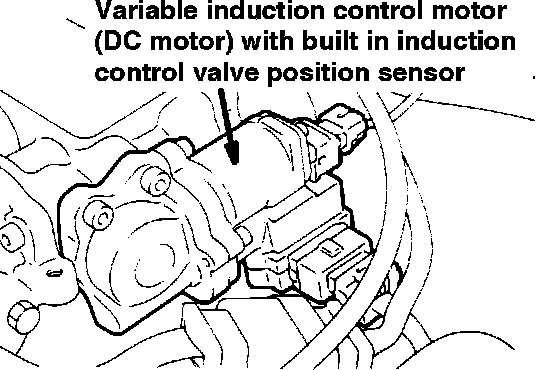

Variable Induction Control Motor:






The Variable Induction Control Servo is mounted on the intake manifold, at the opposite end from the throttle body assembly.
