Trim Panel: Service and Repair

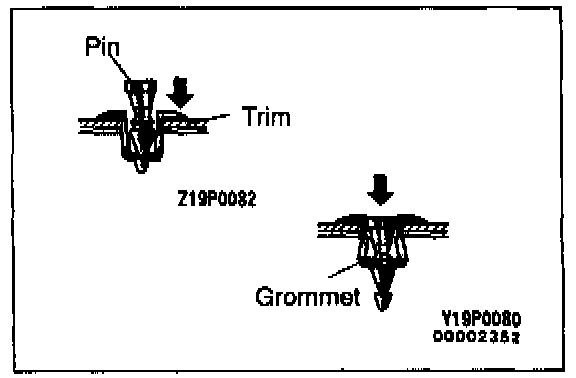

TRIM CLIP REMOVAL AND INSTALLATION PROCEDURES
The type of clip shown in the illustration should be removed and installed by the following procedures described below.





Removal
1. Use a cross-tip (+) screwdriver to push inward the pin (at the center of the trim clip) to a depth of about 2 mm (.08 in.).
2. Pull the trim clip outward to remove it.

CAUTION: Do not push the pin inward more than necessary be- cause it may damage the grommet, or the pin may fall in, if pushed too far.





Installation
1. With the pin pulled out, insert the trim clip into the hole in the trim.
2. Push the pin inward until the pin's head is flush with the grommet.
3. Check whether the trim is secure.

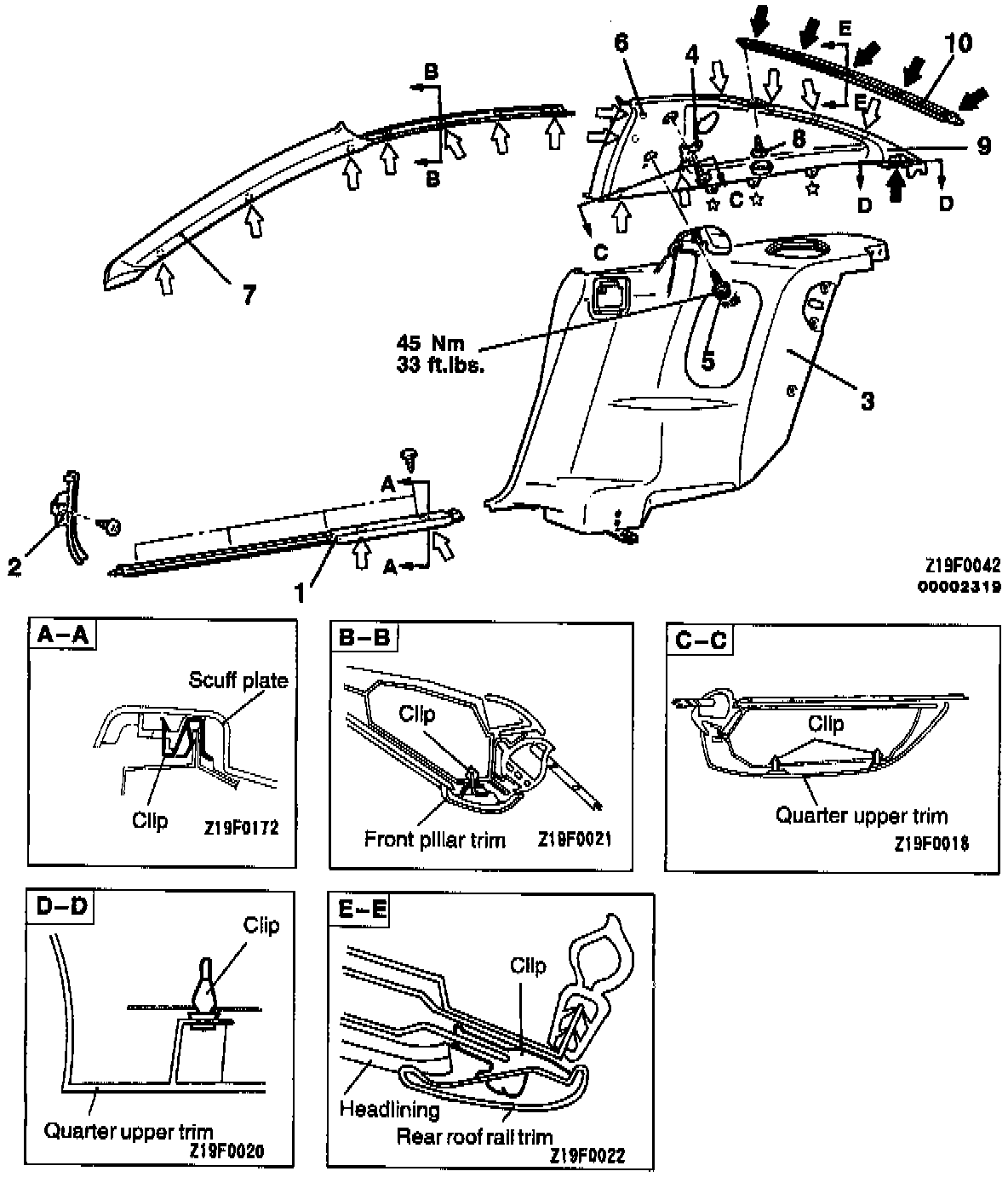

TRIM PANEL REMOVAL AND INSTALLATION





Cowl side trim removal steps
1. Scuff plate
2. Cowl side trim

Front pillar trim removal steps
4. Hanger bracket
5. Sash guide cover mounting bolt
6. Clip
7. Front pillar trim

Quarter upper trim removal steps
3. Quarter trim
4. Coat hanger
8. Screw
9. Quarter upper trim

Rear roof rail trim removal steps
8. Screw
10. Rear roof rail trim

NOTE:
1. Light colored arrows indicate location of metallic clip
2. Dark colored arrows indicate location of resin clip
3. Star indicates trim clip.





Quarter trim removal steps
11. Rear seat
12. Shelf cover assembly
13. Shelf catcher
14. Cover
15. Garnish
16. Sash guide cover mounting bolt
17. Front seat belt anchor plate mounting bolt
18. Retractor cover
19. Rear seat belt anchor plate mounting bolt
20. Screw
21. Quarter trim
22. Rear side trim
23. Quarter trim bracket

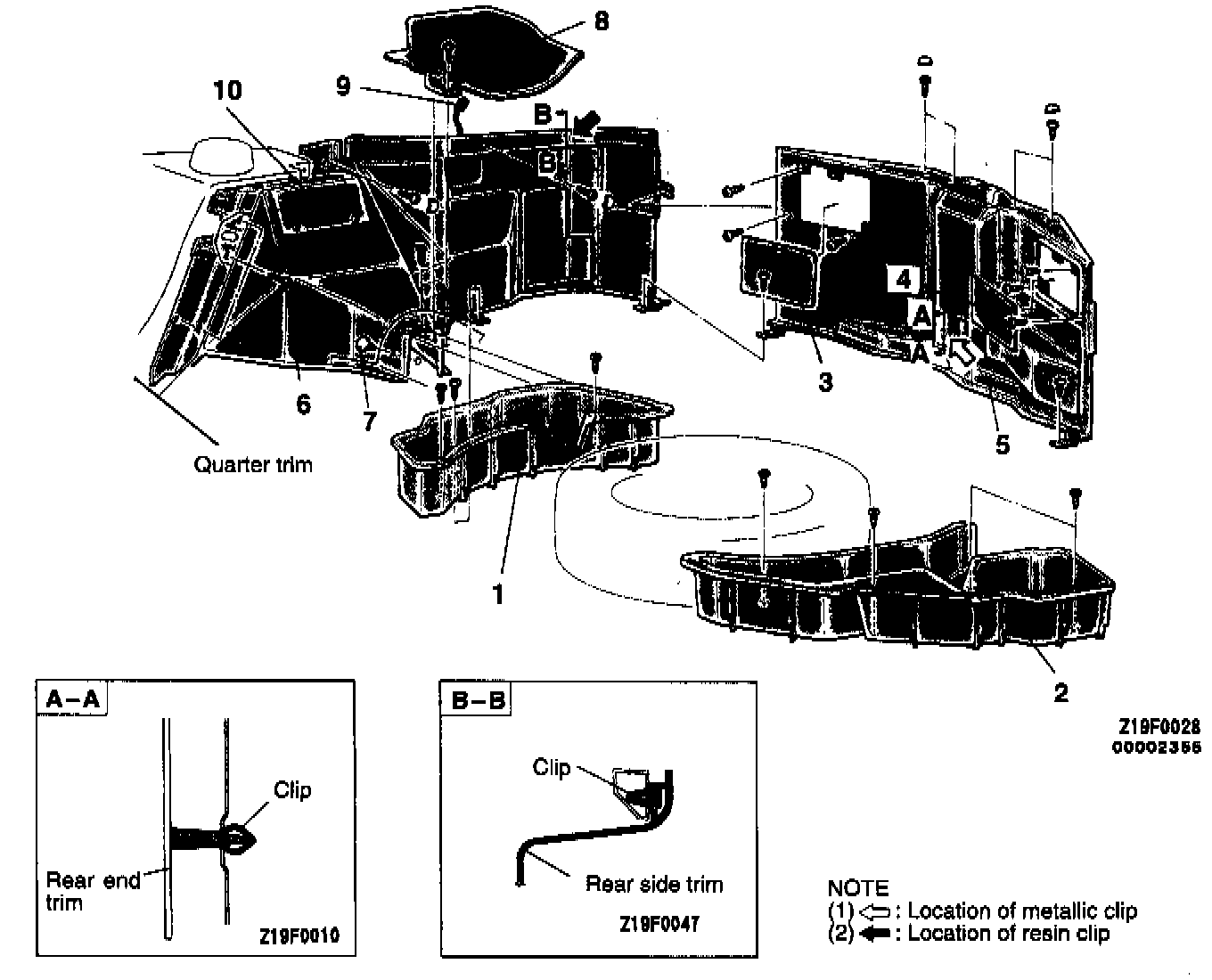

Rear side trim, rear end trim removal steps
1. Luggage compartment floor box (R.H.)
2. Luggage compartment floor box (L.H.)
3. Lid (R.H.)
4. Lid (L.H.)
5. Rear end trim
6. Screws
7. Floor mat mounting clip
8. High floor center board
9. Luggage compartment light connector connection
10. Rear side trim





Liftgate trim removal steps
1. Shelf hook
2. Liftgate lower trim
3. Liftgate upper trim
4. Liftgate side trim

REMOVAL SERVICE POINT

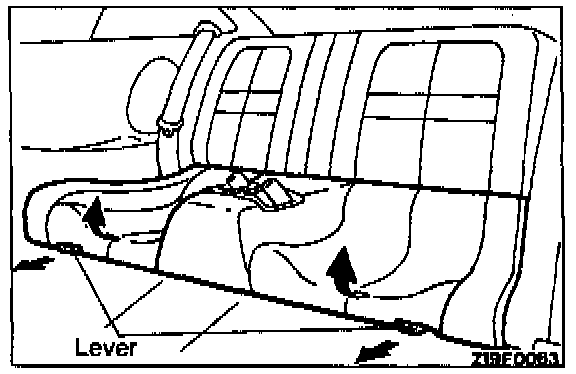

Rear Seat Removal
With the lever pulled forward, raise the seat cushion to remove it.

INSTALLATION SERVICE POINT

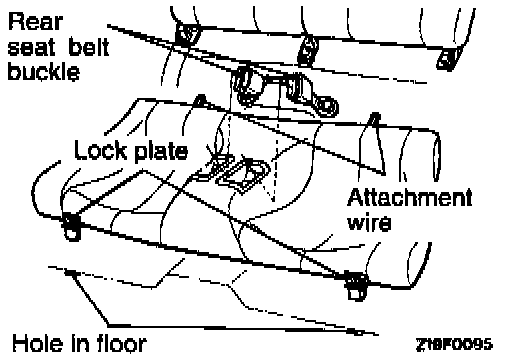

Rear Seat Installation
1. Fit the seat cushion attachment wire under the seat-back positively.
2. Pass the rear seat belt buckles through the seat cushion.
3. Insert the lock plate of seat cushion in the hole provided in the floor positively.
