Front Door Handle: Service and Repair

REMOVAL AND INSTALLATION
- Door Trim and Waterproof Film removal
- Door inside handle removal

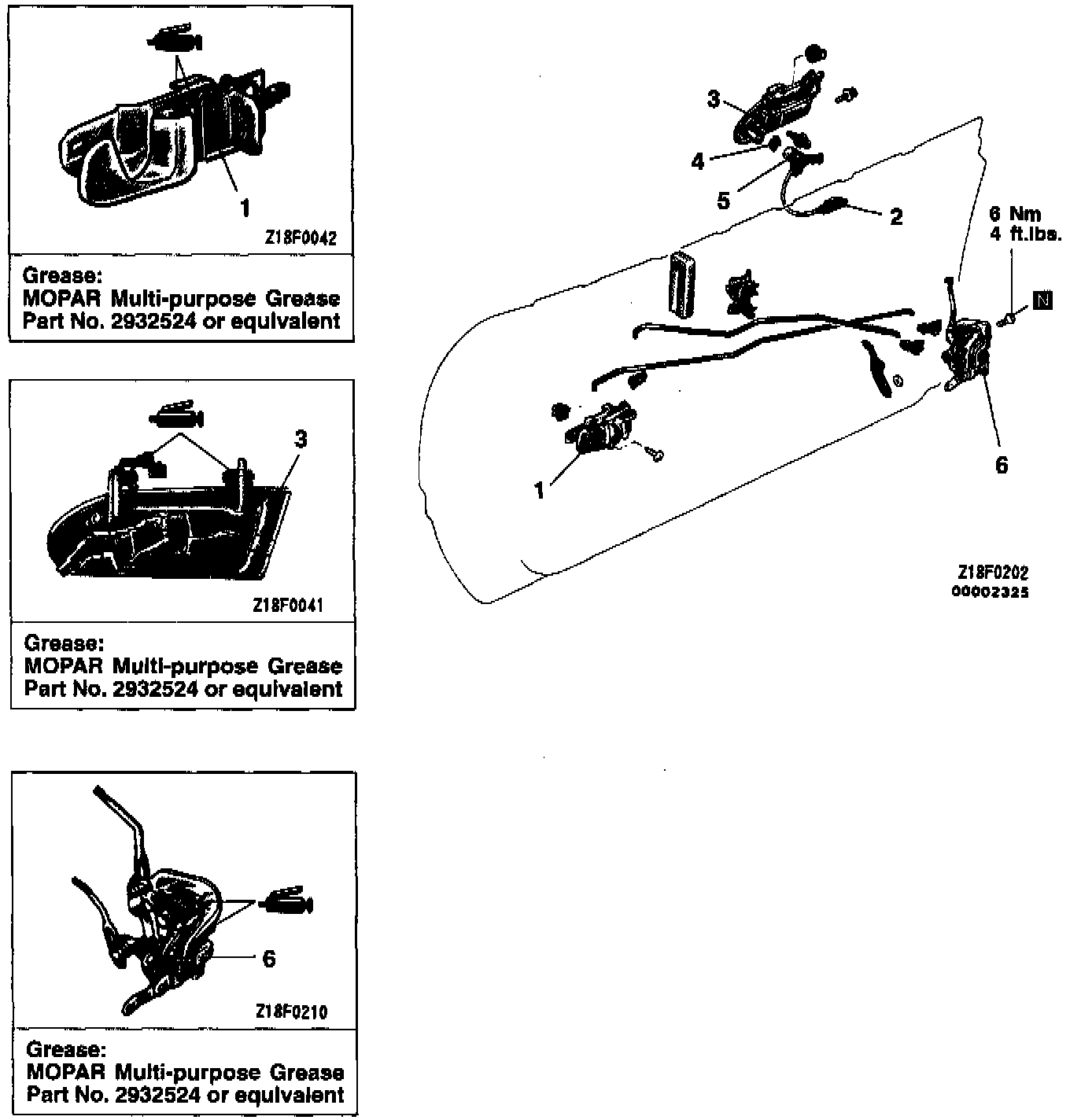

1. Door inside handle
2. Door key cylinder unlock switch connector (Vehicles with central door locking or theft-alarm system)
3. Door outside handle
4. Ring
5. Door lock key cylinder
6. Door latch assembly
