Home >> Dodge >> 1996 >> Stealth R/T V6-2972cc 3.0L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 1, 2 and 3 Digit Codes >> 51

1, 2 and 3 Digit Codes: 51

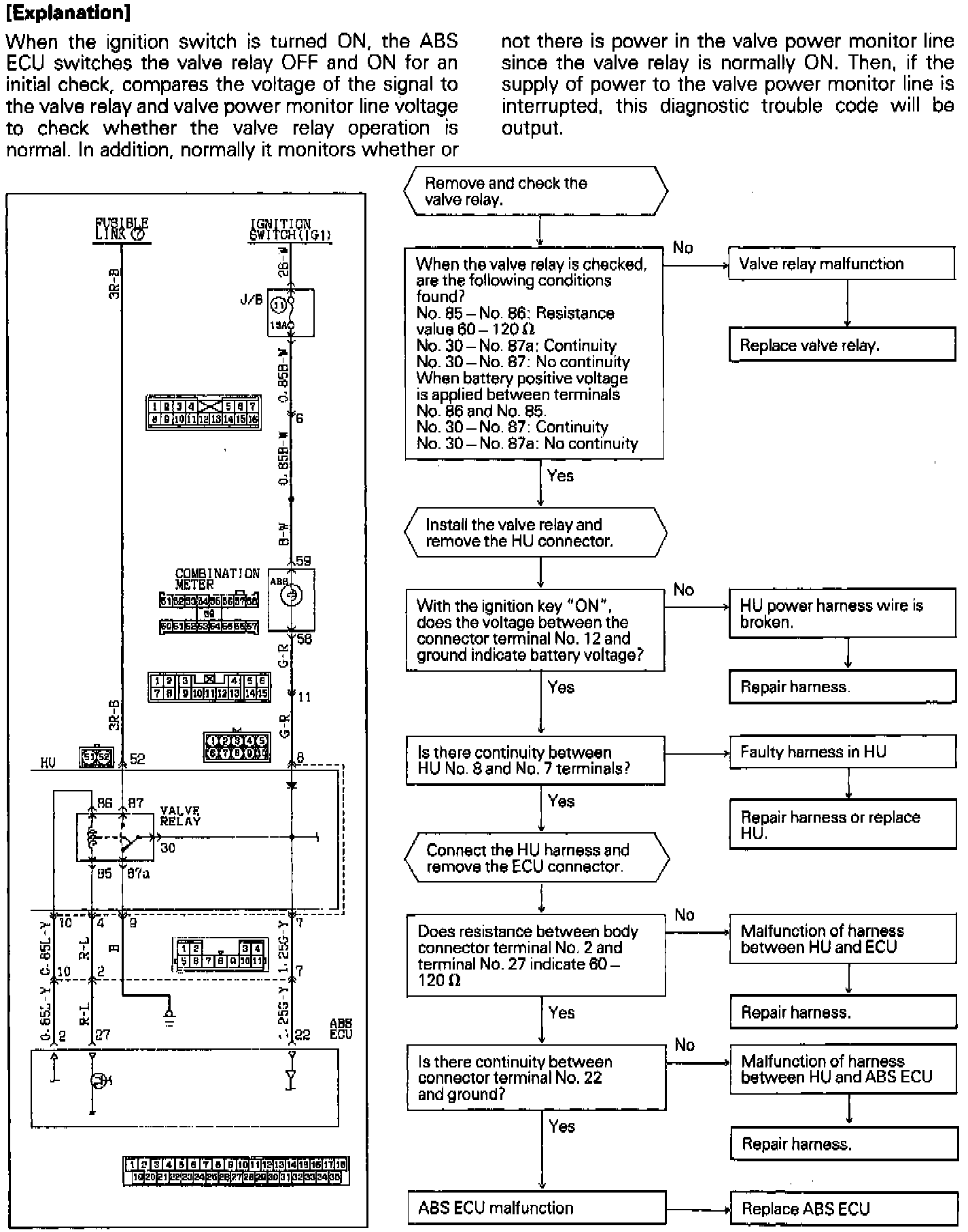

Fig 28 Code 51: ABS Chart E5, Abnormality Of Valve Relay Drive Circuit:
