Rear Wiper Motor Test

Wiper Motor Inspection:

Check the wiper motor with it mounted on the vehicle and with its harness connector disconnected.

Operation of Wiper Motor

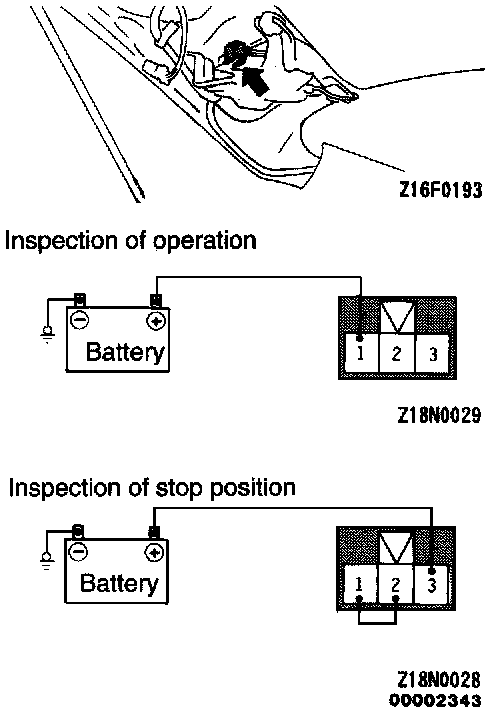

Connect a battery to the wiper motor, as shown, to check the operation of the wiper motor.

Wiper Motor Stop Position
1. Operate the wiper motor by the procedure described above and intermediately disconnect the battery to let the wiper motor stop.
2. Reconnect the battery as shown and check that the wiper motor stops at the automatically-stopped position after operation.
