Symptom Diagnostic Procedures

1. Wipers do not operate.
a. Washer is not operative, either.
- Check multi-purpose fuse No. 9.
- Check ground.
2. Low-speed wiper operation only is inoperative.
- Check wiper switch.
3. Wipers do not stop.
- Check wiper motor.
- Check rear intermittent wiper relay. Testing and Inspection
- Check rear wiper switch.
4. Intermittent wiper operation is inoperative.

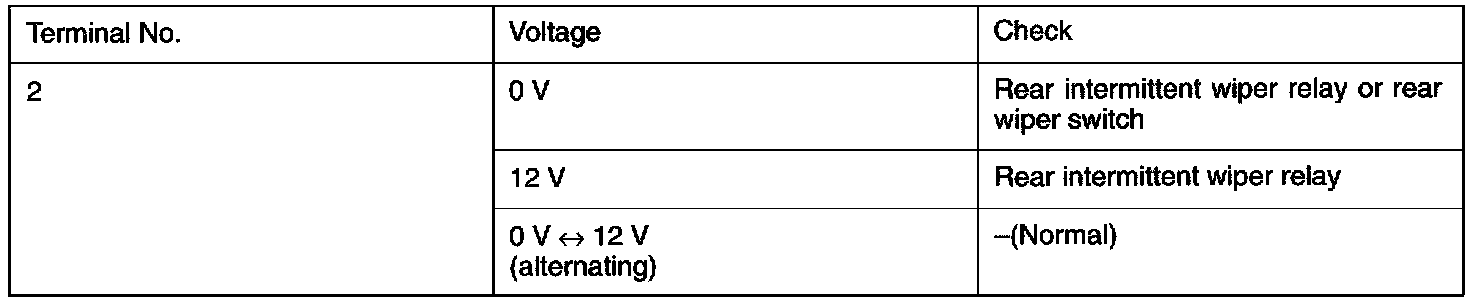

- Check terminal voltage at the rear intermittent wiper relay energized.

Troubleshooting Hints:

5. Washer is inoperative.
- Check washer motor.
- Check washer switch.
