Windshield Wiper and Washer

Windshield Wiper And Washer - Removal And Installation:

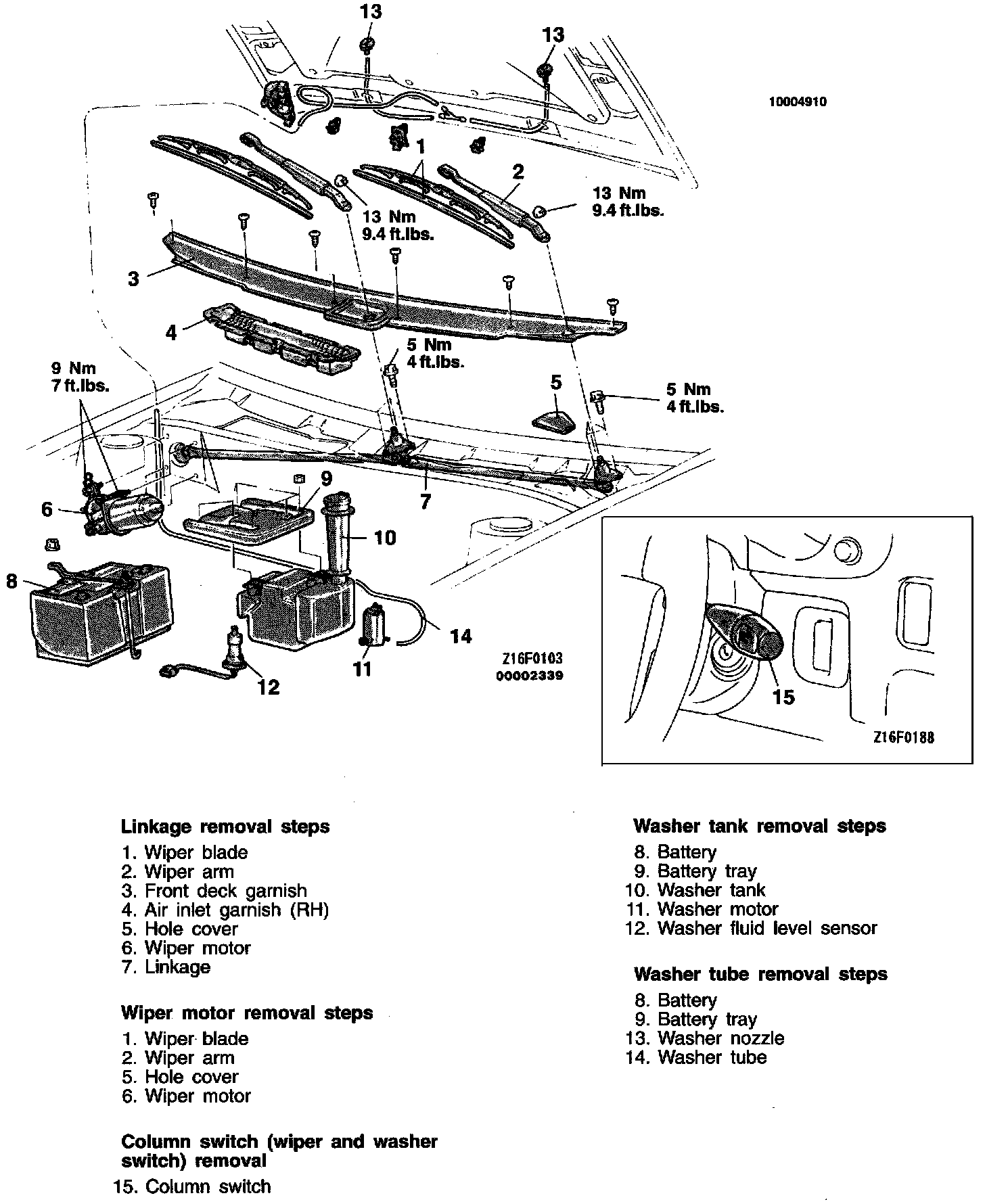

REMOVE
Linkage
1. Wiper blade
2. Wiper arm
3. Front deck garnish
4. Air inlet garnish (RH)
5. Hole cover
6. Wiper motor
7. Linkage

Washer Tank
8. Battery
9. Battery tray
10. Washer tank
11. Washer motor
12. Washer fluid level sensor

Wiper Motor
1. Wiper blade
2. Wiper arm
5. Hole cover
6. Wiper motor

Washer Tube
8. Battery
9. Battery tray
13. Washer nozzle
14. Washer tube

Column Switch (Wiper And Washer Switch)
15. Column Switch,


INSTALL
Linkage
1. Linkage
2. Wiper motor
3. Hole cover
4. Air inlet garnish (RH)
5. Front deck garnish
6. Wiper arm
7. Wiper blade

Washer Tank
8. Washer fluid level sensor
9. Washer motor
10. Washer tank
11. Battery tray
12. Battery

Wiper Motor
1. Wiper motor
2. Hole cover
5. Wiper arm
6. Wiper blade

Washer Tube
8. Washer tube
9. Washer nozzle
13. Battery tray
14. Battery

Column Switch (Wiper And Washer Switch)
15. Column switch,
