Rear Wiper and Washer

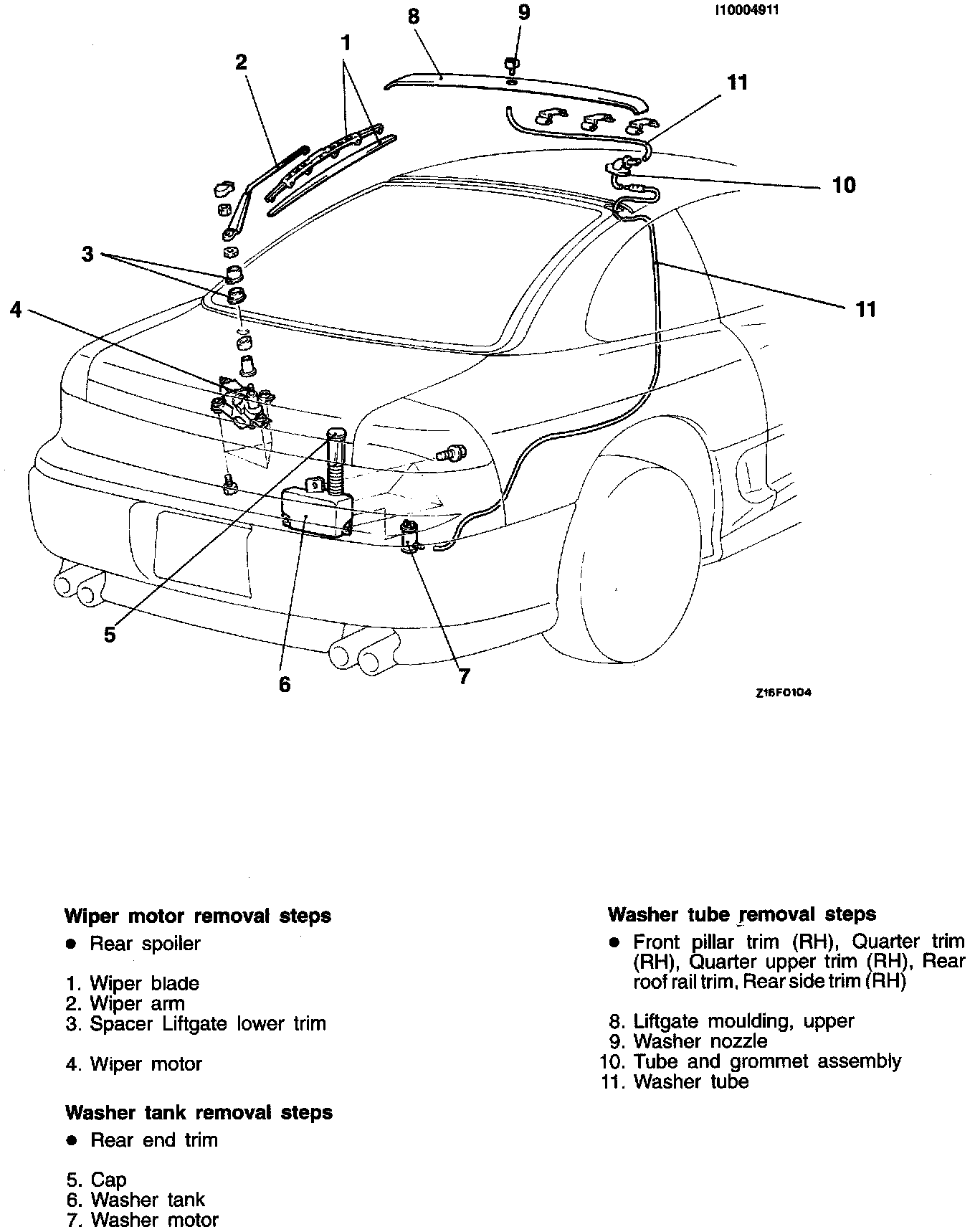

Rear Wiper And Washer - Removal And Installation:

REMOVE
Wiper Motor
1. Wiper blade
2. Wiper arm
3. Spacer Liftgate lower trim
4. Wiper motor

Washer Tank
5. Cap
6. Washer tank
7. Washer motor

Washer Tube
8. Liftgate moulding, upper
9. Washer nozzle
10. Tube and grommet assembly
11. Washer tube

INSTALL
Wiper Motor
1. Wiper motor
2. Spacer Liftgate lower trim
3. Wiper arm
4. Wiper blade

Washer Tank
5. Washer motor
6. Washer Tank
7. Cap

Washer Tube
8. Washer Tube
9. Tube and grommet assembly
10. Washer nozzle
11. Liftgate moulding,upper
