Power Window Relay: Testing and Inspection

1. Remove the knee protector assembly.

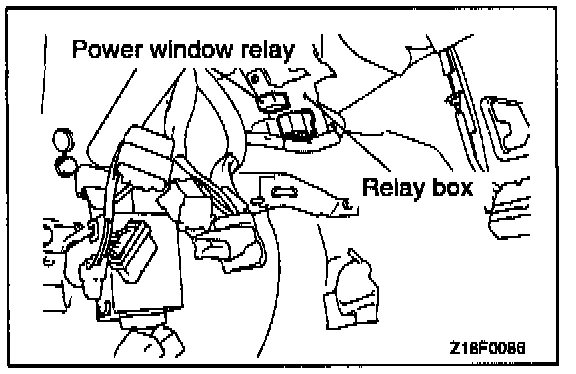

2. Remove the power window relay from indoor relay box.

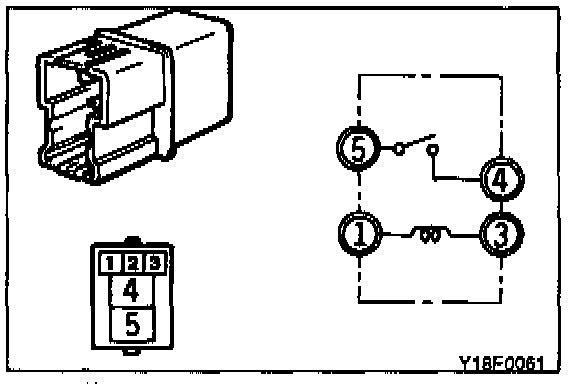

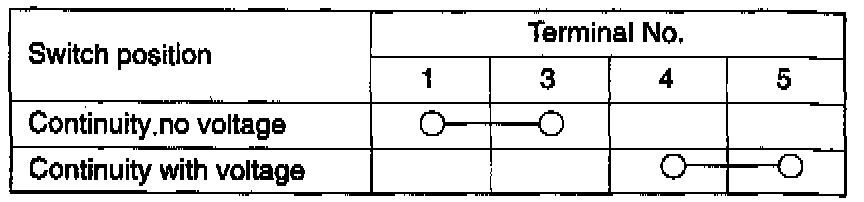

3. Apply battery voltage to terminal 1, and check for continuity when terminal 3 is grounded. If continuity is not as indicated in the chart, replace the relay.
