Overhaul

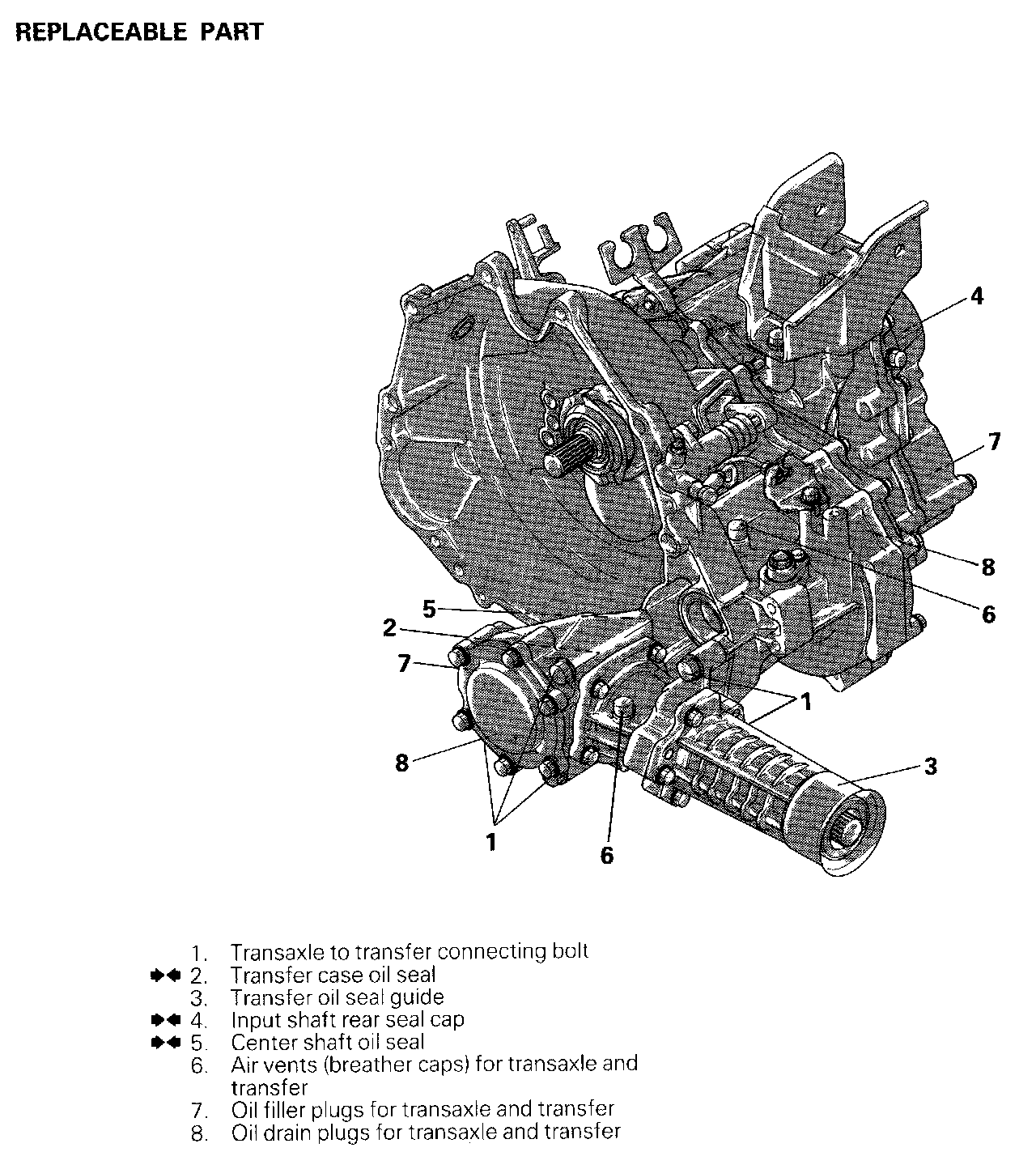

Replaceable Parts:

TRANSAXLE ASSEMBLY

The W5MC1 transaxle cannot be disassembled. If any parts other than describes below are defective, replace the transaxle assembly.

NOTE: The transfer assembly used on these models cannot be serviced. If the transfer assembly, other than the extension housing, dust seal guard at rear oil seal, are found defective complete component replacement is required.
