Transmission Mount: Service and Repair

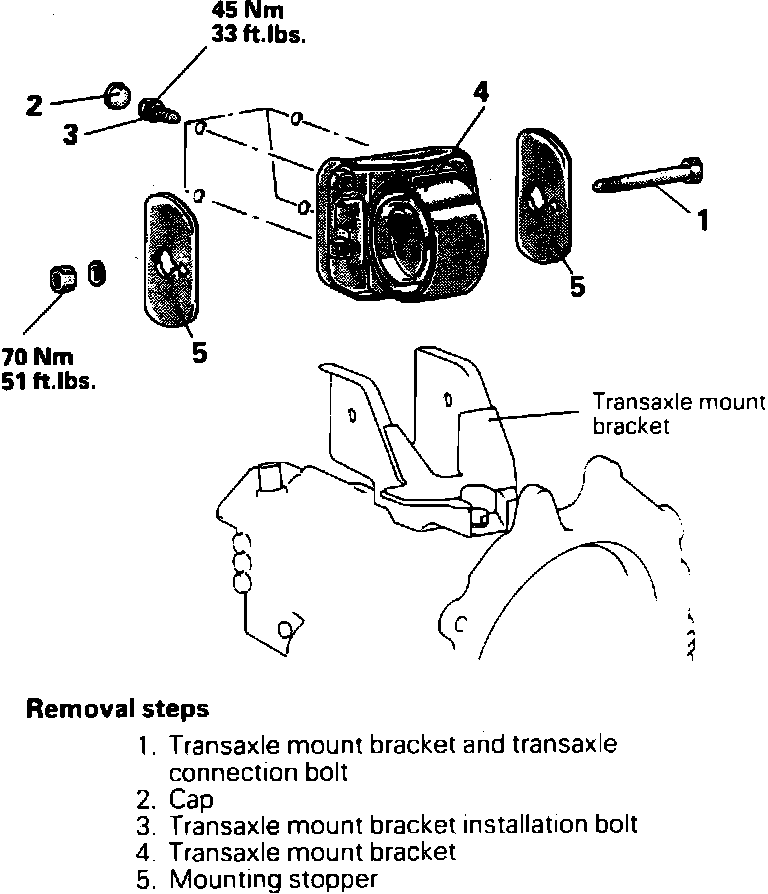

Fig. 3 Transaxle Mount Replacement:

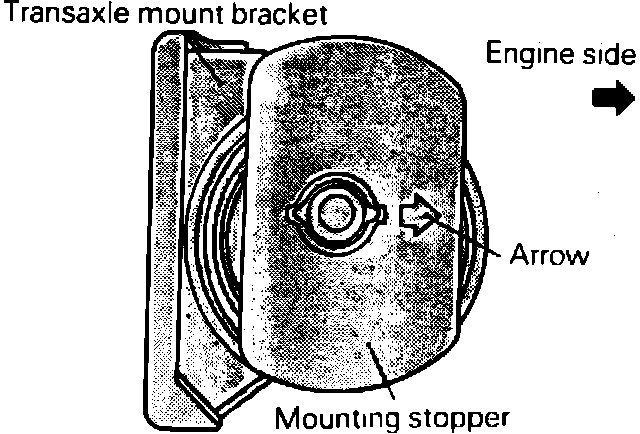

Fig. 4 Installing Transaxle Mount:

1. Raise and support transaxle using suitable support tool.
2. Remove air cleaner assembly.
3. Remove transaxle mount in order shown.
4. Reverse procedure to install, noting the following:
a. When installing transaxle mounting bracket, align arrow on mounting stopper as shown.
