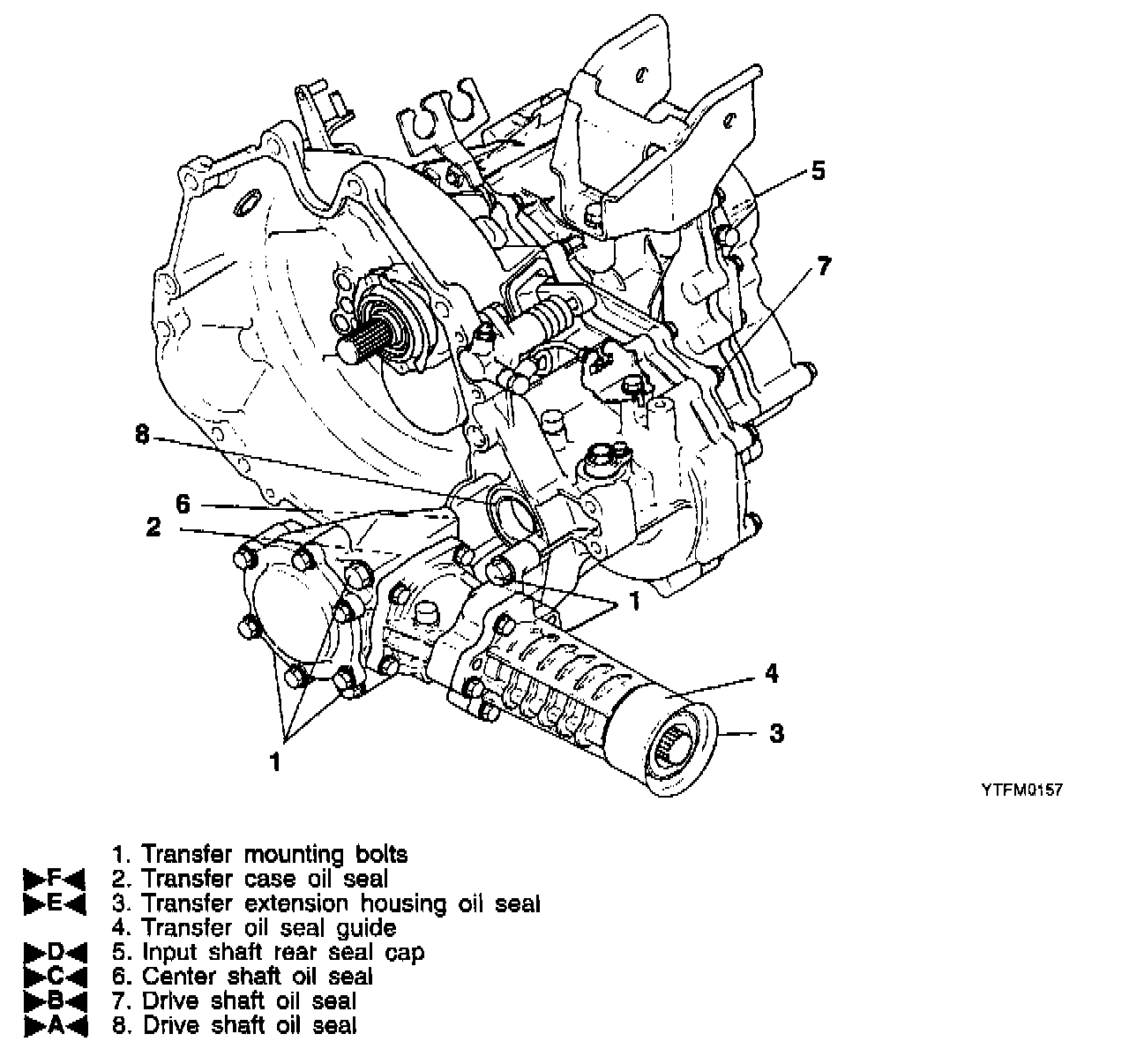

Disassembly and Assembly

NOTE: The W5MG1 transaxle cannot be disassembled. If any parts other than described below are defective, replace the transaxle assembly.

INSTALLATION SERVICE POINTS

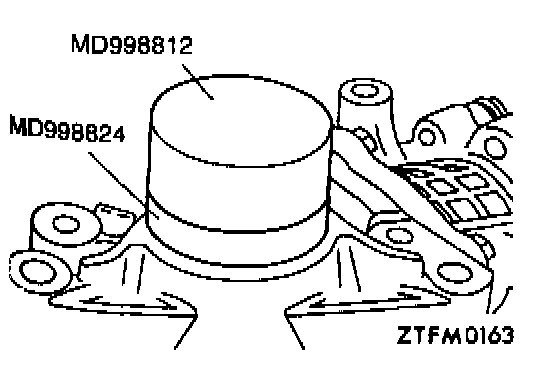

A - DRIVE SHAFT OIL SEAL INSTALLATION




Using the special tool, install the drive shaft oil seal.

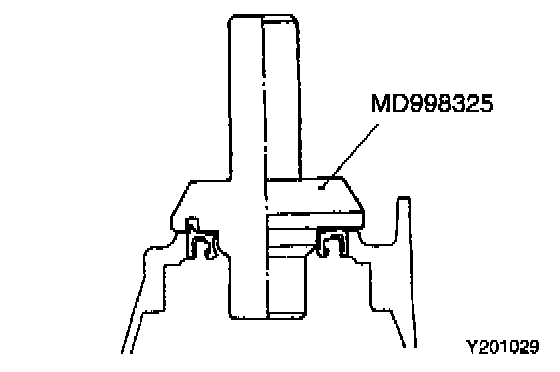

B - DRIVE SHAFT OIL SEAL INSTALLATION



Using the special tool, install the drive shaft oil seal.

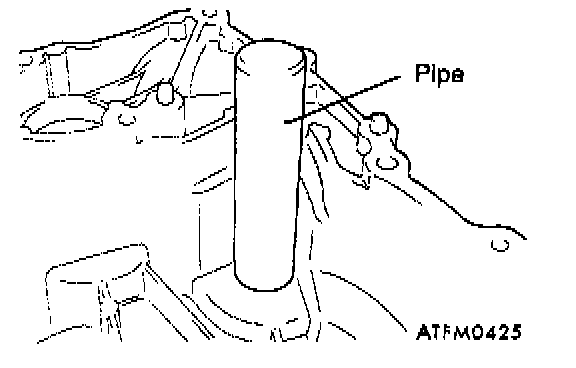

C - CENTER SHAFT OIL SEAL INSTALLATION




Using a pipe shown in the illustration, drive the oil seal until it is flush with the case. Do not drive the oil seal more than necessary.

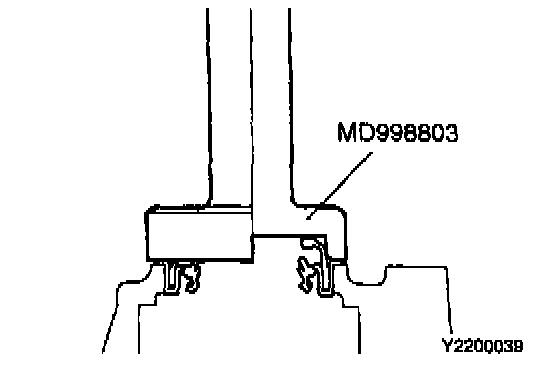

D - INPUT SHAFT REAR SEAL CAP INSTALLATION




Using the special tool, install the input shaft rear seal cap.

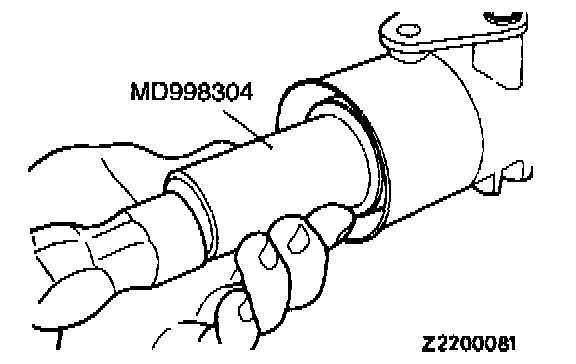

E - TRANSFER EXTENSION HOUSING OIL SEAL INSTALLATION




Using the special tool, install the transfer extension housing oil seal.

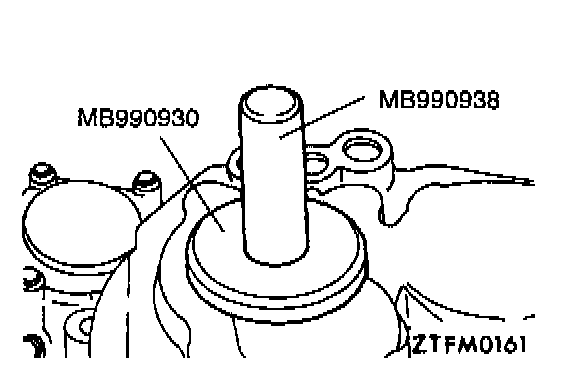

F - TRANSFER CASE OIL SEAL INSTALLATION




Using the special tool, install the transfer case oil seal.
