Clutch Booster

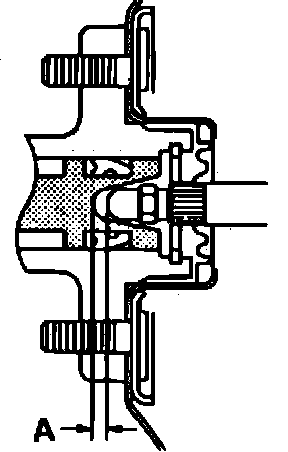

Fig. 4 Clutch Booster Piston To Pushrod Clearance:

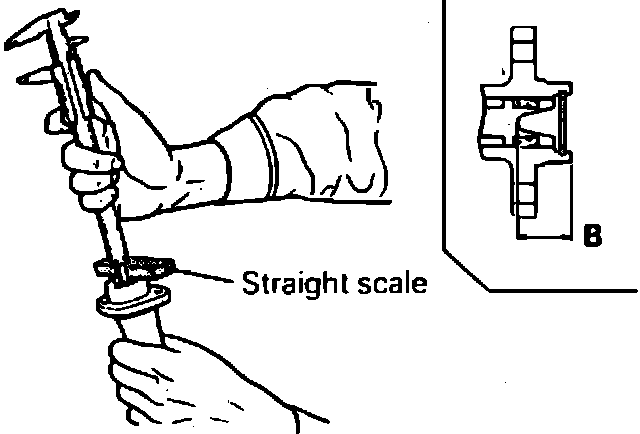

Fig. 5 Location Of Measurement ``B'':

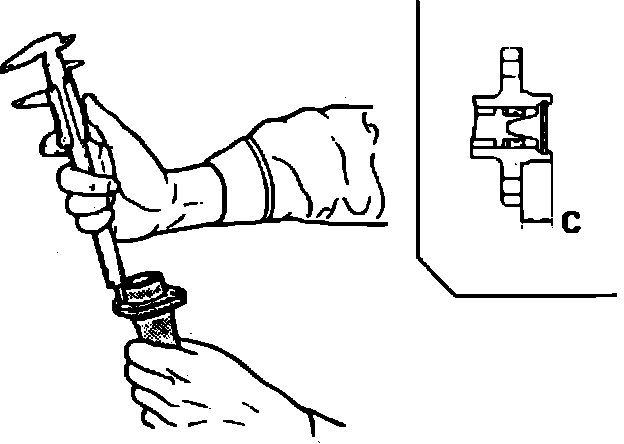

Fig. 6 Location Of Measurement ``C'':

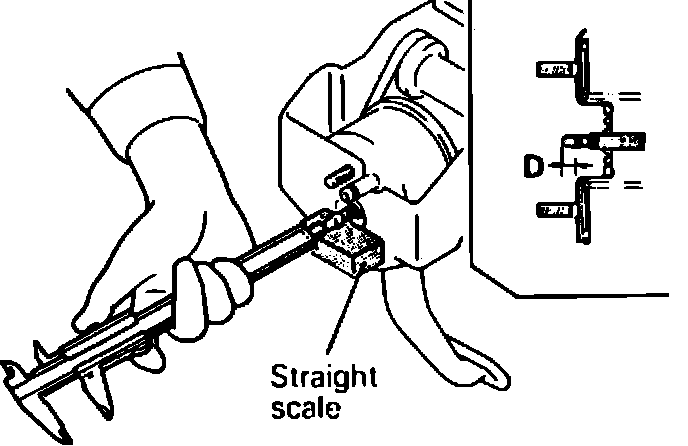

Fig. 7 Location Of Measurement ``D'':

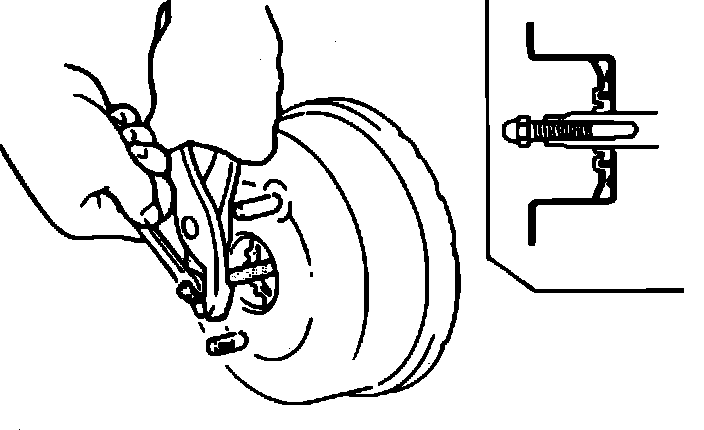

Fig. 8 Adjusting Booster Pushrod:

1. Measure and record dimensions B, C and D.
2. Using measured values obtained in step one, add measurements C and D, then subtract that measurement from measurement B, this will give you dimension A. Dimension A should be between 0.0082-0.0181 inches.
3. If clearance is not within specification, adjust the pushrod length by turning the adjustable end of pushrod. Improper clearance may cause excessive clutch drag.
