AWD

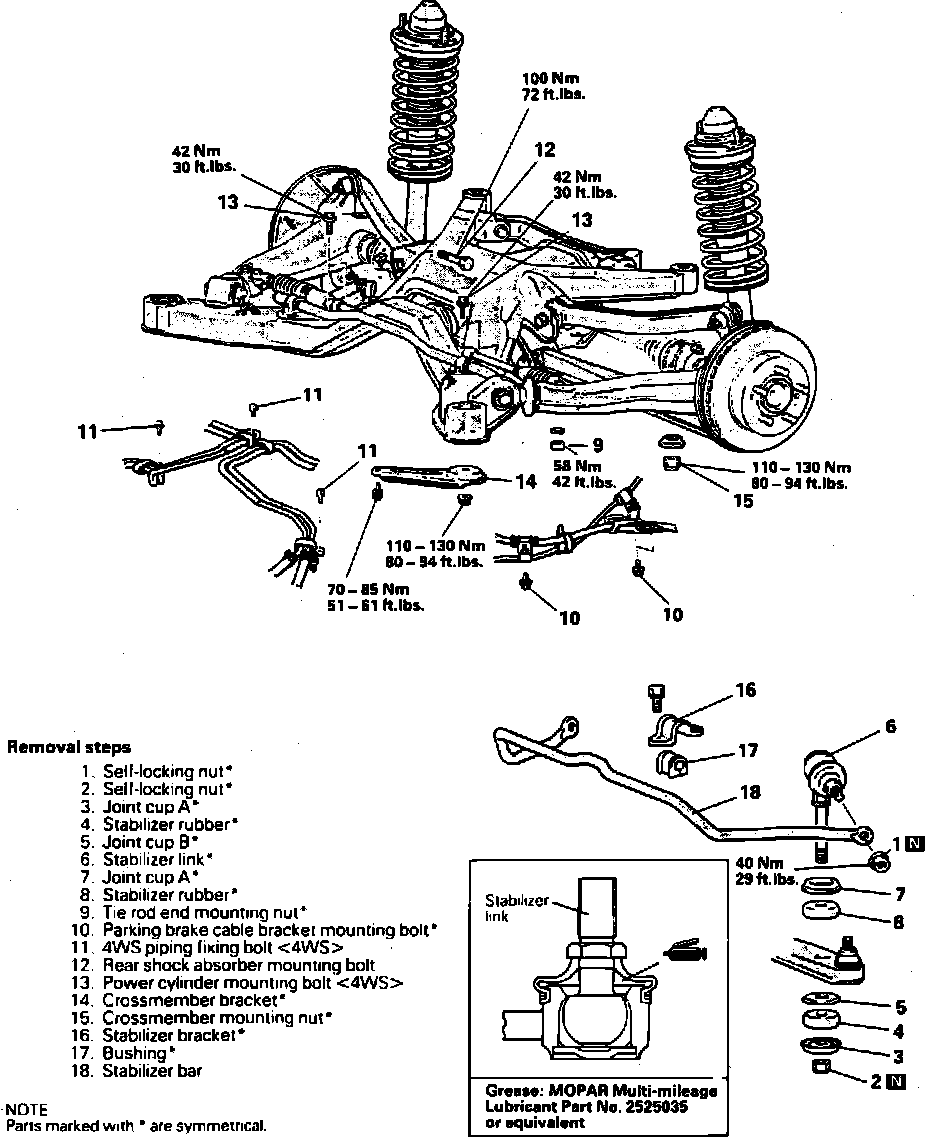

Fig. 12 Stabilizer Bar Assembly. AWD:

1. Remove stabilizer bar as shown, noting the following:
a. Using suitable jack, support rear suspension assembly, then remove crossmember bracket and attaching nut.
b. Lower suitable jack, to gain access between rear suspension and body, then using a suitable tool, remove stabilizer bar.
2. Reverse procedure to install, noting the following:
a. Hold stabilizer link ball studs with suitable wrench, ensure protrusion of stabilizer link is within 0.197 to 0.276 inch, install self-locking nut.
