Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Steering Column
>>
Service and Repair
>>
Steering Column Removal and Installation
Steering Column Removal and Installation

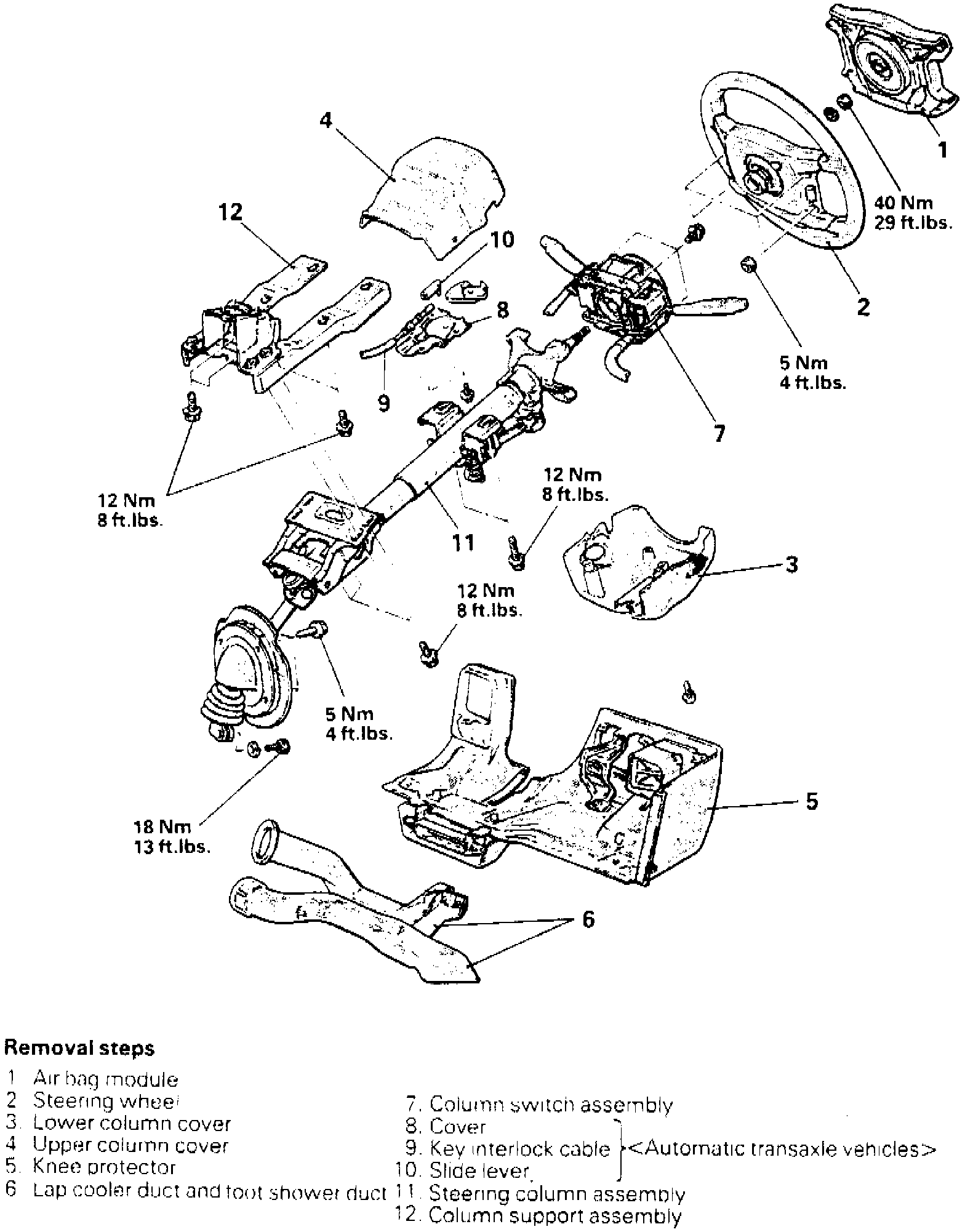

Fig.13 Exploded View Of Steering Column Assembly:
1.
Remove air bag module as outlined under "Passive Restraint Systems."
2.
Replace the
steering column
in numbered sequence shown.
