Column Switch & Clockspring Assembly Installation

Column Switch And Clock Spring Assembly Installation:

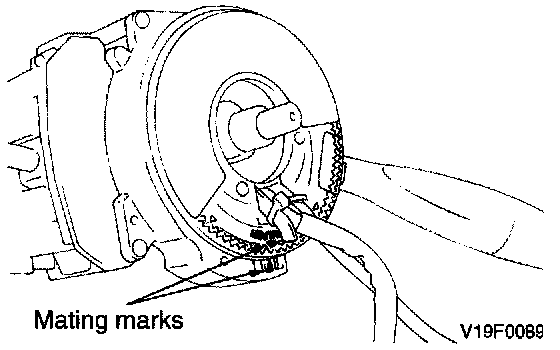

Line up the "NEUTRAL" mark of the clockspring with the mating mark to center the clockspring.

CAUTION: If the clockspring is not centered, problems such as intermediate failure of the steering wheel to turn, broken ribbon cable in the clockspring, or the like could occur. As a result, they might hinder proper operation of the SRS, resulting in serious injury.
