Power Steering Valve: Service and Repair

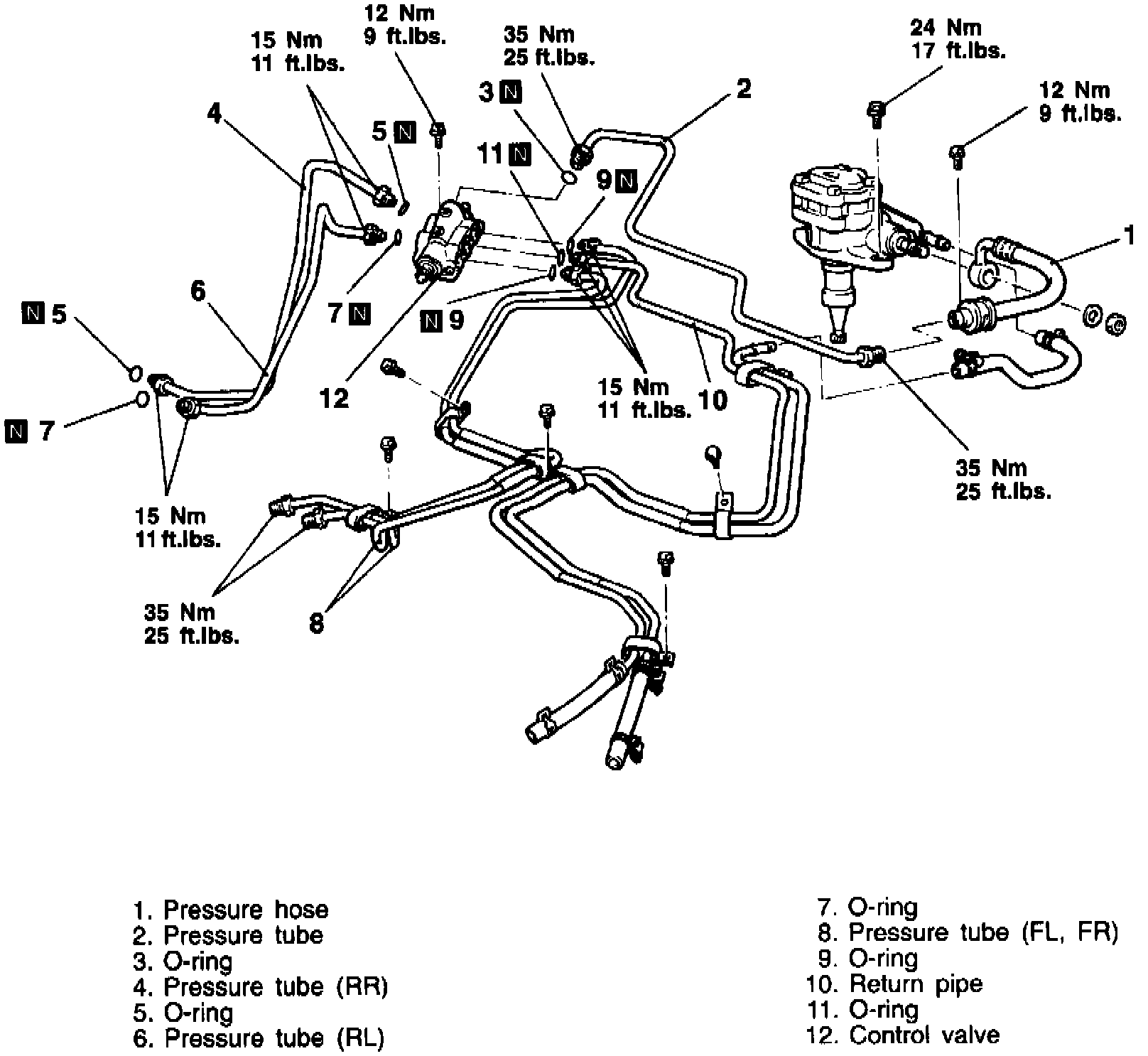

Fig.8 Rear Control Valve Replacement:

1. Drain power steering fluid from system
2. Remove rear suspension assembly. Refer to "Rear Suspension" section.
3. Remove pressure hose (1), then pressure tube (2) and O-ring (3).
4. Remove right-hand rear pressure tube (4) and O-ring (5).
5. Remove lefthand rear pressure tube (6) and O-ring (7).
6. Remove front left-hand and front right-hand pressure tubes (8) and O-ring (9).
7. Remove return pipe (10) and O-ring (11).

Fig.8 Rear Control Valve Replacement:

8. Remove control valve (12).
9. Reverse procedure to install, noting the following:
a. Reassemble rear suspension assembly.
b. Refill and bleed system.
c. Inspect four-wheel steering system operation.
