Brush Holder: Testing and Inspection

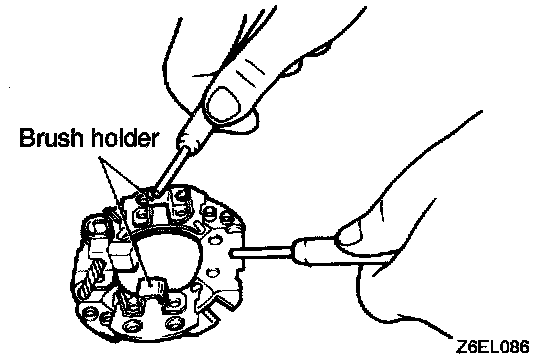

Brush Holder:
Check for continuity between
brush holder
plate and brush holder.
The normal condition is non-continuity.
