Disassembly and Reassembly Steps

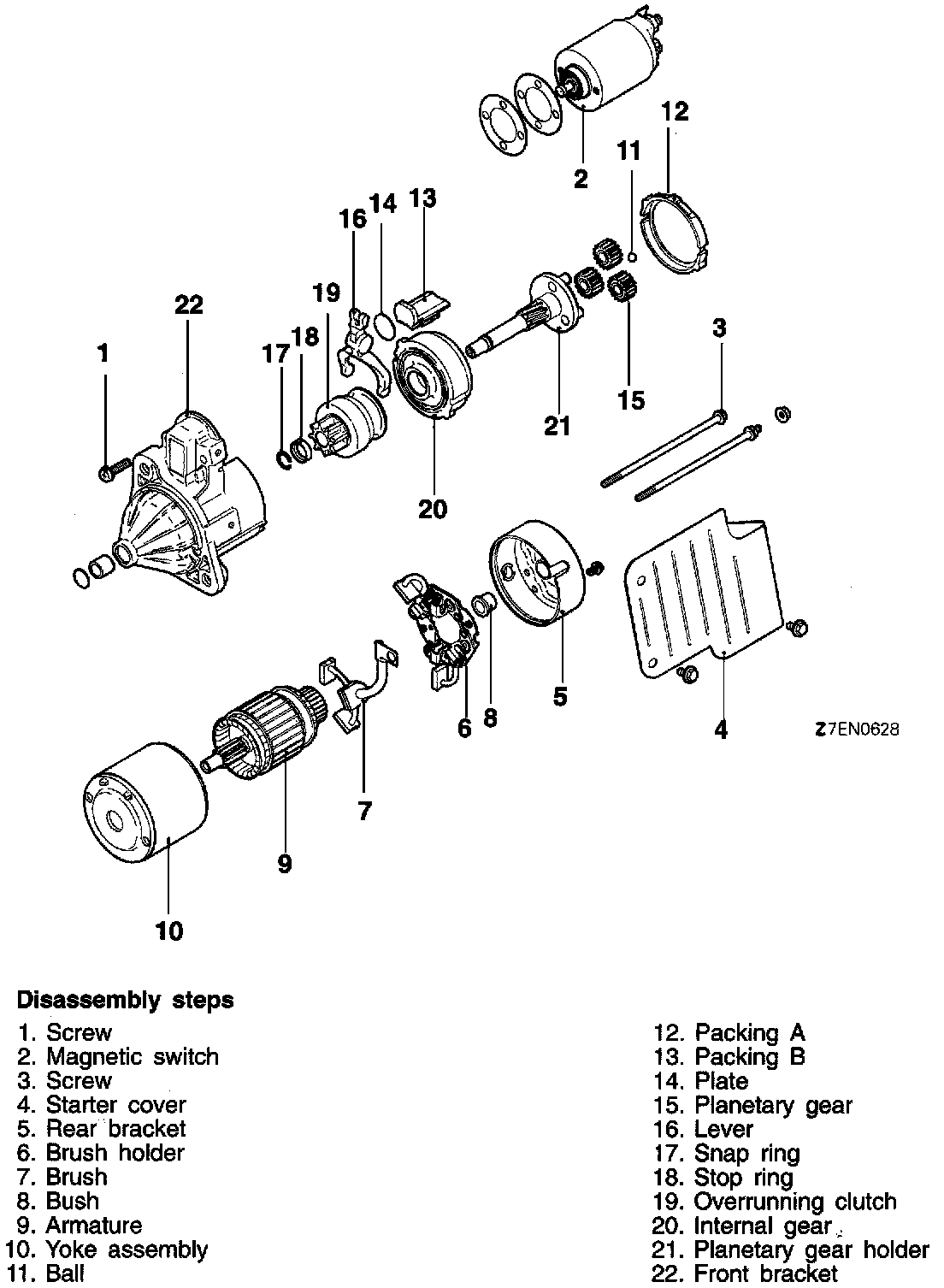

Starter Motor - Disassembly And Reassembly:

REMOVE
1. Screw
2. Magnetic switch
3. Screw
4. Starter cover
5. Rear bracket
6. Brush holder
7. Brush
8. Bush
9. Armature
10. Yoke Assembly
11. Ball
12. Packing A
13. Packing B
14. Plate
15. Planetary gear
16. Lever
17. Snap ring
18. Stop ring
19. Overrunning clutch
20. Internal gear
21. Planetary gear holder
22. Front bracket


INSTALL
1. Front bracket
2. Planetary gear holder
3. Internal gear
4. Overrunning clutch
5. Stop ring
6. Snap ring
7. Lever
8. Planetary gear
9. Plate
10. Packing B
11. Packing A
12. Ball
13. Yoke Assembly
14. Armature
15. Bush
16. Brush
17. Brush holder
18. Rear bracket
19. Starter cover
20. Screw
21. Magnetic switch
22. Screw
