Power and Ground Distribution: Description and Operation

ETACS Power Supply and Ground Circuit

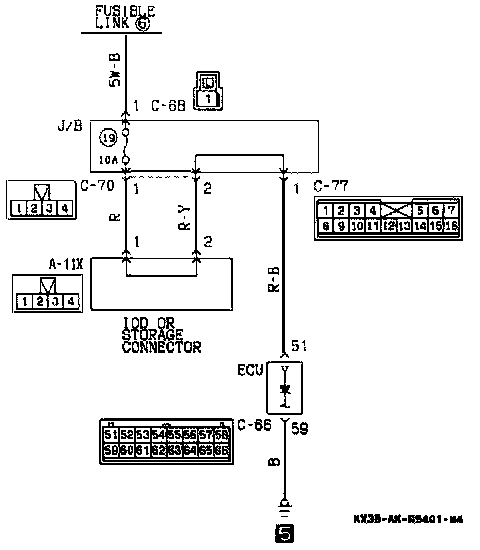

ETACS Power-Supply And Ground Circuits:

ETACS Power-Supply And Ground Circuits Continuity Table:

The battery supplies a stabilized 5 V power supply to the ECU, via the constant-voltage circuit and terminal 51 (which is directly connected to the battery).

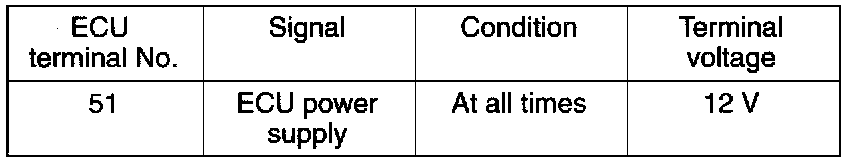

ECU terminal voltage (Connection condition of the ECU connector).
