Standard Waveform Observation Conditions

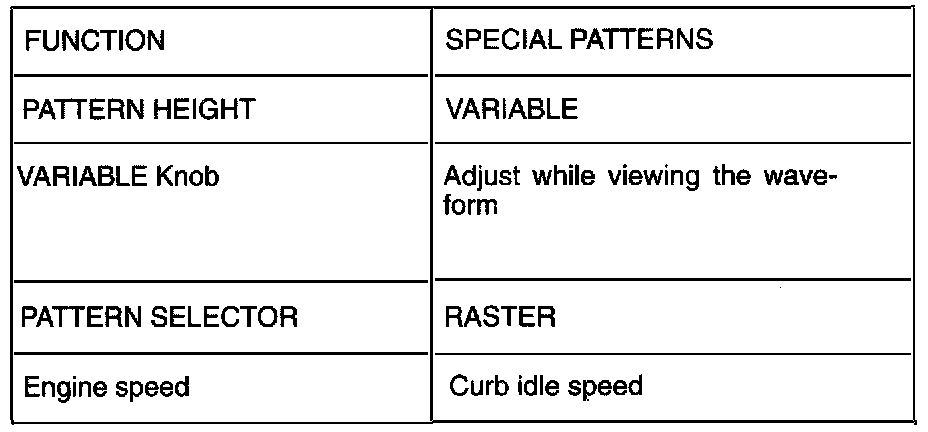

Standard Waveform - Observation Conditions:

NOTE: Furthermore, the voltage wave-form of the generator B terminal can undulate as shown at left. This wave-form is produced when the regulator operates according to fluctuations in the generator load (current), and is normal for the generator.
