Abnormal Waveforms Examples

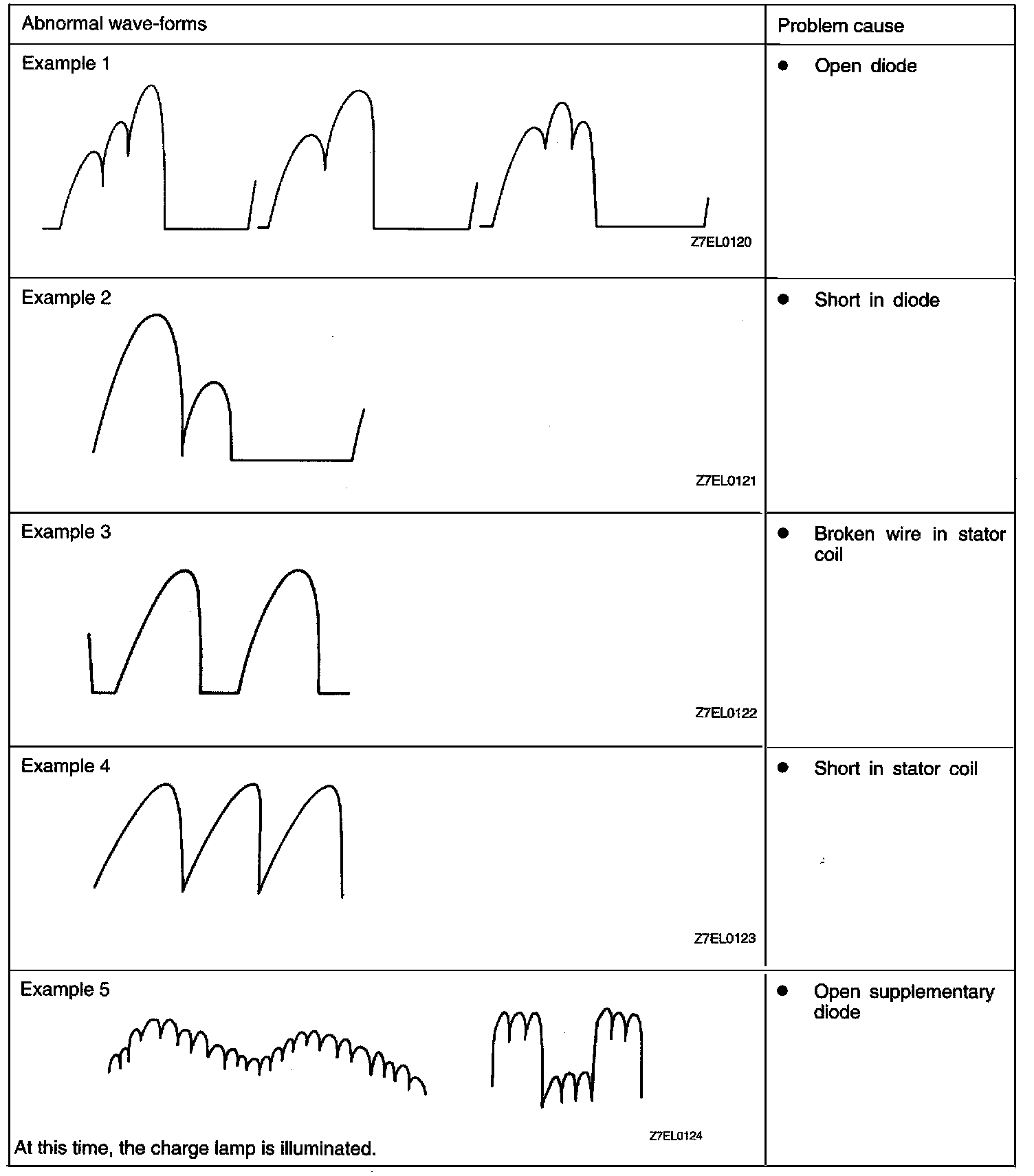

Abnormal Waveform Examples:

NOTE:
1. The size of the wave-form patterns differs largely depending on the adjustment of the variable knob on the analyzer.
2. Identification of abnormal wave-forms is easier when there is a large output current (regulator is not operating). (Wave-forms can be observed when the headlamps are illuminated.)
3. Check the conditions of the charge lamp (illuminated/not illuminated) also, and carry out a total check.
