Stator: Service and Repair

Stator/Regulator and Brush Holder Removal

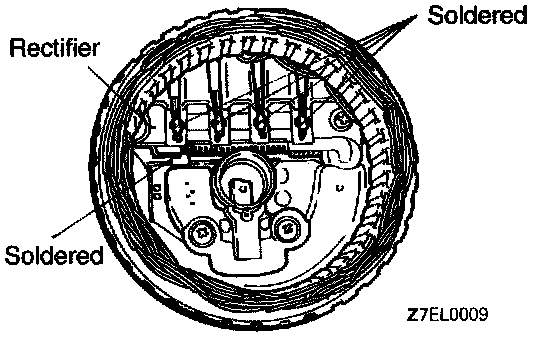

Stator/Regulator And Brush Holder Removal:

1. When removing the stator, unsolder stator lead wire from the main diode of the rectifier.
2. When removing the brush holder, unsolder it from the rectifier

CAUTION:
1. When soldering or unsoldering, be careful to make sure that heat of soldering iron is not transmitted to diodes for a long period. Finish soldering or unsoldering in as short a time as possible.
2. Be careful that no undue force is exerted to leads of diodes.
