Generator Removal

Generator Removal:

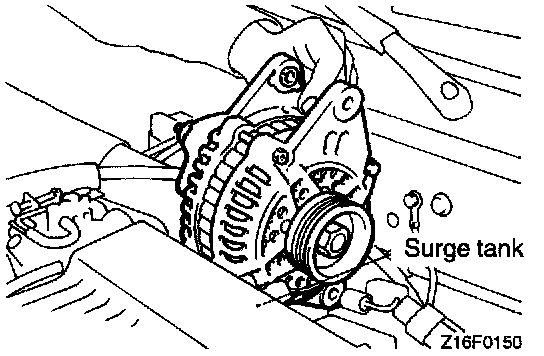

Take out the generator from behind the surge tank at the center of the vehicle.
