Tune-Up Specifications

Engine
Liter 3.0L
VIN Code K

Spark Plug Gap, Inch 0.041

Fig. B:

Firing Order [02] As Shown

Ignition Timing @ BTDC
Man. Trans. [01] 5
Auto. Trans. [01] 5

Timing Mark [07]

Curb Idle Speed, RPM
Man. Trans. 700
Auto. Trans. 700D

Fast Idle Speed, RPM
Man. Trans. [08]
Auto Trans. --

Fuel Pump Pressure, psi [03] 34
Valve Clearance, Inch [09]

BTDC -- Before Top Dead Center
D -- Drive

Fig. D:

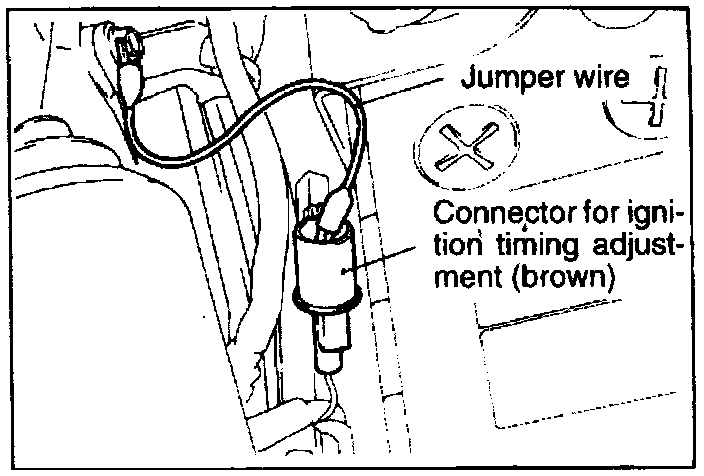

[01] -- With ignition timing adjusting terminal grounded. Location shown.

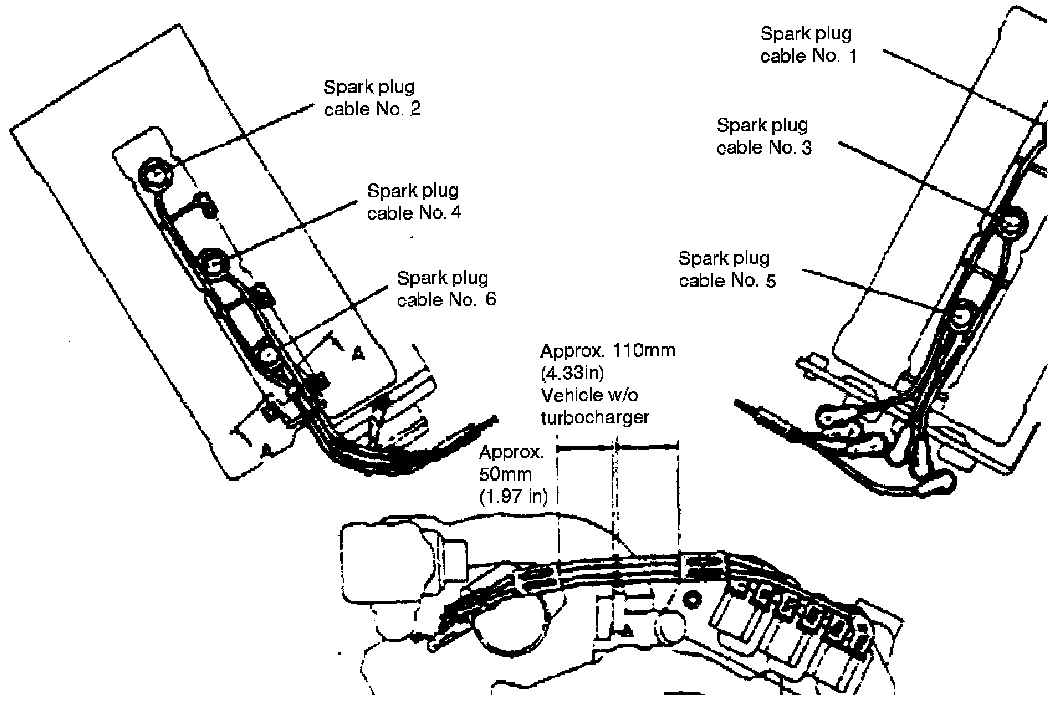

[02] -- Before disconnecting wires from distributor cap or coil unit, determine location of No. 1 wire, as position may have been altered from that shown at the end of this chart. Firing order: 1-2-3-4-5-6.
[03] -- From luggage compartment, remove fuel gauge cover. Disconnect fuel pump electrical connector, then start engine & operate until fuel supply is depleted. Place ignition switch in Off position. Disconnect high pressure fuel hose at delivery pipe side. Connect a suitable fuel pressure test gauge between hose & delivery pipe. Start engine & inspect fuel pressure @ idle speed.
[07] -- Equipped w/crankshaft position sensor.
[08] -- Controlled by idle speed control system.
[09] -- These engines are equipped with hydraulic lifters. No periodic adjustment is required.
