Wiper Switch Test

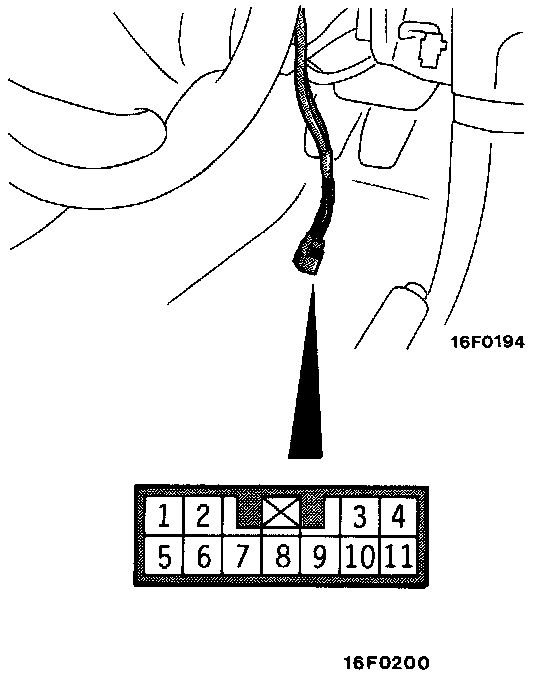

Inspection Of Wiper And Washer Switch:

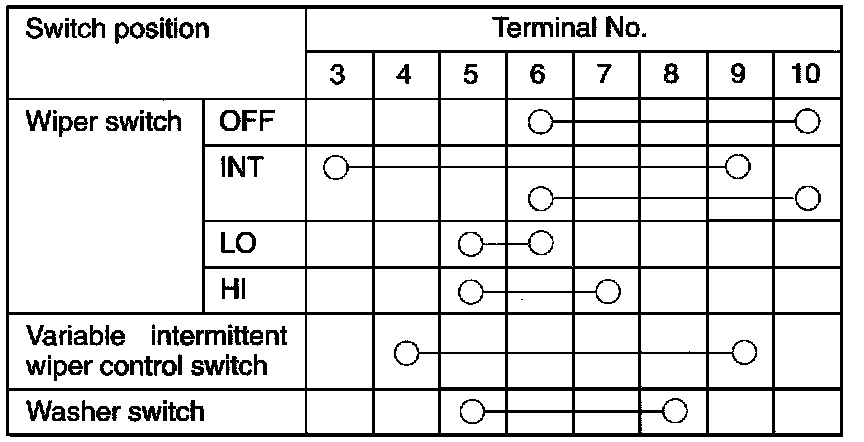

Wiper And Washer Switch Continuity Table:





Operate the switch to check for continuity between the terminals.
