Rear Wiper/Washer Switch Continuity Test

Wiper Washer Switch Inspection: Step (1):

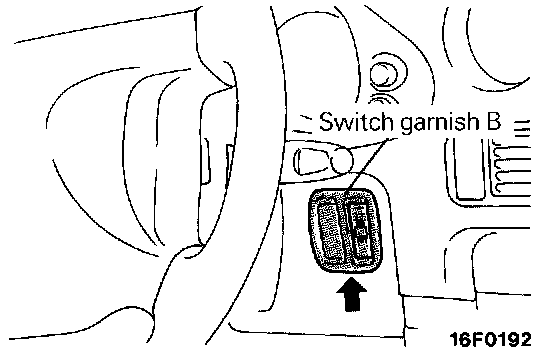

1. Remove switch garnish B from the knee protection

Wiper Washer Switch Inspection: Step (2):

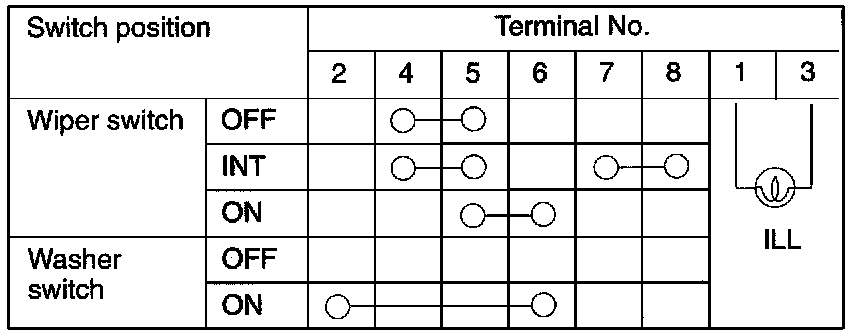

Wiper Washer Switch Continuity Table:

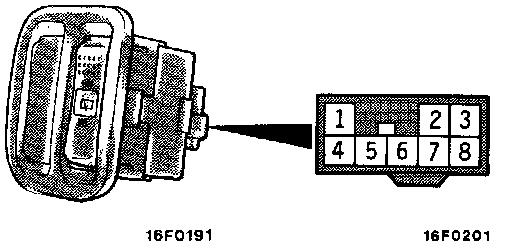

2. Operate the switch to check for continuity between the terminals.
