Seat Belt Buckle Switch: Testing and Inspection

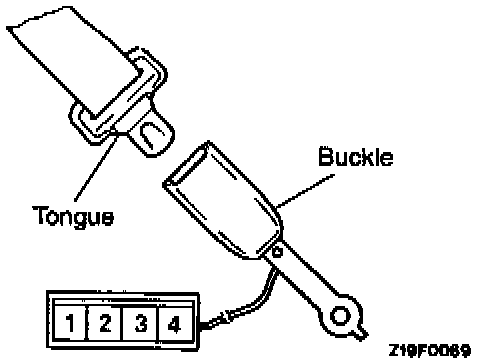

1. Disconnect the buckle switch connector.

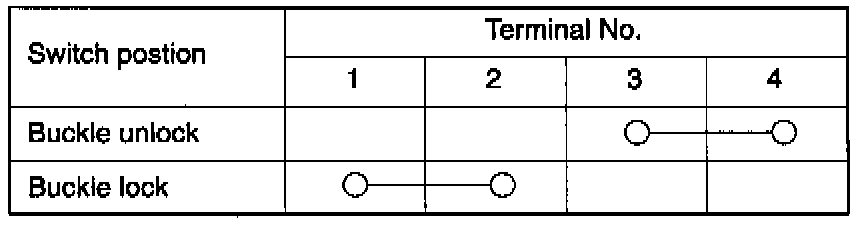

2. Check the continuity between the terminals as indicated in the chart below.
