Steering Lock Cylinder Removal

Steering Lock Cylinder Removal:

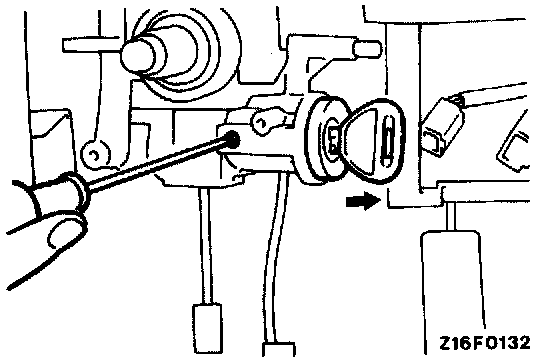

1. Insert the ignition key into the steering lock cylinder and place the key in the ACC position.
2. Press the lock pin down with a Phillips head screwdriver (small-size one) to remove the steering lock cylinder.
