Power Seat Switch: Testing and Inspection

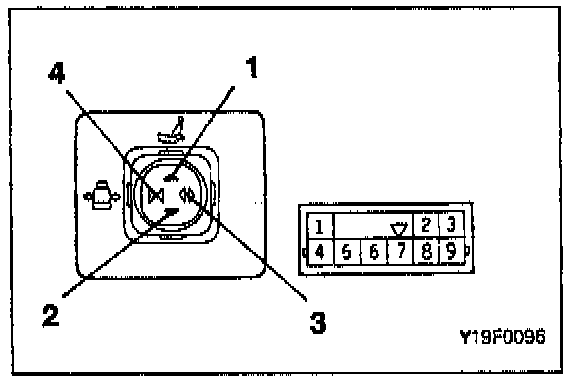

POWER SEAT SWITCH A INSPECTION

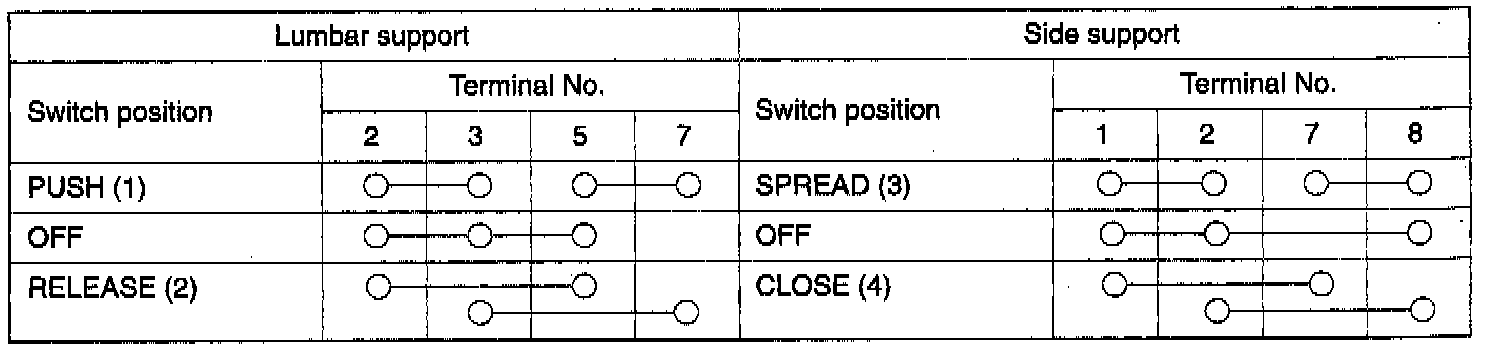

Operate the power seat switch A to check for continuity according to the chart below.
