Hood Sensor/Switch (For Alarm): Description and Operation

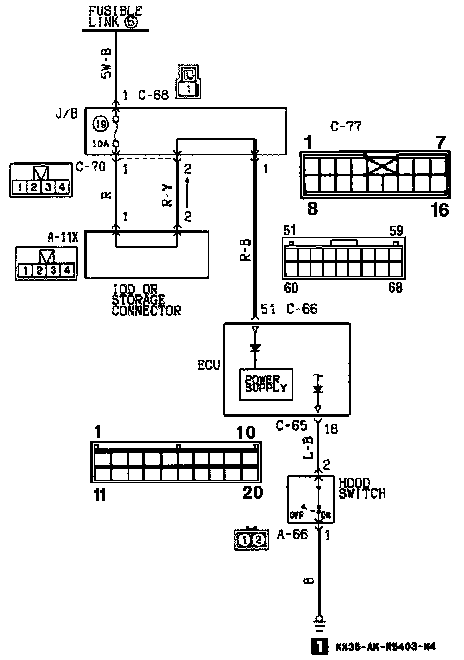

Hood Switch Input Circuit:

Hood Switch Input Circuit Continuity Table:

When the hood is closed (the hood switch is switched OFF), HIGH-level signals are sent to the ECU:
When the hood is opened (the hood switch is switched ON), LOW-level signals are sent to the ECU.

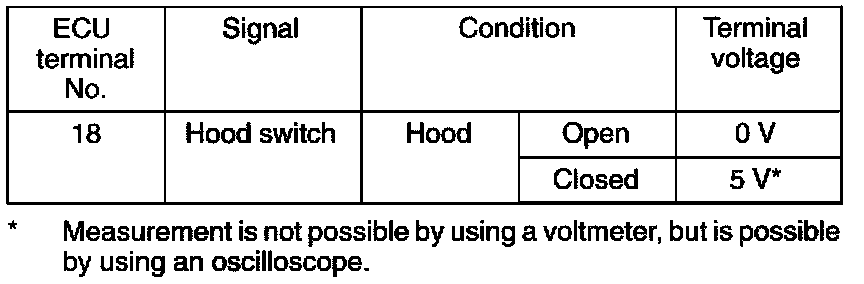

EOU terminal voltage (Connection condition of the ECU connector).
