Seat Belt: Service and Repair
CAUTION: When removing and installing the floor console assembly, don't allow any impact or shock to the SRS diagnosis unit.

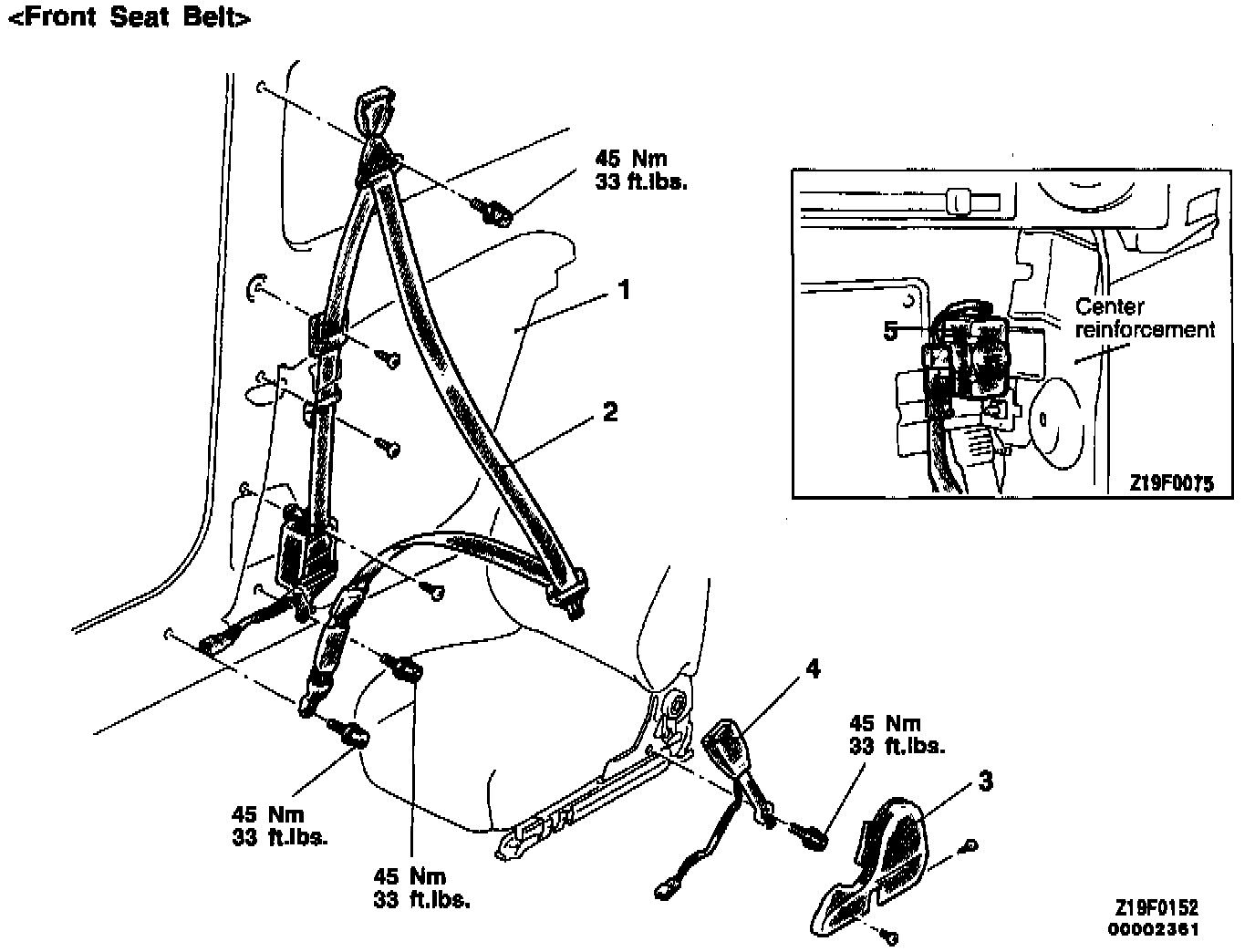

FRONT SEAT BELTS REMOVAL
Outer Seat Belt Removal Steps
1. Quarter trim
2. Outer seat belt
Inner Seat Belt Removal Steps
- Floor console assembly
3. Shield cover
4. Inner seat belt
Buzzer removal steps
- Floor console assembly
5. Buzzer

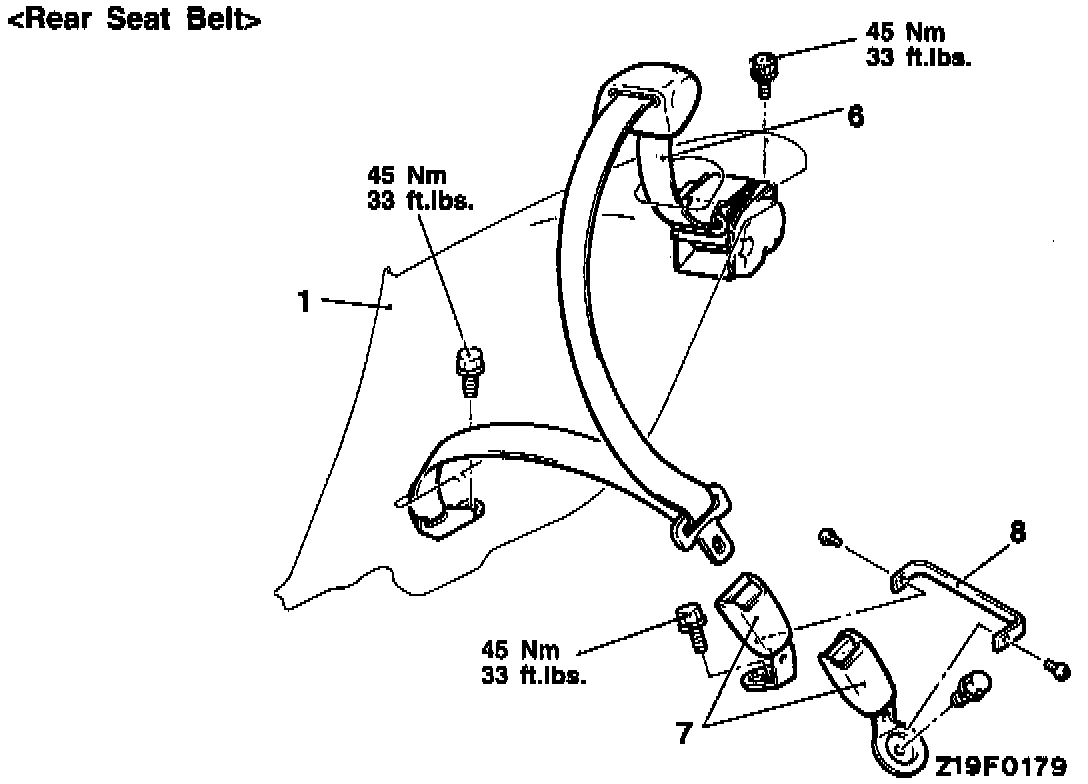

REAR SEAT BELTS
Outer Seat Belt Removal Steps
1. Quarter trim
6. Outer seat belt
Inner Seat Belt Removal Steps
- Rear seat cushion
7. Inner seat belt
8. Inner seat belt bracket
INSTALLATION SERVICE POINTS

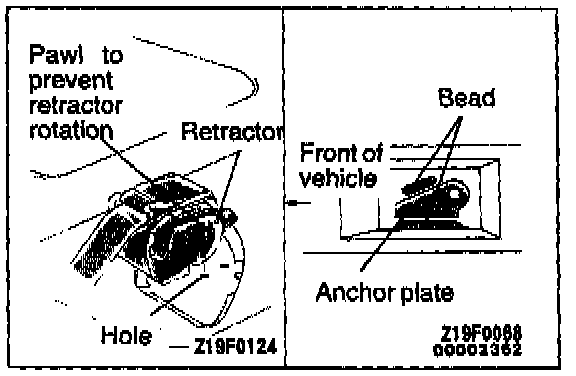

Outer Seat Belt
1. Positively insert the pawl to prevent the retractor from rotating in the hole provided on the body.
2. Install the anchor plate along the bead of the body.

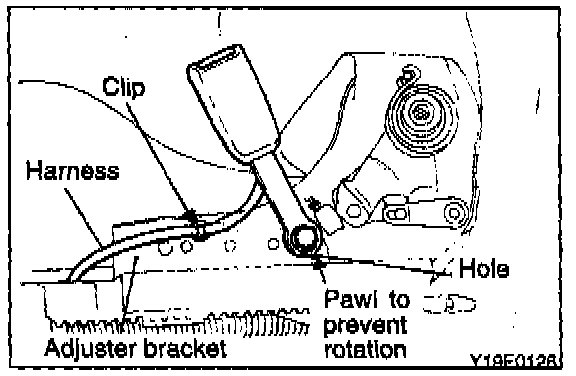

Inner Seat Belt Installation
1. Route the seat belt switch connector harness on the adjuster bracket.
2. Use clips to secure the harness to the adjuster bracket.
3. Fit the locking claw of the inner seat belt positively in the locking hole provided in the seat bracket.
Outer Seat Belt
1. Positively insert the paw to prevent the retractor from rotating in the hole provided on the body.

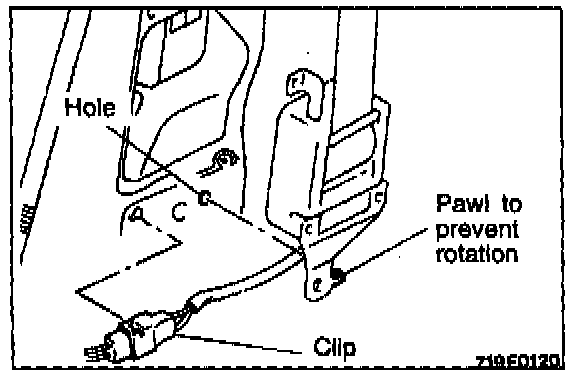

2. After connecting the seat belt harness with the body harness, insert the clip on the connector into the hole on the body panel.

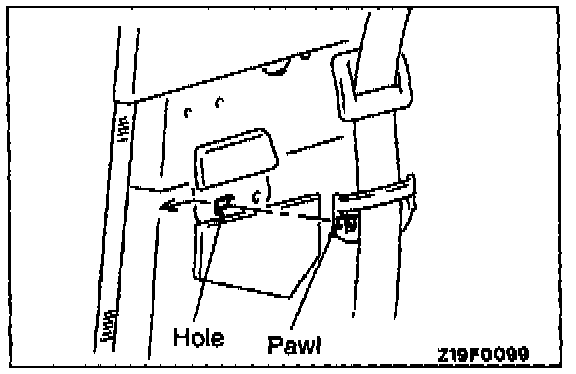

3. Insert the pawl of the belt guide in the hole provided on the body.
4. When the final anchor of the front seat belt is installed, twist the belt through 180° at a section between the sash guide and the final anchor to direct the tip of the tongue toward the front of the vehicle.
