Clockspring Assembly / Spiral Cable: Service and Repair

1. Ensure front wheels are in straight ahead position.
2. Disarm air bag as described under Air Bag System Disarming & Arming at Air Bags (SRS)/ Service and Repair.
3. Remove air bag module as described under Driver's Air Bag Module Replacement.

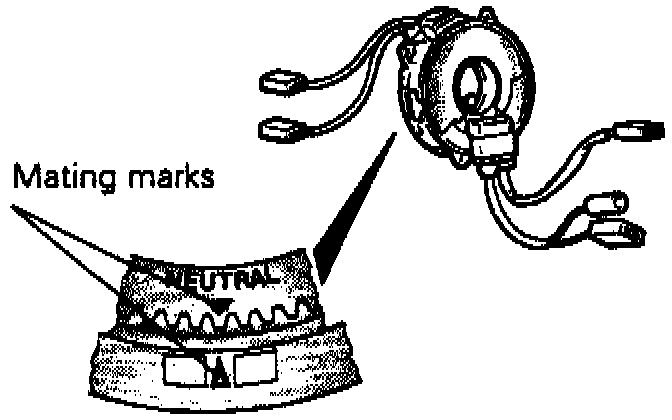

Fig. 21 Air Bag Module & Clockspring Removal:

4. Remove steering wheel, knee protector, column cover and floor console.
5. Remove clockspring and SDU connection, then wiring harness.
6. Remove clockspring.
7. Reverse procedure to install.
