Wiper Relay Test

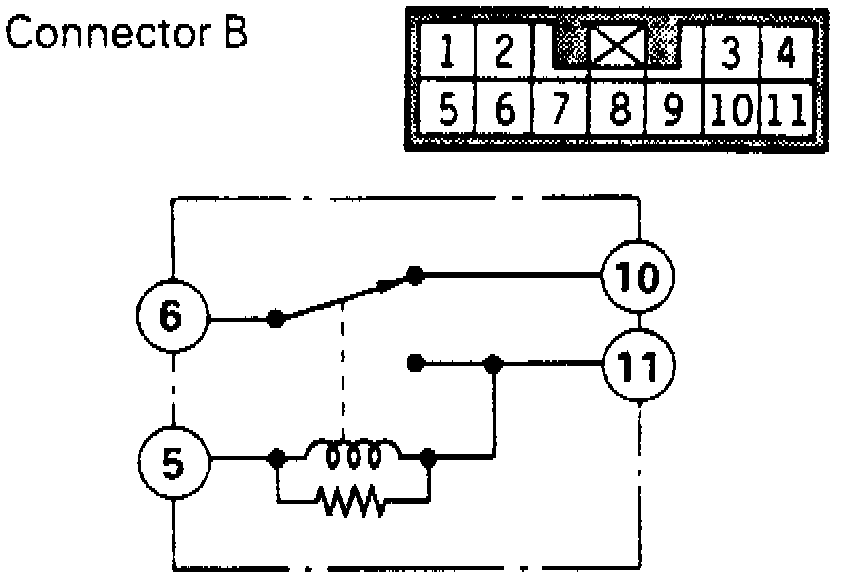

Fig.72 Intermittent Wiper Relay Inspection:

1. Ensure continuity exists between terminals 5 and 11 and between terminals 6 and 10 and no continuity exists between terminals 6 and 11.
2. Connect positive terminal of battery voltage to terminal 5 and negative terminal to terminal 11 to ensure battery voltage is available at terminal 6.
